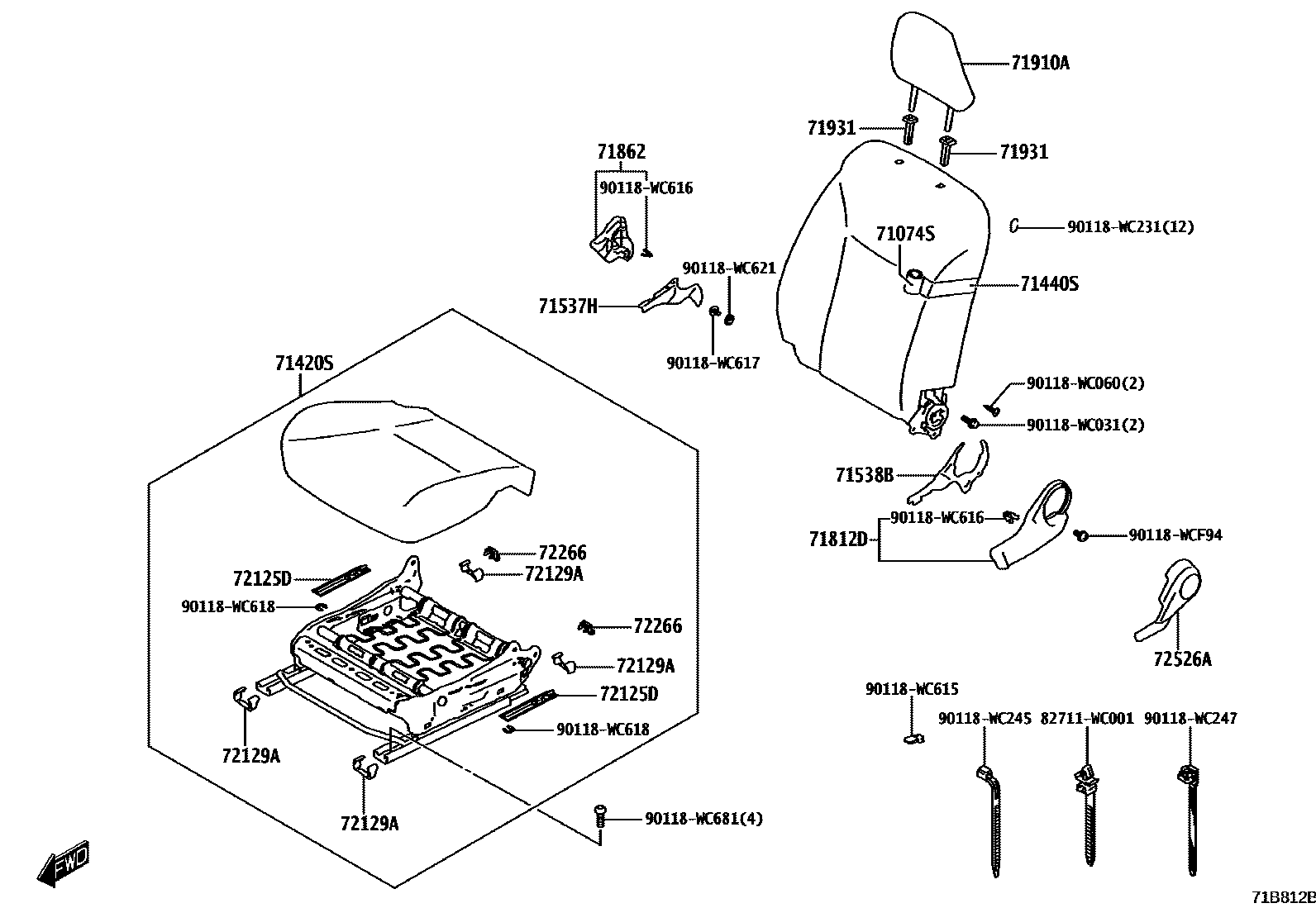

FRONT SEAT & SEAT TRACK

0001 1LH SEAT 0002 1RH SEAT

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-WC002iK12#201910

main71074-WC001iK12M..5F; K12M..CVT..V; K12M..G; K12N201904-201909

POS.1; POS.3; POS.4; POS.5

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-WC012iK12#201910

main71420-WC011iK12M..5F; K12M..CVT..V; K12M..G; K12N201904-201909

POS.1; POS.3; POS.4; POS.5

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71640-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71876-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71876-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

71910AHEADREST ASSY, FRONT SEAT

main71910-WC002×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

71931SUPPORT, FRONT SEAT HEADREST

main71930-WC001×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

W(LOCK),POS.1; W(LOCK),POS.3; W(LOCK),POS.4; W(LOCK),POS.5

main71931-WC001×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

W/O(LOCK),POS.1; W/O(LOCK),POS.3; W/O(LOCK),POS.4; W/O(LOCK),POS.5

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-WC002×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-WC001×4iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2

main72129-WC001×4iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

72266COVER, SEAT TRACK UPPER RAIL, LH

main72125-WC001×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

82711WC001WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-WC001

90118WC031

main90118-WC031

90118WC060

main90118-WC060

90118WC231

main90118-WC231

90118WC245

main90118-WC245

90118WC247

main90118-WC247

90118WC615

main90118-WC615

90118WC616

main90118-WC616

90118WC617

main90118-WC617

90118WC618

main90118-WC618

90118WC621

main90118-WC621

90118WC681

main90118-WC681

90118WCF94

main90118-WCF94

27 parts on this diagram · 2 diagrams in section
