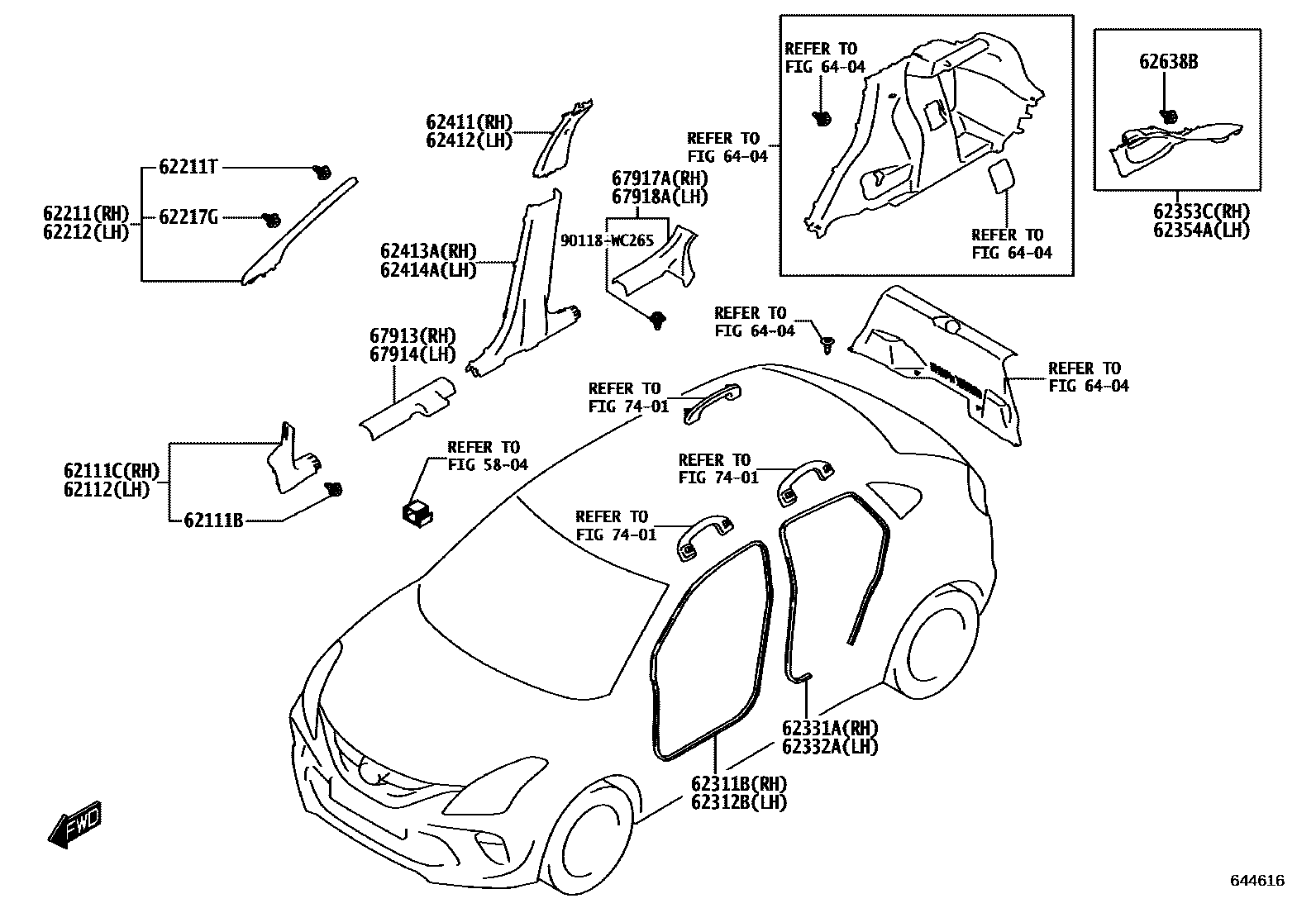

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

5804MAT & CARPET

→ Go to FIG 58-04

62111BCLIP(FOR COWL SIDE TRIM)

main90118-WC265iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62111CBOARD, COWL SIDE TRIM, RH

main62111-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62112BOARD, COWL SIDE TRIM, LH

main62112-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62211GARNISH, FRONT PILLAR, RH

main62211-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90118-WC265×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62212GARNISH, FRONT PILLAR, LH

main62212-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62217GCLIP, FRONT PILLAR GARNISH

main90118-WC250iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62311-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62331-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62353CTRIM, QUARTER WINDOW INSIDE, RH

main62471-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62354ATRIM, QUARTER WINDOW INSIDE, LH

main62472-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62411GARNISH, CENTER PILLAR, RH

main62411-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62412GARNISH, CENTER PILLAR, LH

main62412-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62638BCLIP

main90118-WC265×6iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

67913PLATE, FRONT DOOR SCUFF, RH

main67913-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

67914PLATE, FRONT DOOR SCUFF, LH

main67914-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

67917APLATE, REAR DOOR SCUFF, RH

main67917-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

67918APLATE, REAR DOOR SCUFF, LH

main67918-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

7401ARMREST & VISOR

→ Go to FIG 74-01

90118WC265

main90118-WC265

26 parts on this diagram · 1 diagram in section
