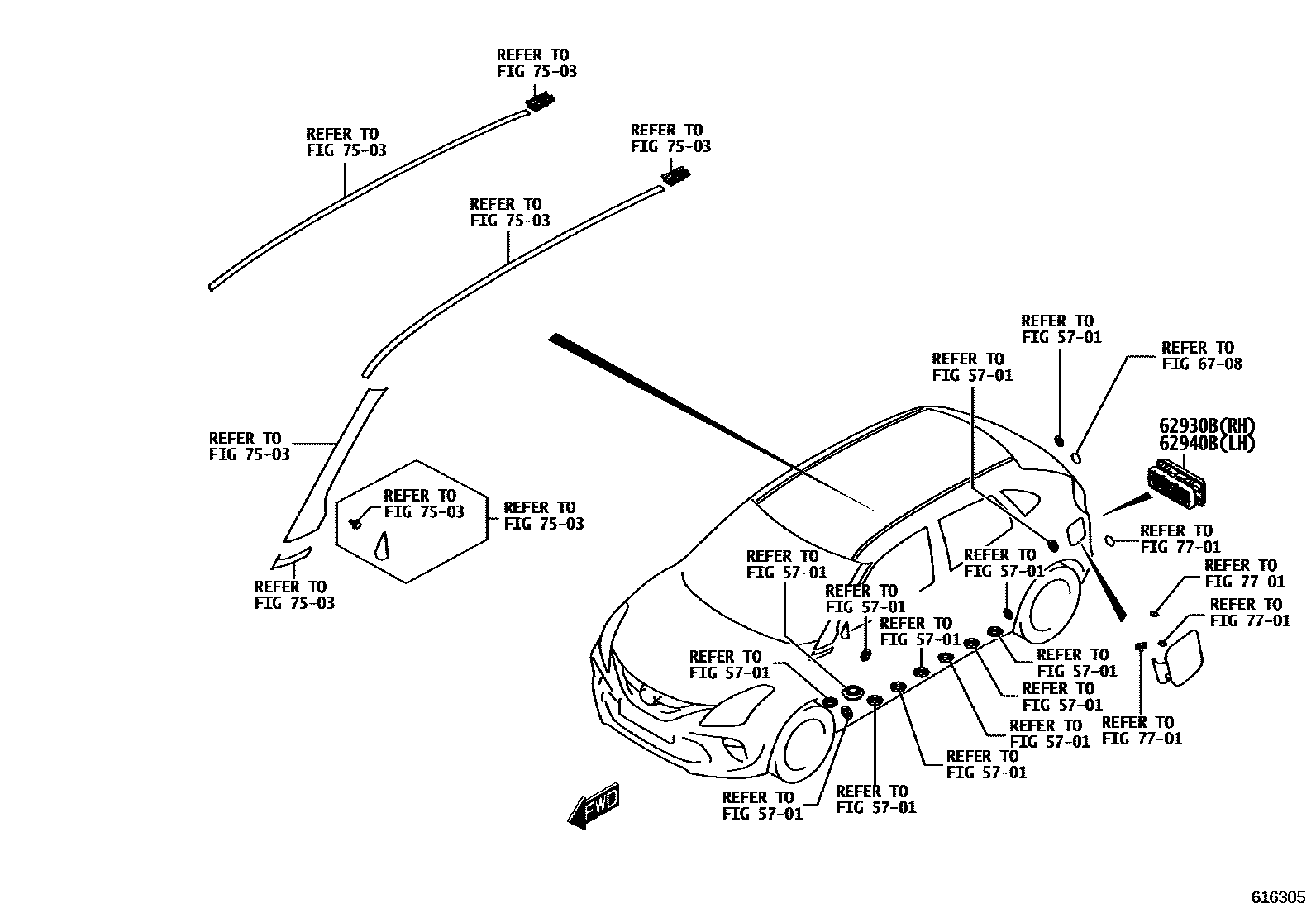

ROOF SIDE VENTILATOR

5701HOLE PLUG

→ Go to FIG 57-01

62930BDUCT ASSY, QUARTER VENT, RH

main62940-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

62940BDUCT ASSY, QUARTER VENT, LH

main62940-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

7503SIDE MOULDING

→ Go to FIG 75-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

6 parts on this diagram · 1 diagram in section
