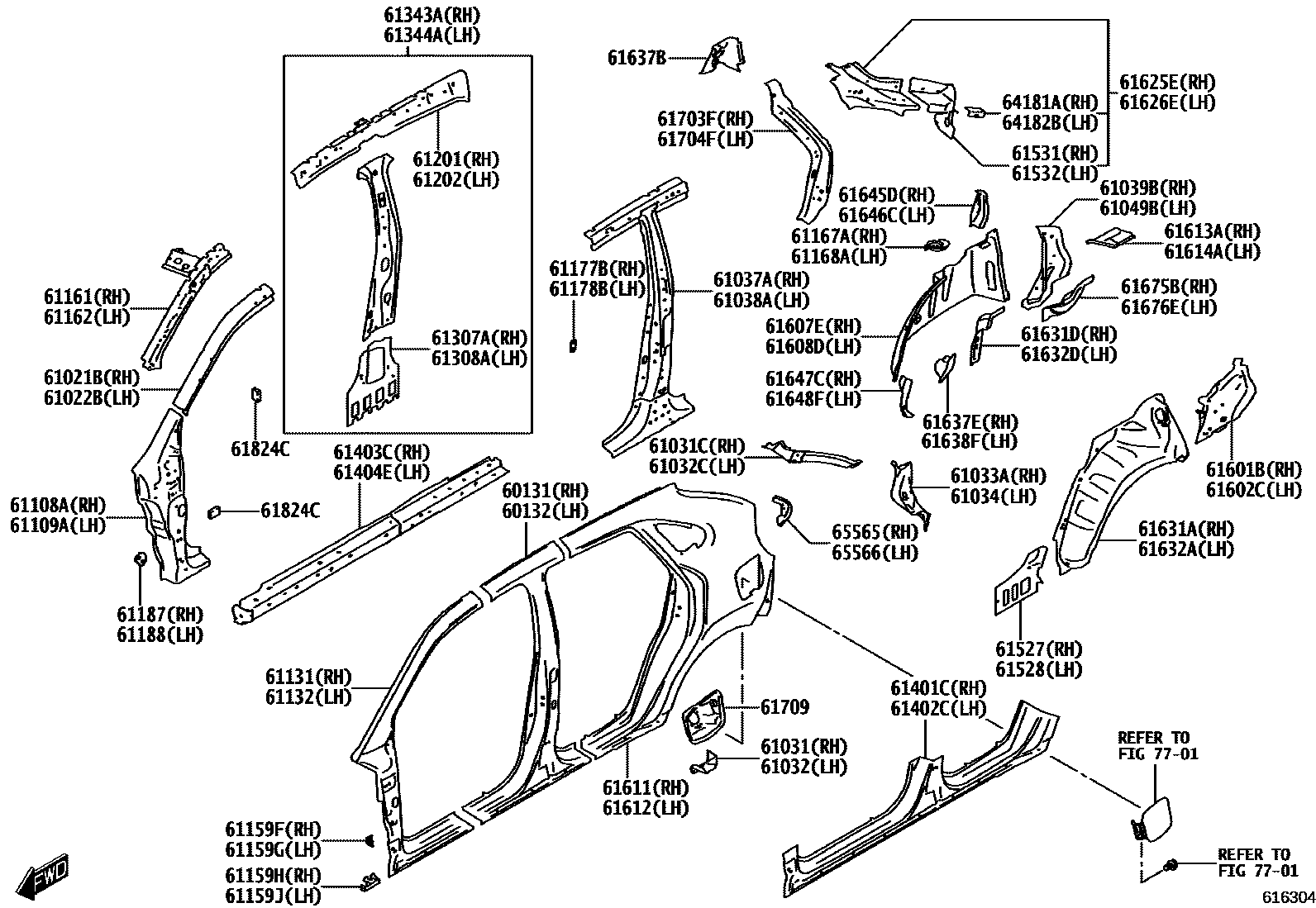

SIDE MEMBER

0001 1 0002 1

60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

main61111-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

60132PILLAR SUB-ASSY, CENTER BODY, NO.2 LH

main61112-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH

main61211-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61022BPILLAR SUB-ASSY, FRONT BODY, UPPER LH

main61212-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

main61847-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

main61625-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

main61848-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61032CEXTENSION SUB-ASSY, QUARTER PANEL, REAR LH

main61626-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

main61621-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61034REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

main62622-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61307-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61308-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61039BREINFORCE SUB-ASSY, REAR PILLAR, UPPER RH

main61735-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61049BREINFORCE SUB-ASSY, REAR PILLAR, UPPER LH

main61736-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61111-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61112-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61159FBRACKET, COWL SIDE PANEL TO FENDER APRON

main53821-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61159GBRACKET, COWL SIDE PANEL TO FENDER APRON, RH

main53821-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61159HBRACKET, COWL SIDE PANEL TO FENDER APRON, RH

main53837-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61159JBRACKET, COWL SIDE PANEL TO FENDER APRON, LH

main53838-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61161PILLAR, FRONT BODY, UPPER INNER RH

main61203-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61162PILLAR, FRONT BODY, UPPER INNER LH

main61204-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61167ASTIFFENER, SIDE PANEL, LOWER RH

main61671-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61168ASTIFFENER, SIDE PANEL, LOWER LH

main61671-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61177BBRACKET, DOOR CHECK ARM

main61371-WC001×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61178BBRACKET, DOOR CHECK ARM

main61371-WC001×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61153-WC001×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61153-WC001×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61211-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61212-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61307AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61323-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61308AREINFORCEMENT, CENTER BODY PILLAR, INNER LH

main61324-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61343APILLAR, CENTER BODY, INNER RH

main61301-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61344APILLAR, CENTER BODY, INNER LH

main61302-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61401CPANEL SUB-ASSY, ROCKER, OUTER RH

main61111-WC004iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61402CPANEL SUB-ASSY, ROCKER, OUTER LH

main61112-WC004iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61305-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61306-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH

main61641-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61528REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH

main61642-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61531PANEL, BACK CORNER, INNER RH

main61731-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61532PANEL, BACK CORNER, INNER LH

main61732-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61601BPANEL SUB-ASSY, QUARTER, RH

main61625-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61602CPANEL SUB-ASSY, QUARTER, LH

main61626-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61607EPANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61608DPANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61611PANEL, QUARTER, RH

main61111-WC003iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61612PANEL, QUARTER, LH

main61112-WC003iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61613AEXTENSION, QUARTER PANEL REAR, RH

main61635-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61614AEXTENSION, QUARTER PANEL, REAR LH

main61636-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61701-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61702-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61631DREINFORCEMENT, QUARTER WHEEL HOUSE, RH

main61647-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61632DREINFORCEMENT, QUARTER WHEEL HOUSE, LH

main61648-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61637BREINFORCEMENT, REAR PILLAR, INNER UPPER RH

main61711-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61637EBRACKET, QUARTER WHEEL HOUSE

main61691-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61638FBRACKET, QUARTER WHEEL HOUSE, LH

main61692-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61645DRETAINER, QUARTER, INNER

main61766-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61646CRETAINER, QUARTER, INNER

main61767-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61647CREINFORCEMENT, WHEEL HOUSE, RH

main61673-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61648FREINFORCEMENT, QUARTER PANEL, LOWER LH

main61674-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main61065-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61676EREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main61066-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61703FPANEL SUB-ASSY, QUARTER, INNER FRONT RH

main61703-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61704FPANEL SUB-ASSY, QUARTER, INNER FRONT LH

main61704-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61709BOX SUB-ASSY, FUEL INLET

main61725-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

61824CPAD, NOISE SHUTTER, NO.1

main90118-WC611×4iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

64181AREINFORCEMENT, REAR SEAT BELT ANCHOR, RH

main61768-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

64182BREINFORCEMENT, REAR SEAT BELT ANCHOR, LH

main61768-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

65565PATCH, SIDE PANEL REAR END, RH

main61613-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

65566PATCH, SIDE PANEL REAR END, LH

main61614-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

7701FUEL TANK & TUBE

→ Go to FIG 77-01

76 parts on this diagram · 2 diagrams in section
