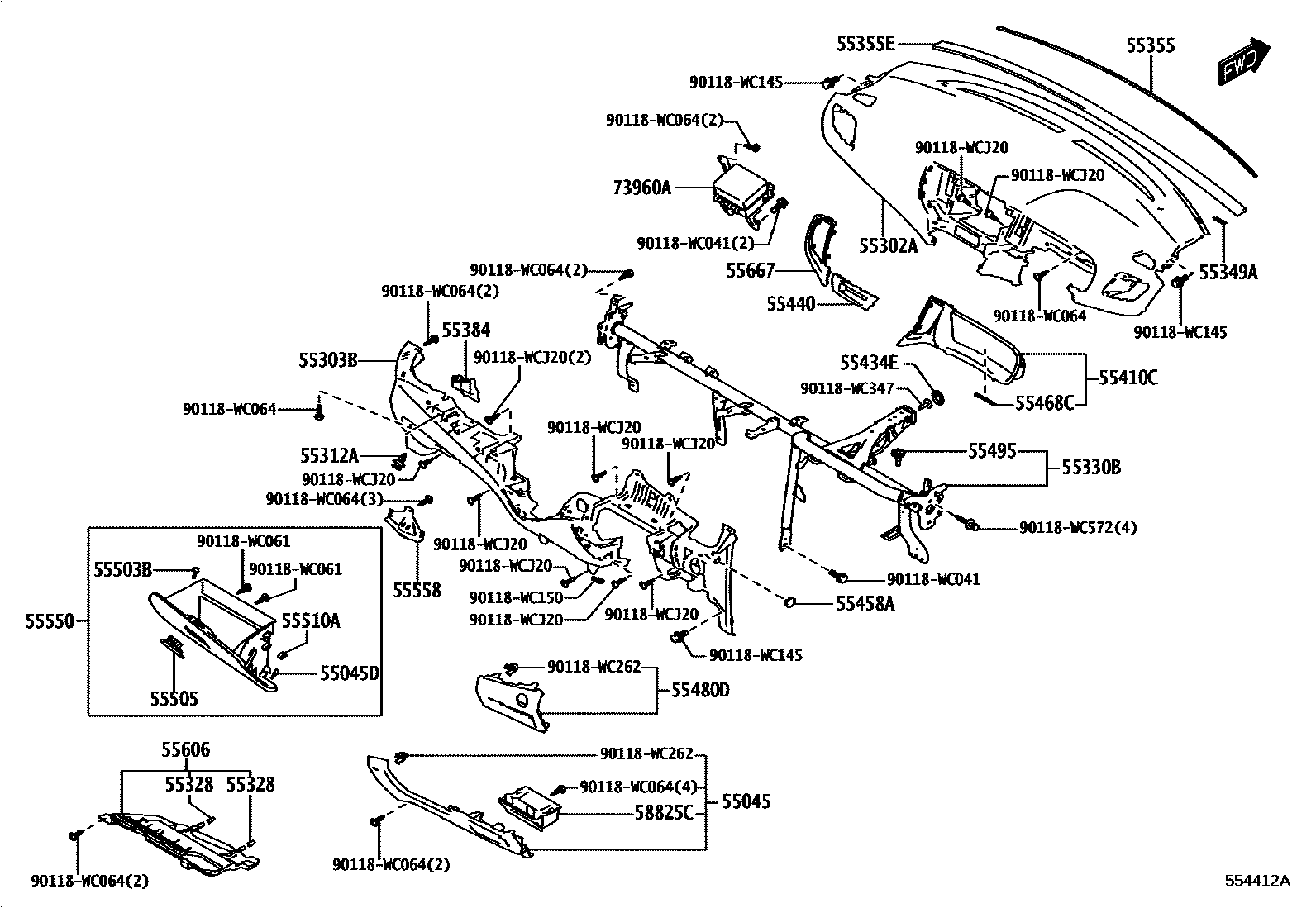

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55606-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55045DCUSHION, GLOVE COMPARTMENT

main55557-WC003×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55312ACLIP, INSTRUMENT PANEL

main90118-WC255iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55328PIN, INSTRUMENT PANEL, NO.1

main90118-WC571×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55349ACUSHION, INSTRUMENT PANEL

main55356-WC001×5iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55355ECUSHION, INSTRUMENT PANEL

main55355-WC002iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55384COVER, BASE SWITCH HOLE

main55459-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55434ECAP

main90118-WC203iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55440GARNISH, INSTRUMENT PANEL, CENTER

main55446-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55545-WC001×3iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55357-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55480DPANEL ASSY, INSTRUMENT PANEL FINISH, LWR

main55045-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55495CUSHION, INSTRUMENT PANEL REINFORCEMENT

main90118-WC220iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55503BCUSHION(FOR GLOVE COMPARTMENT)

main55557-WC002×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main55557-WC001×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55550DOOR ASSY, GLOVE COMPARTMENT

main55550-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55331-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55607-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

55667GARNISH, INSTRUMENT PANEL REGISTER BEZEL

main55420-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

58825CPOCKET, CONSOLE BOX

main55441-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-WC011iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

90118WC041

main90118-WC041

90118WC061

main90118-WC061

90118WC064

main90118-WC064

90118WC145

main90118-WC145

90118WC150

main90118-WC150

90118WC262

main90118-WC262

90118WC347

main90118-WC347

90118WC572

main90118-WC572

90118WCJ20

main90118-WCJ20

36 parts on this diagram · 3 diagrams in section
