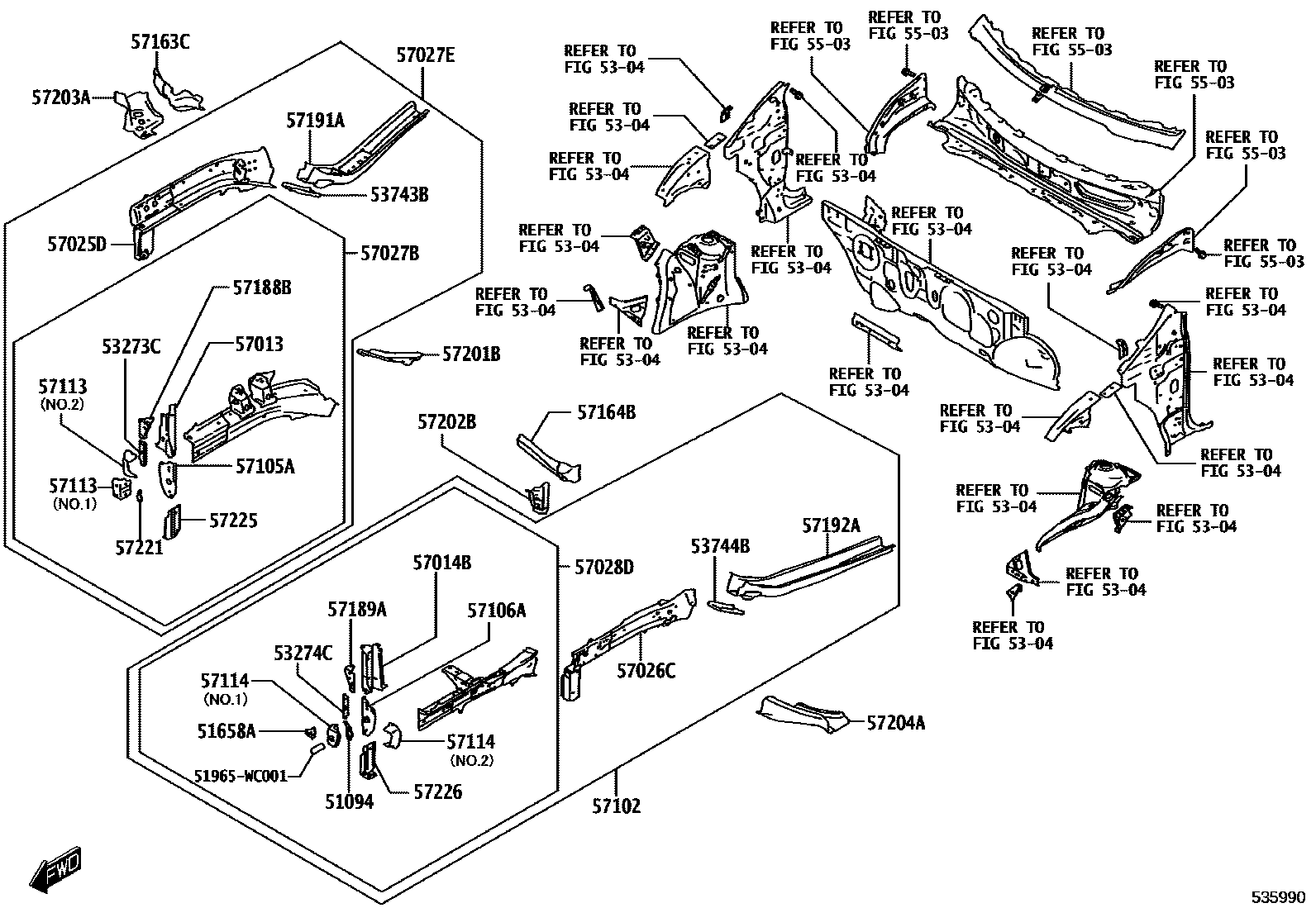

51094HOOK SUB-ASSY, TRANSPORT, FRONT LH

main52141-WC001i201904

POS.1; POS.3; POS.4; POS.5

51658ABRACKET, FRONT BUMPER ARM, LH

main52081-WC001i201904

POS.1; POS.3; POS.4; POS.5

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53233-WC002i201904

POS.1; POS.3; POS.4; POS.5

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53234-WC002i201904

POS.1; POS.3; POS.4; POS.5

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main57115-WC001i201904

POS.1; POS.3; POS.4; POS.5

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main57116-WC001i201904

POS.1; POS.3; POS.4; POS.5

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main53233-WC001i201904

POS.1; POS.3; POS.4; POS.5

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main53234-WC001i201904

POS.1; POS.3; POS.4; POS.5

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-WC001i201904

POS.1; POS.3; POS.4; POS.5

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-WC001i201904

POS.1; POS.3; POS.4; POS.5

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57016-WC001i201904

POS.1; POS.3; POS.4; POS.5

57027EMEMBER SUB-ASSY, FRONT SIDE, RH

main57101-WC001i201904

POS.1; POS.3; POS.4; POS.5

57028DMEMBER SUB-ASSY, FRONT SIDE, LH

main57017-WC001i201904

POS.1; POS.3; POS.4; POS.5

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-WC001i201904

POS.1; POS.3; POS.4; POS.5

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57119-WC001i201904

POS.1; POS.3; POS.4; POS.5

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57129-WC001i201904

POS.1; POS.3; POS.4; POS.5

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-WC001i201904

POS.1,NO.2:REFER ILLUST.; POS.3,NO.2:REFER ILLUST.; POS.4,NO.2:REFER ILLUST.; POS.5,NO.2:REFER ILLUST.

main57188-WC001i201904

POS.1,NO.1:REFER ILLUST.; POS.3,NO.1:REFER ILLUST.; POS.4,NO.1:REFER ILLUST.; POS.5,NO.1:REFER ILLUST.

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-WC001i201904

POS.1,NO.2:REFER ILLUST.; POS.3,NO.2:REFER ILLUST.; POS.4,NO.2:REFER ILLUST.; POS.5,NO.2:REFER ILLUST.

main57189-WC001i201904

POS.1,NO.1:REFER ILLUST.; POS.3,NO.1:REFER ILLUST.; POS.4,NO.1:REFER ILLUST.; POS.5,NO.1:REFER ILLUST.

57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57053-WC001i201904

POS.1; POS.3; POS.4; POS.5

57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57054-WC001i201904

POS.1; POS.3; POS.4; POS.5

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main53035-WC001i201904

POS.1; POS.3; POS.4; POS.5

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main53036-WC001i201904

POS.1; POS.3; POS.4; POS.5

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-WC001i201904

POS.1; POS.3; POS.4; POS.5

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-WC002i201904

POS.1; POS.3; POS.4; POS.5

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57107-WC001i201904

POS.1; POS.3; POS.4; POS.5

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57108-WC001i201904

POS.1; POS.3; POS.4; POS.5

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57197-WC001i201904

POS.1; POS.3; POS.4; POS.5

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57198-WC001i201904

POS.1; POS.3; POS.4; POS.5

57221BRACKET, FRONT SIDE MEMBER, RH

main52081-WC001i201904

POS.1; POS.3; POS.4; POS.5

57225BRACE, FRONT MOUNTING BRACKET, RH

main53273-WC001i201904

POS.1; POS.3; POS.4; POS.5

57226BRACE, FRONT MOUNTING BRACKET, LH

main53274-WC001i201904

POS.1; POS.3; POS.4; POS.5

51965WC001BRACKET, HOOK SUPPORT, LOWER

main51965-WC001

FLOOR SIDE MEMBER
