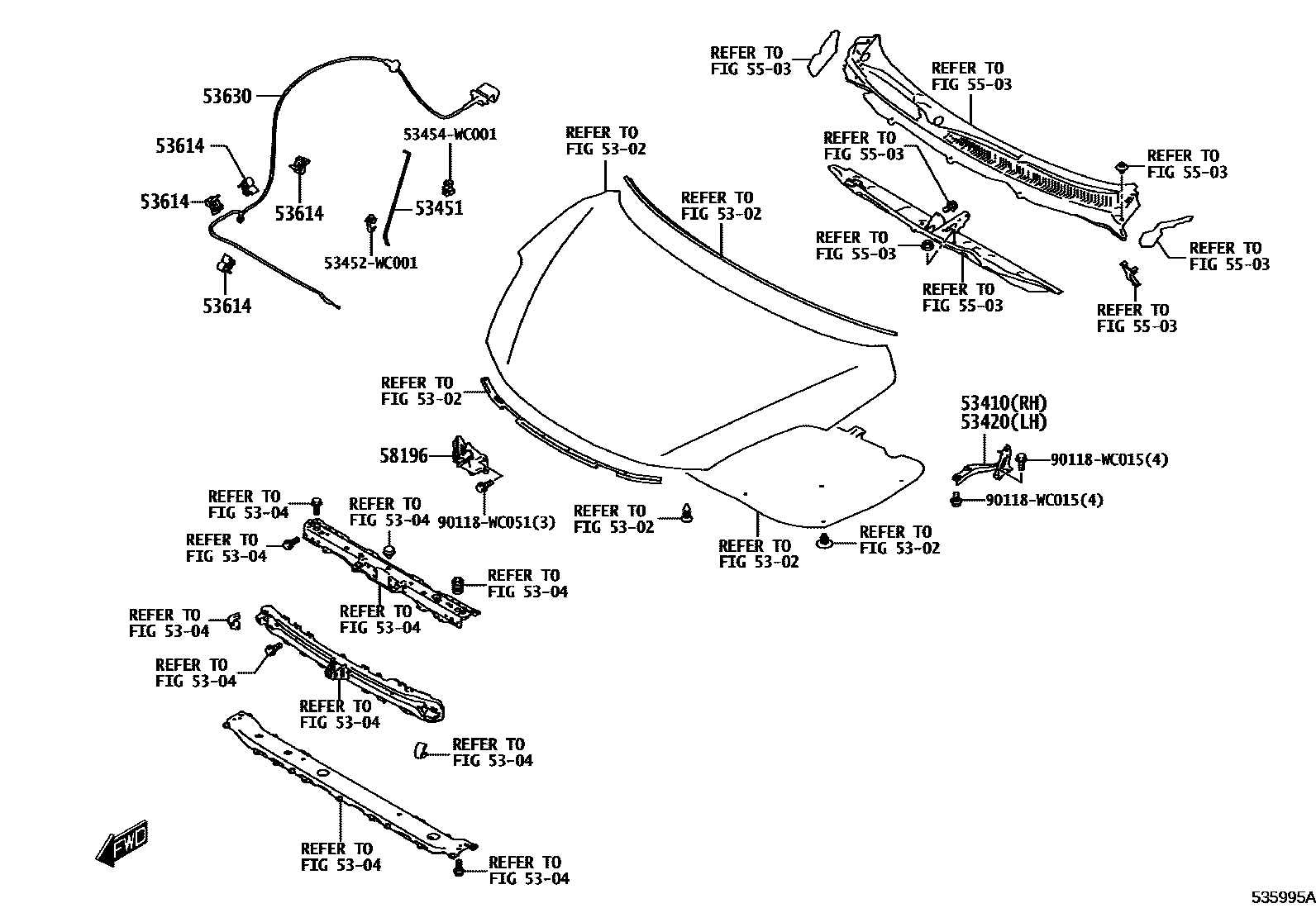

HOOD LOCK & HINGE

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53410HINGE ASSY, HOOD, RH

main53410-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

53420HINGE ASSY, HOOD, LH

main53420-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

53451ROD, HOOD SUPPORT

main53440-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-WC001×4iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

58196STRIKER, HOOD LOCK SAFETY LATCH

main53510-WC001iK12M..5F..G201909

POS.2

main53510-WC002iK12N201904

POS.1

53452WC001HOLDER, HOOD STAY

main53452-WC001

53454WC001CLIP, HOOD SUPPORT ROD

main53454-WC001

90118WC015

main90118-WC015

90118WC051

main90118-WC051

13 parts on this diagram · 1 diagram in section
