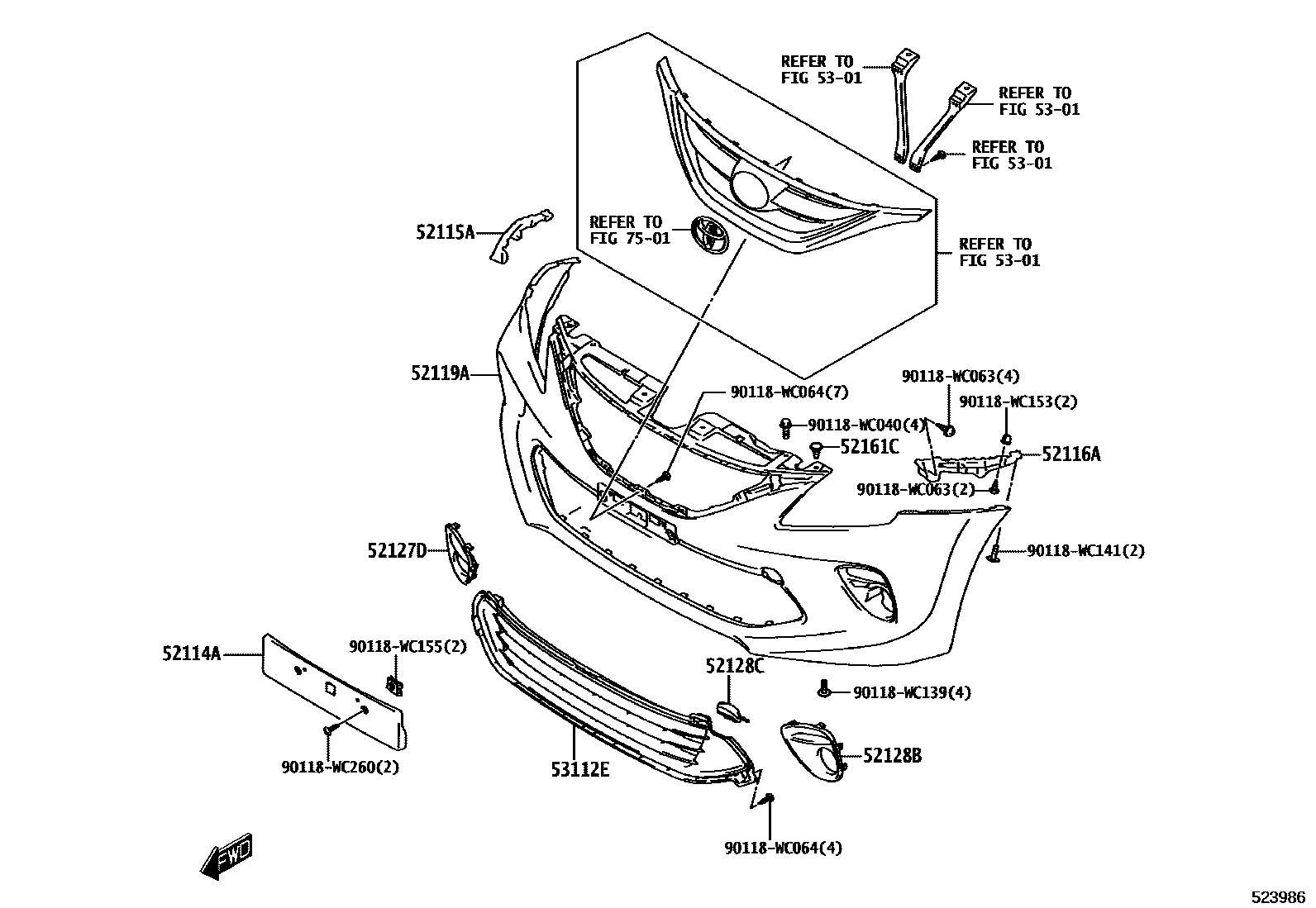

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52535-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52536-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

52119ACOVER, FRONT BUMPER

main52119-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

PAINT REQ.,POS.1; PAINT REQ.,POS.3; PAINT REQ.,POS.4; PAINT REQ.,POS.5

52127DCOVER, FRONT BUMPER HOLE, RH

main81481-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

52128BCOVER, FRONT BUMPER HOLE, LH

main81482-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

52128CCOVER, FRONT BUMPER HOLE, LH

main52127-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

52161CPIECE, FRONT BUMPER

main90118-WC260×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

5301RADIATOR GRILLE

→ Go to FIG 53-01

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

90118WC040

main90118-WC040

90118WC063

main90118-WC063

90118WC064

main90118-WC064

90118WC139

main90118-WC139

90118WC141

main90118-WC141

90118WC153

main90118-WC153

90118WC155

main90118-WC155

90118WC260

main90118-WC260

19 parts on this diagram · 2 diagrams in section
