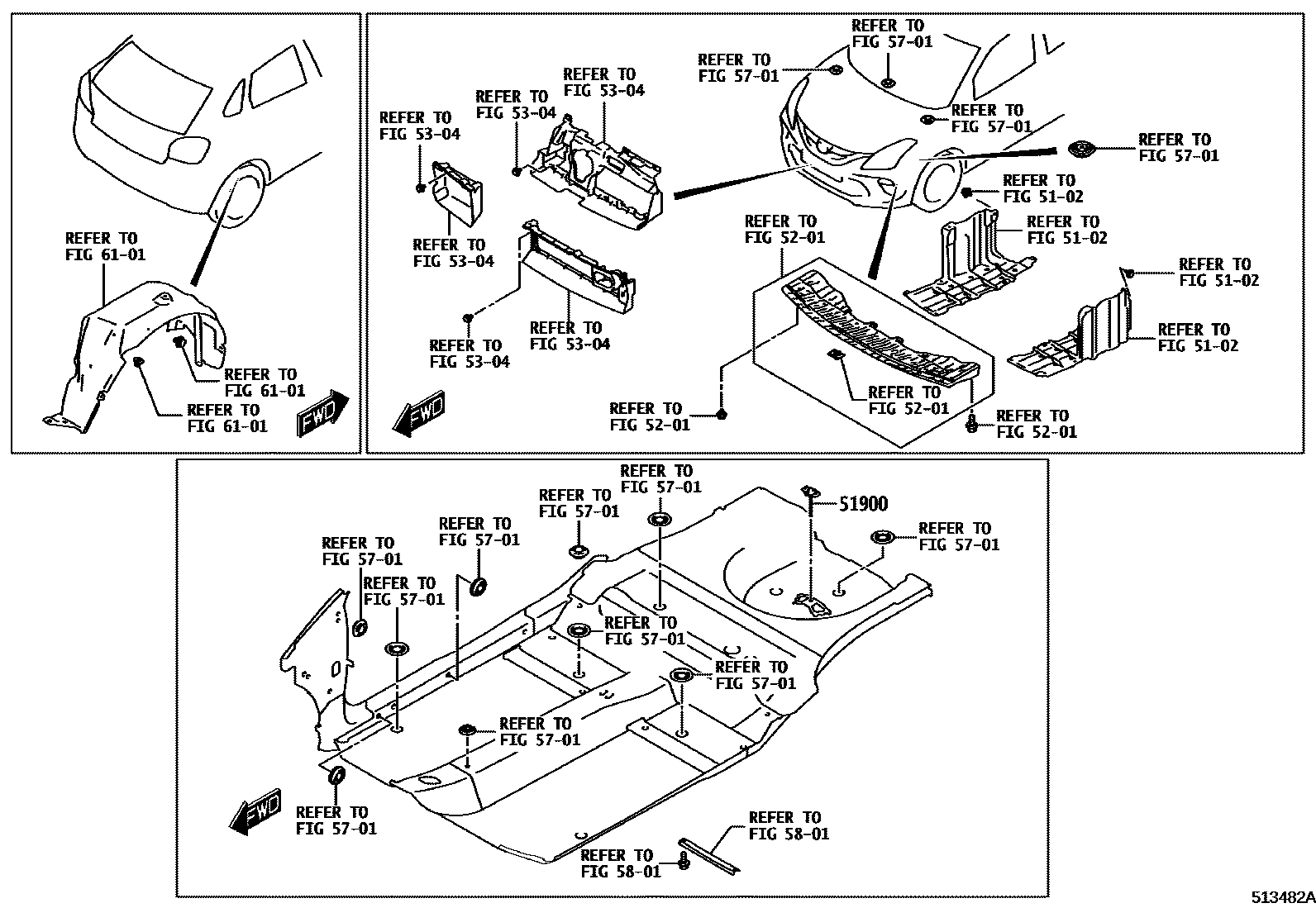

SPARE WHEEL CARRIER

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51900CARRIER ASSY, SPARE WHEEL

main51931-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5701HOLE PLUG

→ Go to FIG 57-01

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6101SIDE MEMBER

→ Go to FIG 61-01

7 parts on this diagram · 1 diagram in section
