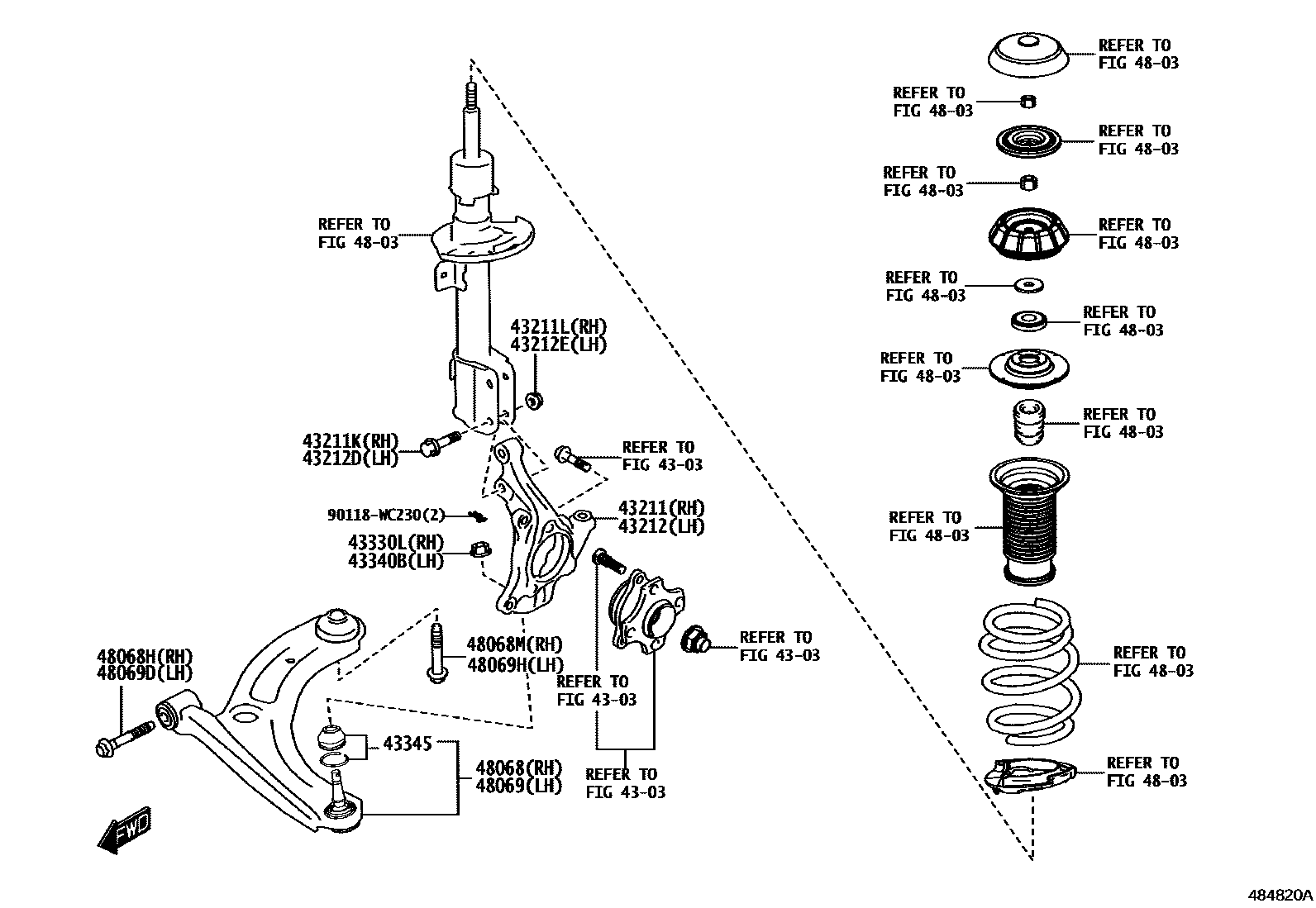

FRONT AXLE ARM & STEERING KNUCKLE

4303FRONT AXLE HUB

→ Go to FIG 43-03

43211KNUCKLE, STEERING, RH

main43211-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43211KBOLT (FOR STEERING KNUCKLE RH)

main90118-WCG05×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43211LNUT (FOR STEERING KNUCKLE RH)

main90118-WC488×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43212KNUCKLE, STEERING, LH

main43212-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43212DBOLT (FOR STEERING KNUCKLE LH)

main90118-WCG05×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43212ENUT (FOR STEERING KNUCKLE LH)

main90118-WC488×2iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90118-WC167iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90118-WC167iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43345COVER, LOWER BALL JOINT DUST

main43345-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-WC014iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90118-WC530iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90118-WC530iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-WC014iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90118-WC530iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90118-WC530iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

90118WC230

main90118-WC230

18 parts on this diagram · 1 diagram in section
