Toyota GLANZA — BRAKE PEDAL & BRACKET

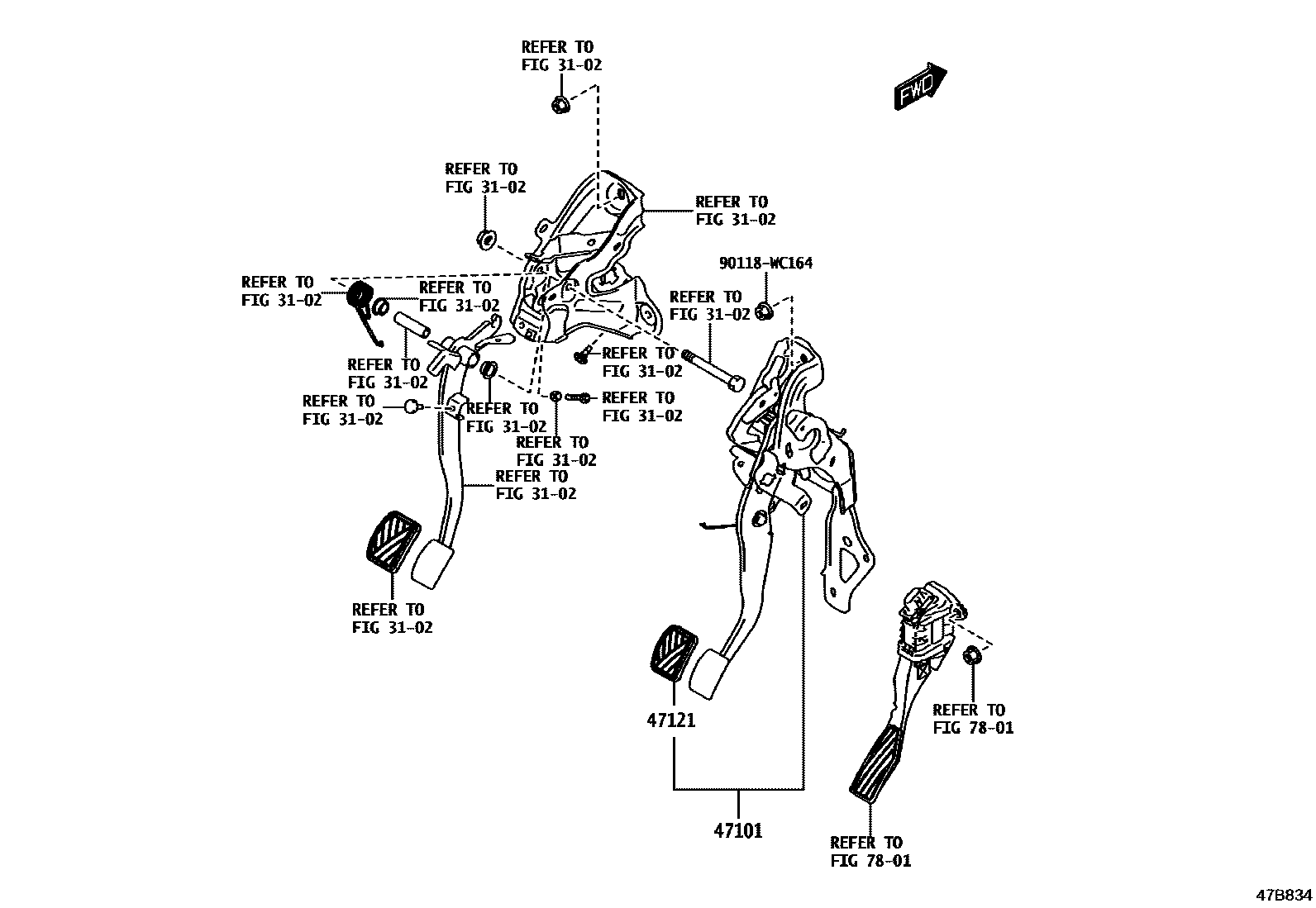

Parts diagram
3102CLUTCH PEDAL & FLEXIBLE HOSE
→ Go to FIG 31-02
47101PEDAL SUB-ASSY, BRAKE
47110-WC001
47110-WC002
47121PAD, BRAKE PEDAL
47121-WC001
47121-WC002
7801ACCELERATOR LINK
→ Go to FIG 78-01
90118WC164
90118-WC164

5 parts on this diagram · 3 diagrams in section

BRAKE PEDAL & BRACKET for Toyota GLANZA

This section contains 9 genuine Toyota parts for the BRAKE PEDAL & BRACKET system of the Toyota GLANZA. Key components include: CLUTCH PEDAL & FLEXIBLE HOSE, BRAKE MASTER CYLINDER, BRAKE BOOSTER & VACUUM TUBE, PEDAL SUB-ASSY, BRAKE, PAD, BRAKE PEDAL.
