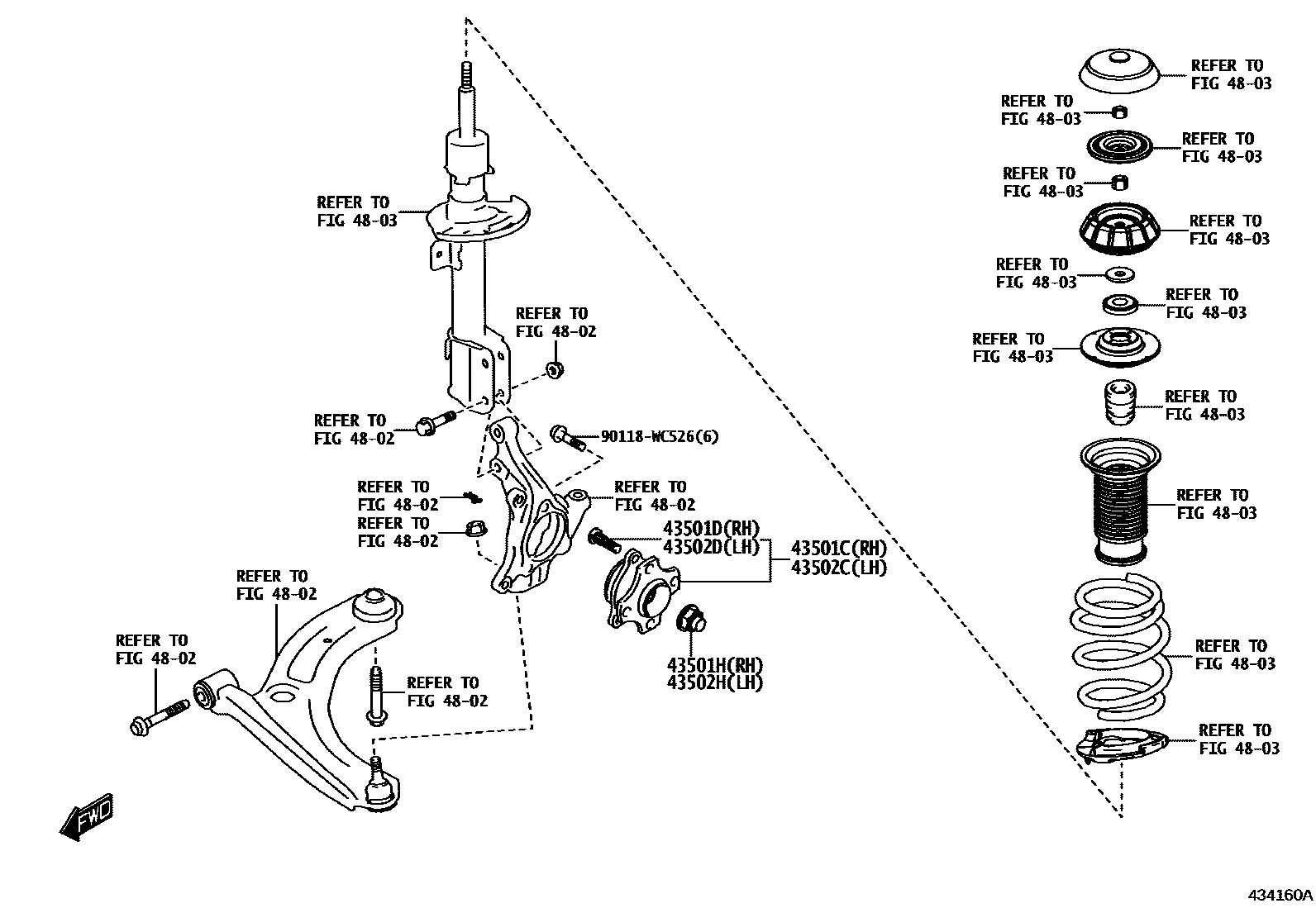

FRONT AXLE HUB

0001 1 0002 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-WC004iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90118-WCK95×4iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90118-WC168iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-WC004iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90118-WCK95×4iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90118-WC168iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

90118WC526

main90118-WC526

9 parts on this diagram · 2 diagrams in section
