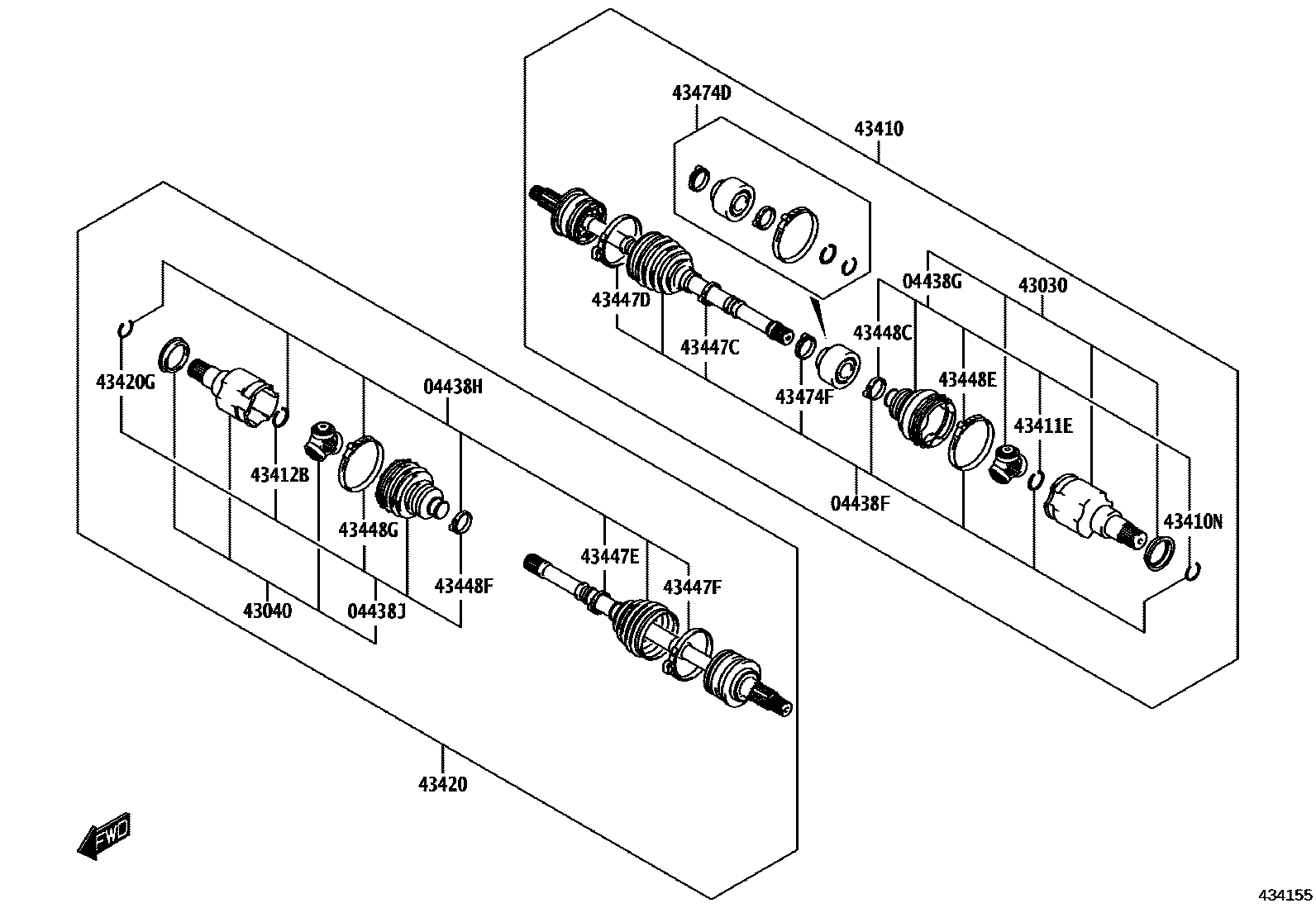

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
POS.1; POS.3; POS.4; POS.5
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
POS.1; POS.3; POS.4; POS.5
04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
POS.1; POS.3; POS.4; POS.5
04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
POS.1; POS.3; POS.4; POS.5
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
POS.1; POS.3
POS.4; POS.5
43040JOINT ASSY, FRONT DRIVE INBOARD, LH
POS.1; POS.3
POS.4; POS.5
43410SHAFT ASSY, FRONT DRIVE, RH
POS.1; POS.3
POS.4; POS.5
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
POS.1; POS.3; POS.4; POS.5
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
POS.1; POS.3; POS.4; POS.5
43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
POS.1; POS.3; POS.4; POS.5
43420SHAFT ASSY, FRONT DRIVE, LH
POS.1; POS.3
POS.4; POS.5
43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
POS.1; POS.3; POS.4; POS.5
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
POS.1; POS.3; POS.4; POS.5
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
POS.1; POS.3; POS.4; POS.5
43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
POS.1; POS.3; POS.4; POS.5
43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
POS.1; POS.3; POS.4; POS.5
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
POS.1; POS.3; POS.4; POS.5
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
POS.1; POS.3; POS.4; POS.5
43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
POS.1; POS.3; POS.4; POS.5
43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
POS.1; POS.3; POS.4; POS.5
43474DDAMPER, FRONT DRIVE SHAFT, RH
POS.1; POS.3; POS.4; POS.5
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
POS.1; POS.3; POS.4; POS.5
22 parts on this diagram · 2 diagrams in section
