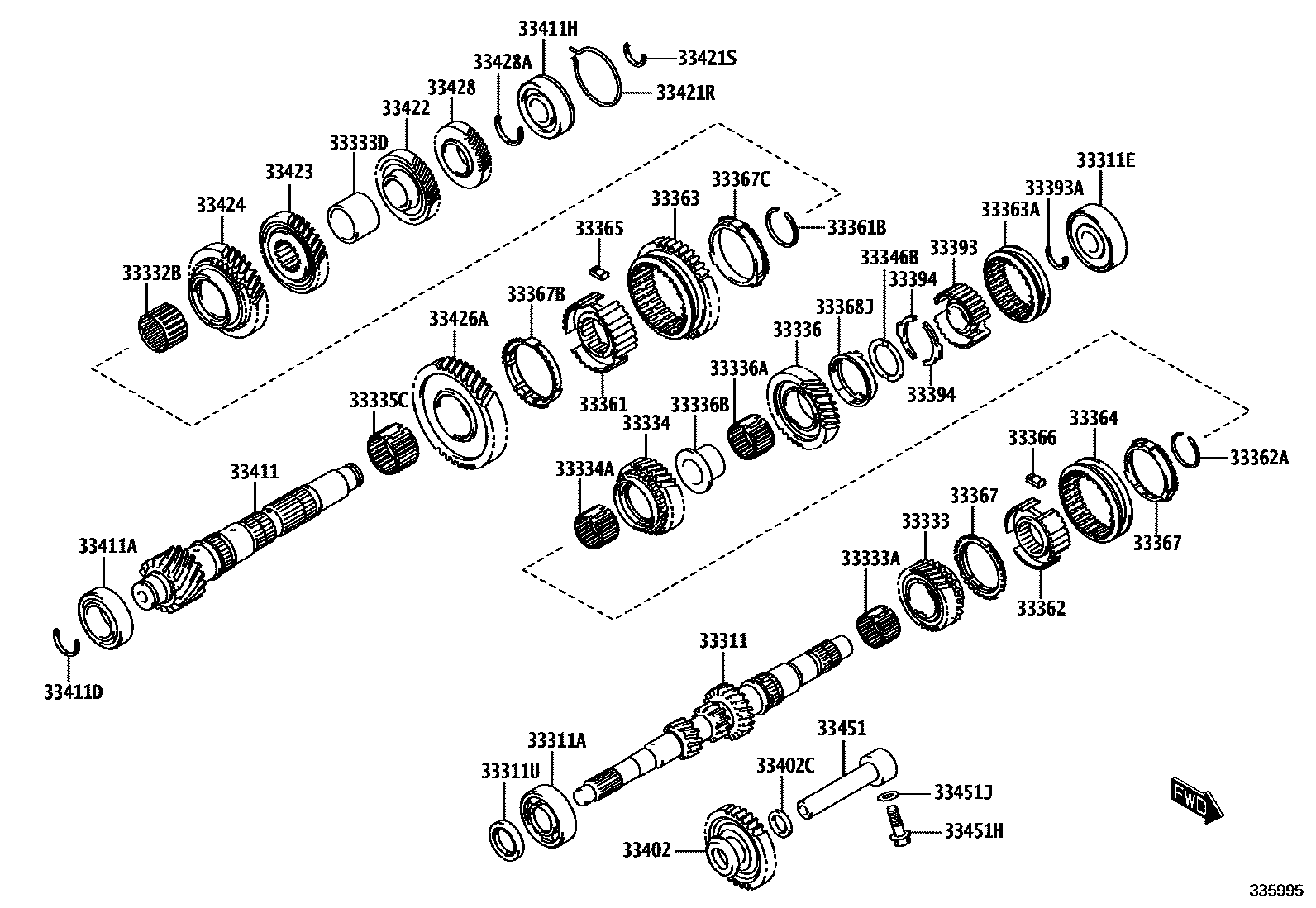

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
POS.1; POS.3
33311ABEARING (FOR INPUT SHAFT FRONT)
POS.1; POS.3
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
POS.1; POS.3
33311USEAL, OIL (FOR INPUT SHAFT)
POS.1; POS.3
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
POS.1; POS.3
33333GEAR, 3RD
POS.1; POS.3
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
POS.1; POS.3
33333DSPACER (FOR 3RD GEAR)
POS.1; POS.3
33334GEAR, 4TH
POS.1; POS.3
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
POS.1; POS.3
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
POS.1; POS.3
33336GEAR, 5TH
POS.1; POS.3
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
POS.1; POS.3
33336BSPACER (FOR 5TH GEAR BEARING)
POS.1; POS.3
33346BWASHER, 5TH GEAR THRUST
POS.1; POS.3
33361HUB, TRANSMISSION CLUTCH, NO.1
POS.1; POS.3
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
POS.1; POS.3
33362HUB, TRANSMISSION CLUTCH, NO.2
POS.1; POS.3
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
POS.1; POS.3
33363SLEEVE, TRANSMISSION HUB, NO.1
POS.1; POS.3
33363ASLEEVE, TRANSMISSION HUB, NO.3
POS.1; POS.3
33364SLEEVE, TRANSMISSION HUB, NO.2
POS.1; POS.3
33365KEY, SYNCHROMESH SHIFTING, NO.1
POS.1; POS.3
33366KEY, SYNCHROMESH SHIFTING, NO.2
POS.1; POS.3
33367RING, SYNCHRONIZER, NO.1
POS.1; POS.3
33367BRING, SYNCHRONIZER (FOR 1ST GEAR)
POS.1; POS.3
33367CRING, SYNCHRONIZER (FOR 2ND GEAR)
POS.1; POS.3
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
POS.1; POS.3
33393HUB, TRANSMISSION CLUTCH, NO.3
POS.1; POS.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.00,POS.1; T=2.00,POS.3
T=2.05,POS.1; T=2.05,POS.3
T=2.10,POS.1; T=2.10,POS.3
T=2.15,POS.1; T=2.15,POS.3
T=2.20,POS.1; T=2.20,POS.3
T=2.25,POS.1; T=2.25,POS.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
POS.1; POS.3
33402GEAR SUB-ASSY, REVERSE IDLER
POS.1; POS.3
33402CWASHER, PLATE (FOR REVERSE IDLER)
POS.1; POS.3
33411COUNTERSHAFT
POS.1; POS.3
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
POS.1; POS.3
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
POS.1; POS.3
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
POS.1; POS.3
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
POS.1; POS.3
33421SRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
POS.1; POS.3
33422GEAR, COUNTERSHAFT 4TH SPEED
POS.1; POS.3
33423GEAR, COUNTERSHAFT 3RD SPEED
POS.1; POS.3
33424GEAR, COUNTERSHAFT 2ND SPEED
POS.1; POS.3
33426AGEAR, COUNTERSHAFT, 1ST SPEED
POS.1; POS.3
33428GEAR, COUNTERSHAFT 5TH
POS.1; POS.3
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
T=2.15,POS.1; T=2.15,POS.3
T=2.20,POS.1; T=2.20,POS.3
T=2.25,POS.1; T=2.25,POS.3
T=2.30,POS.1; T=2.30,POS.3
T=2.35,POS.1; T=2.35,POS.3
T=2.40,POS.2
33451SHAFT, REVERSE IDLER GEAR
POS.1; POS.3
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
POS.1; POS.3
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
POS.1; POS.3
48 parts on this diagram · 3 diagrams in section
