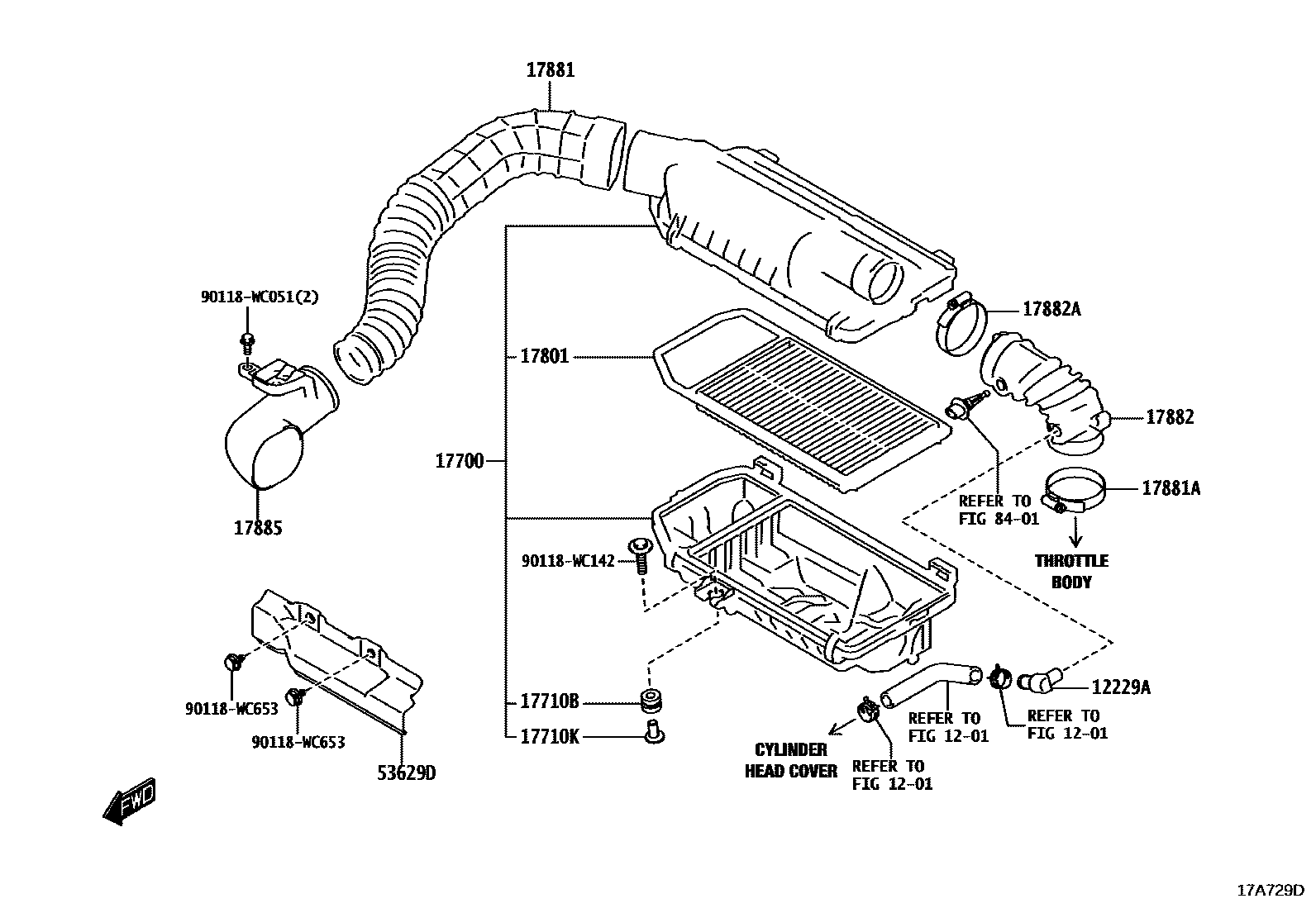

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201VENTILATION HOSE

→ Go to FIG 12-01

12229APIPE, VENTILATION

17700CLEANER ASSY, AIR

main17700-WC001

main17700-WC002

17710BGROMMET

17710KCOLLAR(FOR AIR CLEANER)

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-WC001

main17801-WC002

17881HOSE, AIR CLEANER, NO.1

main52812-WC001

main90118-WC814

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

17882HOSE, AIR CLEANER, NO.2

main17881-WC001

main17881-WC002

main90118-WC325

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

17885PIPE, AIR CLEANER

main52811-WC001

53629DCOVER, HOOD LOCK CONTROL CABLE

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90118WC051

main90118-WC051

90118WC142

main90118-WC142

90118WC653

main90118-WC653

16 parts on this diagram · 4 diagrams in section
