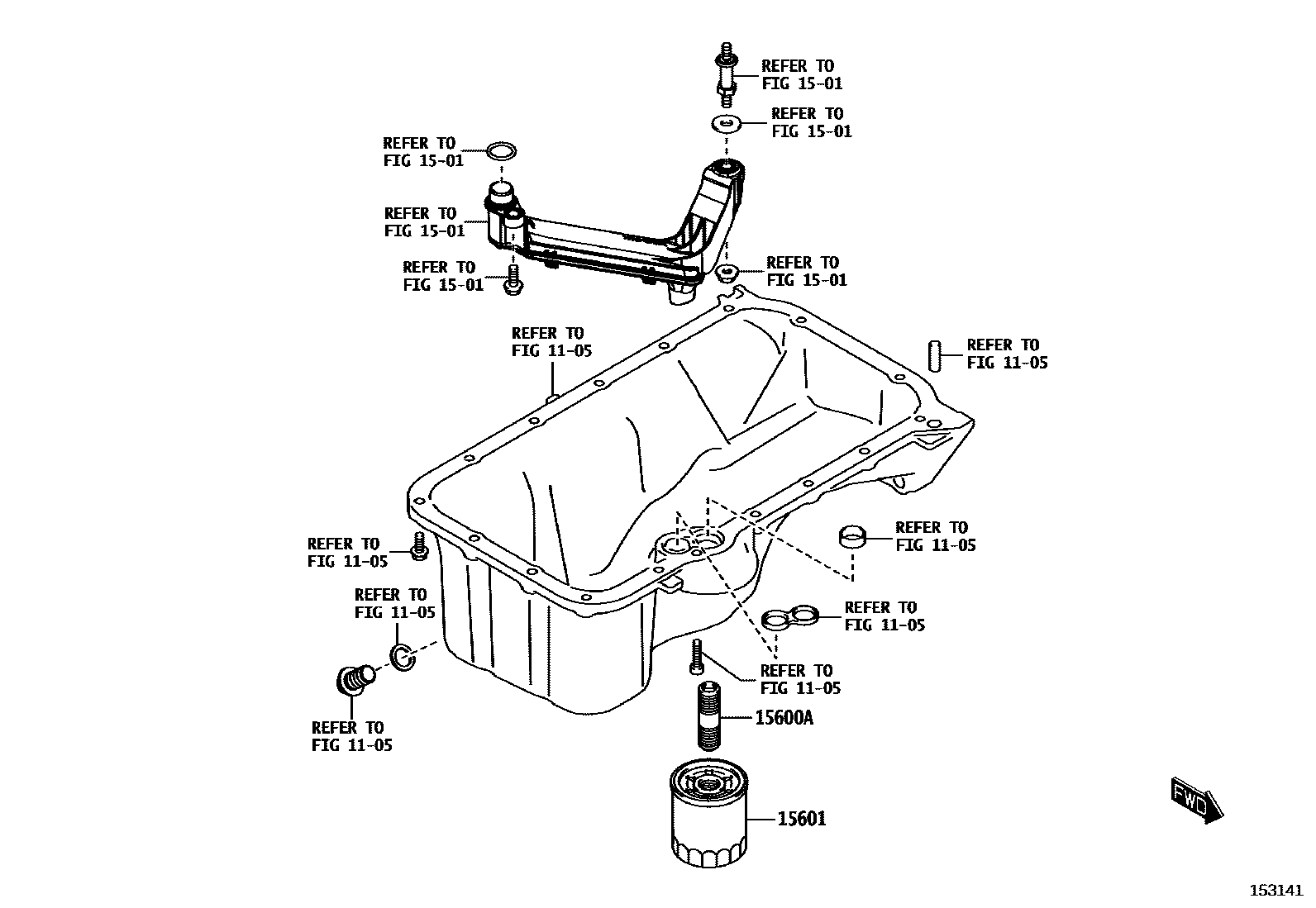

OIL FILTER

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15600AUNION(FOR OIL FILTER)

main90118-WC296iK12M..K12M..5F..V; K12M..K12M..CVT..G; K12M..K12M..CVT..V; K12N..K12N201904

POS.1; POS.3; POS.4; POS.5

15601FILTER SUB-ASSY, OIL

main90118-WC340iK12N..K12N201904

POS.1

main90118-WC341iK12M..K12M..5F..V; K12M..K12M..CVT..G; K12M..K12M..CVT..V201904

POS.3; POS.4; POS.5

4 parts on this diagram · 2 diagrams in section
