CYLINDER HEAD

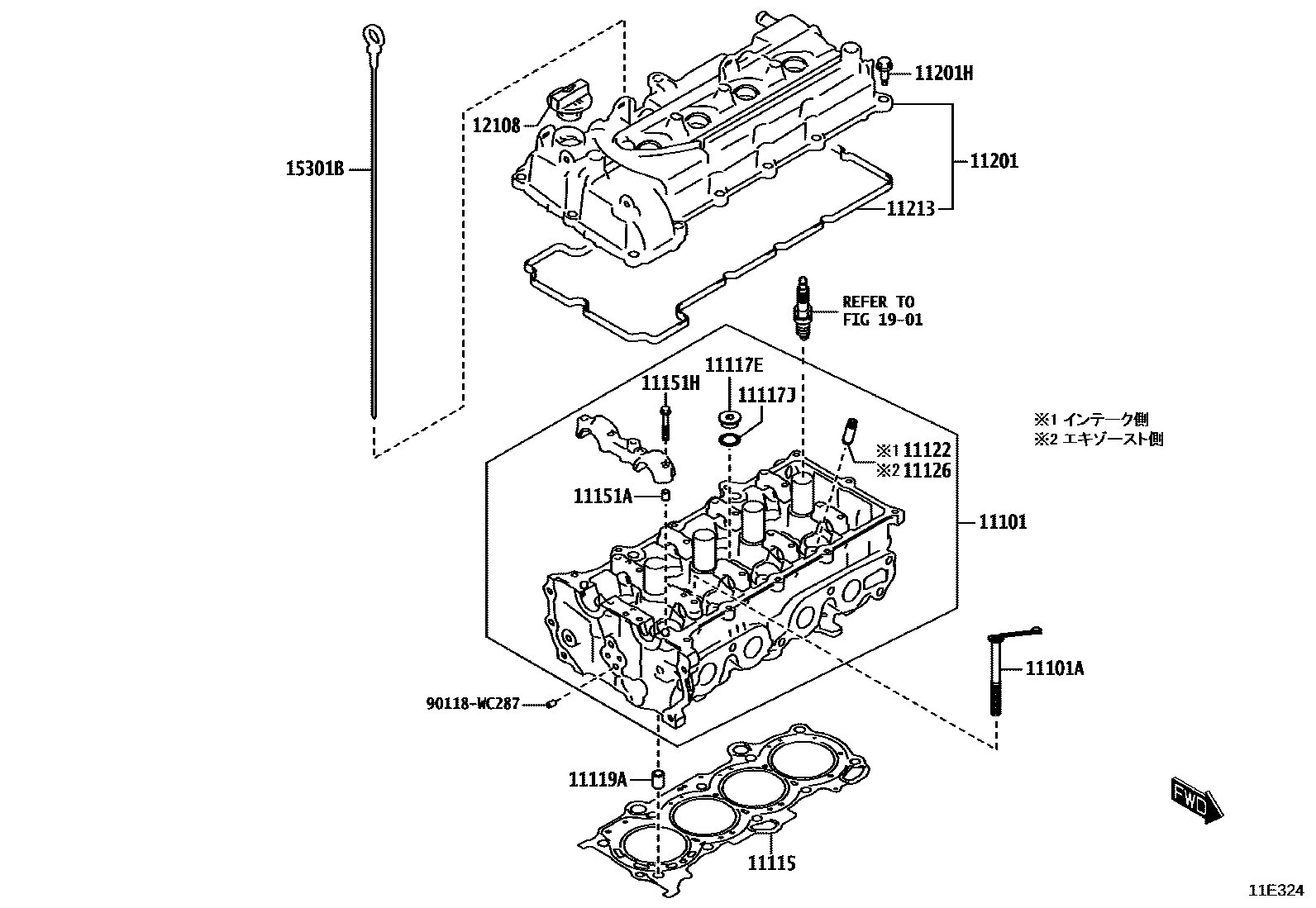

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-WC001i201904
POS.3; POS.4; POS.5
main11101-WC005i201904
POS.1
11101ABOLT(FOR CYLINDER HEAD SET)
main90118-WC288×10i201904
POS.1; POS.3; POS.4; POS.5
11115GASKET, CYLINDER HEAD
main11115-WC001i201904
POS.1
main11115-WC002i201904
POS.3; POS.4; POS.5
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90118-WC201×3i201904
POS.1
main90118-WC202×3i201904
POS.3; POS.4; POS.5
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90118-WC294×3i201904
POS.1
main90118-WC640×3i201904
POS.3; POS.4; POS.5
11119APIN, STRAIGHT, NO.1
main90118-WC067×2i201904
POS.1; POS.3; POS.4; POS.5
11122BUSH, INTAKE VALVE GUIDE
main11122-WC001×8i201904
STD,POS.1
main11122-WC002×8i201904
STD,POS.3; STD,POS.4; STD,POS.5
11126BUSH, EXHAUST VALVE GUIDE
main11122-WC001×8i201904
STD,POS.1
main11122-WC002×8i201904
STD,POS.3; STD,POS.4; STD,POS.5
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
main90118-WC192×2i201904
POS.1; POS.3; POS.4; POS.5
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
main90118-WC290×4i201904
POS.1,NO.1:REFER ILLUST.
main90118-WC291×16i201904
POS.1,NO.2:REFER ILLUST.; POS.3; POS.4; POS.5
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-WC001i201904
POS.1
main11201-WC002i201904
POS.3; POS.4; POS.5
11201HBOLT(FOR CYLINDER HEAD COVER)
main90118-WC009×2i201904
POS.1,NO.1:REFER ILLUST.
main90118-WC292×12i201904
POS.1,NO.2:REFER ILLUST.; POS.3; POS.4; POS.5
11213GASKET, CYLINDER HEAD COVER
main11213-WC001i201904
POS.1
main11213-WC002i201904
POS.3; POS.4; POS.5
12108CAP SUB-ASSY, OIL FILLER
main12180-WC002i201904
POS.1; POS.3; POS.4; POS.5
15301BGAGE SUB-ASSY, OIL LEVEL
main15301-WC001i201904-202203
POS.1
main15301-WC003i202204
POS.1
1901IGNITION COIL & SPARK PLUG / GLOW PLUG
→ Go to FIG 19-01
90118WC287
main90118-WC287

17 parts on this diagram · 4 diagrams in section
