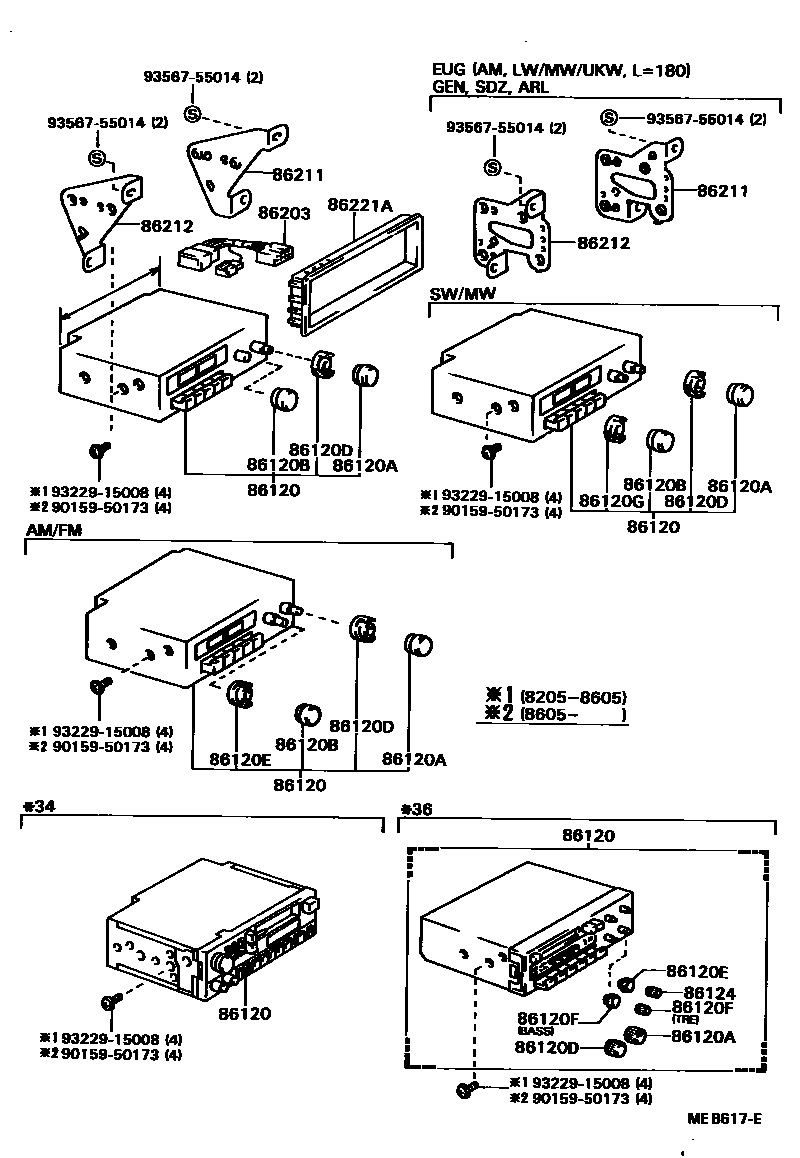

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-14390iAL20,25..GEN198205-198408

SW/MW,TEN

main86120-14392iAL25..GEN198408-198605

SW/MW,TEN

main86120-14420iAL20,25..GEN;AL21,25..SDZ; AL20,25..LHD..EUG198205-198406

AM,TEN; AM,TEN,L=180

main86120-14421iAL20,25..LHD..EUG; AL25..DLX..ARL198406-198605

AM,TEN; AM,TEN,L=180

main86120-14430iAL20,25..GEN198205-198408

AM/FM,TEN

main86120-14431iAL25..GEN198408-198605

AM/FM,TEN

main86120-14460iAL25..ARL198308-198410

AM/FM,TEN

main86120-14461iAL25..ARL198410-198605

AM/FM,TEN

main86120-14520iAL20,25..GEN; AL25..DLX..ARL198308-198407

AM,MATSUSHITA

main86120-14530iAL20,25..GEN198205-198605

AM/FM,MATSUSHITA

main86120-14580iAL20,25..GEN198205-198408

SW/MW,MATSUSHITA

main86120-14641iAL20,25..EUG198205-198308

AM,TEN,L=188

main86120-14642iAL25..SDZ198605-198608

AM,TEN,L=188

main86120-16260iAL20,25..EUG198205-198308

LW/MW/UKW,TEN,L=188

main86120-16261iAL25..SDZ198605-198608

LW/MW/UKW,TEN,L=188

main86120-16350iAL25..DLX..ARL; AL25..GEN198605-198801

FUJITSU TEN,AM,TEN

main86120-16430iAL25..ARL198605-198801

FUJITSU TEN,AM/FM,TEN

main86120-16440iAL25..SR5198605-198801

*36

main86120-16460iAL25..GEN198605-198801

MATSUSHITA,ID=5108,SW/MW

main86120-16470iAL25..GEN198605-198801

FUJITSU TEN,AM/FM,TEN

main86120-16530iAL25..DLX..ARL; AL25..GEN198605-198801

MATSUSHITA,ID=5010,AM,MATSUSHITA

main86120-17010iAL20,25..GEN; AL20,25..LHD..EUG; AL25..DLX..ARL198407-198605

AM,MATSUSHITA; AM,MATSUSHITA,L=180

main86120-17100iAL25..LHD..EUR198607-198608

*34,TEN,L=180

main86120-22390iAL20,25..EUG198308-198408

LW/MW/UKW,TEN,L=180

main86120-22391iAL25..EUG198408-198608

FUJITSU TEN,LW/MW/UKW,TEN,L=180

main86120-22400iAL21,25..SDZ198209-198408

LW/MW/UKW,TEN,L=180

main86120-22401iAL25..SDZ198408-198603

LW/MW/UKW,TEN,L=180

main86120-22402iAL25..SDZ198603-198608

FUJITSU TEN,LW/MW/UKW,TEN,L=180

main86120-22600iAL25..GEN198408-198605

SW/MW,MATSUSHITA

main86120-32050iAL25..SR5198308-198605

*36

main86120-32100iAL25..EUR198608-198708

*34,MATSUSHITA,L=180

main86120-32102iAL25..EUR198708-198801

MATSUSHITA,*34,MATSUSHITA,L=180

main86120-32110iAL25..EUR198608-198708

W/BALANCE,LW/MW/UKW,TEN,L=180

main86120-32111iAL25..EUR198708-198801

FUJITSU TEN,W/BALANCE,LW/MW/UKW,TEN,L=180

main86120-32240iAL25..EUR198608-198708

LW/MW/UKW,TEN,L=180

main86120-32241iAL25..EUR198708-198801

FUJITSU TEN,LW/MW/UKW,TEN,L=180

86120AKNOB, RADIO RECEIVER SWITCH

main86128-14010iAL25..GEN198408-198605

AM/FM,MATSUSHITA

main86128-14130iAL25..GEN198408-198605

SW/MW,MATSUSHITA

main86128-14180iAL25..ARL198308-198410

AM/FM,TEN

main86128-14240iAL2#..LHD..EUR198205-198308

LW/MW/UKW,TEN

main86128-14520iAL20,25..EUG198205-198408

LW/MW/UKW,TEN

main86128-14580iAL25..GEN198408-198605

AM,AM/FM,SW/MW,TEN

main86128-14680iAL25..EUG; AL25..SDZ198408-198608

LW/MW/UKW,TEN

main86128-16040iAL25..DLX..ARL; AL25..GEN198605-198801

AM,TEN

main86128-32070iAL25..SR5198308-198801

*36

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-14050iAL20,25..GEN198205-198605

AM/FM,MATSUSHITA

main86128-14070iAL20,25..GEN198205-198605

SW/MW,MATSUSHITA

main86128-14160iAL25..ARL198308-198410

AM/FM,TEN

main86128-14240iAL2#..LHD..EUR198205-198308

LW/MW/UKW,TEN

main86128-14520iAL20,25..EUG198205-198408

LW/MW/UKW,TEN

main86128-14580iAL25..GEN198408-198605

AM,AM/FM,SW/MW,TEN

main86128-14680iAL25..EUG; AL25..SDZ198408-198608

LW/MW/UKW,TEN

main86128-16040iAL25..DLX..ARL; AL25..GEN198605-198801

AM,TEN

86120DKNOB, RADIO RECEIVER TONE

main86128-14030iAL20,25..LHD..EUG198205-198407

AM,MATSUSHITA

main86128-14200iAL20,25..GEN198205-198408

AM/FM,SW/MW,TEN

main86128-14260iAL2#..LHD..EUR198205-198308

LW/MW/UKW,TEN

main86128-14600iAL20,25..LHD..EUG198406-198608

AM,TEN

main86128-14720iAL25..EUG; AL25..SDZ198408-198608

LW/MW/UKW,TEN

main86128-16060iAL25..DLX..ARL; AL25..GEN198605-198801

AM,TEN

main86128-32090iAL25..SR5198408-198801

*36

86120EKNOB, RADIO RECEIVER BALANCE

main86128-14200iAL25..ARL198308-198410

AM/FM,TEN

main86128-14600iAL25..ARL198410-198605

AM/FM,TEN

main86128-32110iAL25..SR5198308-198801

*36,BAL

86120FKNOB, RADIO RECEIVER SUB VOLUME

main86128-32110iAL25..SR5198308-198605

*36,BASS

main86128-32130iAL25..SR5198308-198801

*36,TRE

86120GKNOB, RADIO RECEIVER BAND

main86128-14030iAL20,25..GEN198205-198605

SW/MW,MATSUSHITA

main86128-14220iAL20,25..GEN198205-198408

SW/MW,TEN

main86128-14700iAL25..GEN198408-198605

SW/MW,TEN

86124KNOB, RADIO RECEIVER CONTROL

main86128-32130iAL25..SR5198308-198801

*36,FAD

86203WIRE, RADIO

main86203-16070iAL25..LHD..EUR198607-198608

W/*34

main86203-16100iAL25..EUG,SDZ; AL25..LHD..(EUG,SDZ)198605-198608

W/AM,L=188; W/LW/MW/UKW

main86203-17010iAL25..RHD..EUG198603-198605

W/*34

86211BRACKET, RADIO, NO.1

main86211-16140iAL20,25..EUG198205-198605

W/RADIO:AM,LW/MW/UKW,L=188

main86211-16150iAL20,25..LHD..EUG198205-198308

W/RADIO:AM,LW/MW/UKW,L=180

main86211-16190iAL25..EUG; AL25..SDZ;AL25..ARL,GEN198605-198608

W/RADIO:AM,LW/MW/UKW,L=180

main86211-16230iAL25..EUG; AL25..RHD..EUG198605-198608

W/RADIO: *34,L=180; W/RADIO: AM,LW/MW/UKW,L=188

86212BRACKET, RADIO, NO.2

main86212-16140iAL20,25..EUG198205-198605

W/RADIO:AM,LW/MW/UKW,L=188

main86212-16150iAL20,25..LHD..EUG198205-198308

W/RADIO:AM,LW/MW/UKW,L=180

main86212-16190iAL25..EUG198605-198608

W/RADIO:AM,LW/MW/UKW,L=180

main86212-16230iAL25..EUG; AL25..RHD..EUG198605-198608

W/RADIO:*34,L=180; W/RADIO:AM,LW/MW/UKW,L=188

86221APANEL, RADIO RECEIVER

main86220-12010iAL25..RHD..EUG198603-198801

W/*34

9015950173

main90159-50173

9322915008

main93229-15008

9356755014

main93567-55014

15 parts on this diagram · 2 diagrams in section
