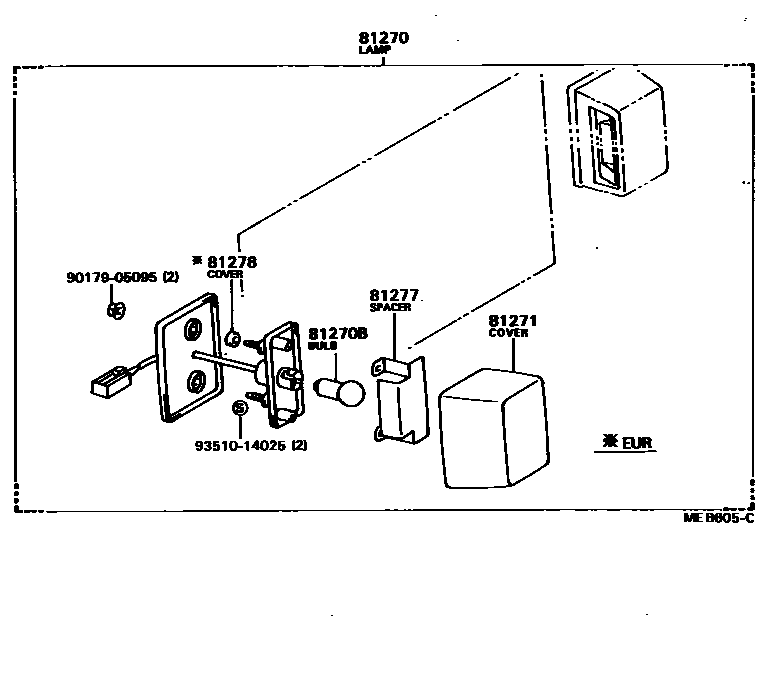

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-19825iAL20..GEN198205-198303

RH

main81270-19826iAL20..GEN198303-198408

RH

main81270-19845iAL20,21..EUR198205-198304

RH

main81270-19846iAL20,21..EUR198304-198408

RH

main81270-80004iAL25..GEN;AL25..SDZ198308-198801

main81270-80005iAL25..ARL;AL25..EUG,FRG; AL25..GEN; AL25..SDZ198308-198801

BRUNEI SPEC; SWEDEN SPEC

main81690-19185iAL20..GEN198205-198303

LH

main81690-19186iAL20..GEN198303-198408

LH

main81690-19205iAL20,21..EUR198205-198304

LH

main81690-19206iAL20,21..EUR198304-198408

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11100×2iAL20,21198205-198408

12V 10W,12V 10W

main99132-12050×2iAL25198208-198801

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-10141×2iAL20..GEN198303-198408

main81271-16120×2iAL20..GEN198205-198303

main81271-24010×2iAL25198208-198801

81277SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-16120×2iAL20,21198205-198408

81278COVER, LICENSE PLATE LAMP

main81276-16160iAL25..GEN;AL25..SDZ198308-198801

main81276-16170iAL25..ARL;AL25..EUG,FRG; AL25..SDZ198308-198801

SWEDEN SPEC

main81278-16140×4iAL20,21..EUR198205-198408

9017905095

main90179-05095

9351014025

main93510-14025

7 parts on this diagram · 2 diagrams in section
