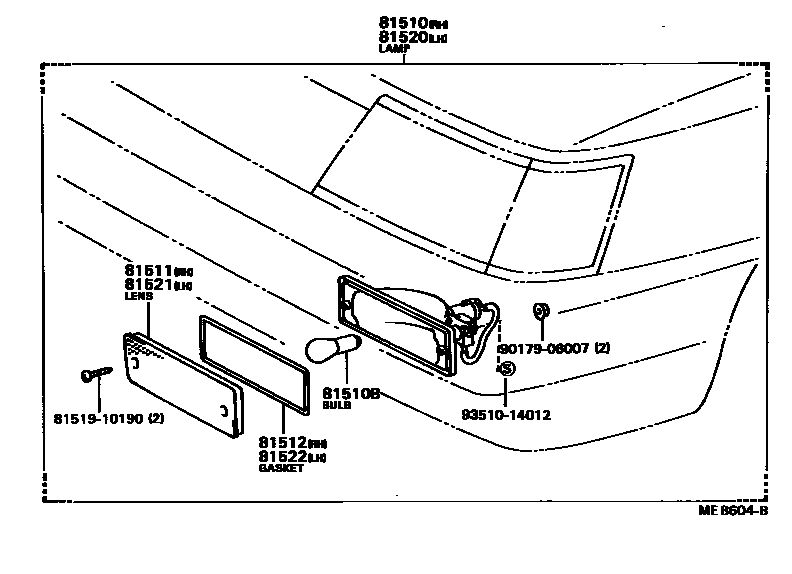

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-19815iAL20,25..ARL,GEN198205-198408

main81510-19816iAL25..ARL,GEN198408-198801

main81510-19825iAL2#..EUR198205-198408

main81510-19826iAL25..EUR198408-198801

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iAL2#..EUR198205-198801

12V 21W,12V 21W

main99132-11230×2iAL20,25..ARL,GEN198205-198801

12V 23W,12V 23W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-16080iAL2#198205-198408

main81511-16081iAL25198408-198801

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iAL2#198205-198801

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-19815iAL20,25..ARL,GEN198205-198408

main81520-19816iAL25..ARL,GEN198408-198801

main81520-19825iAL2#..EUR198205-198408

main81520-19826iAL25..EUR198408-198801

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-16080iAL2#198205-198408

main81521-16081iAL25198408-198801

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iAL2#198205-198801

8151910190BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10190

9017906007

main90179-06007

9351014012

main93510-14012

10 parts on this diagram · 1 diagram in section
