HEADLAMP

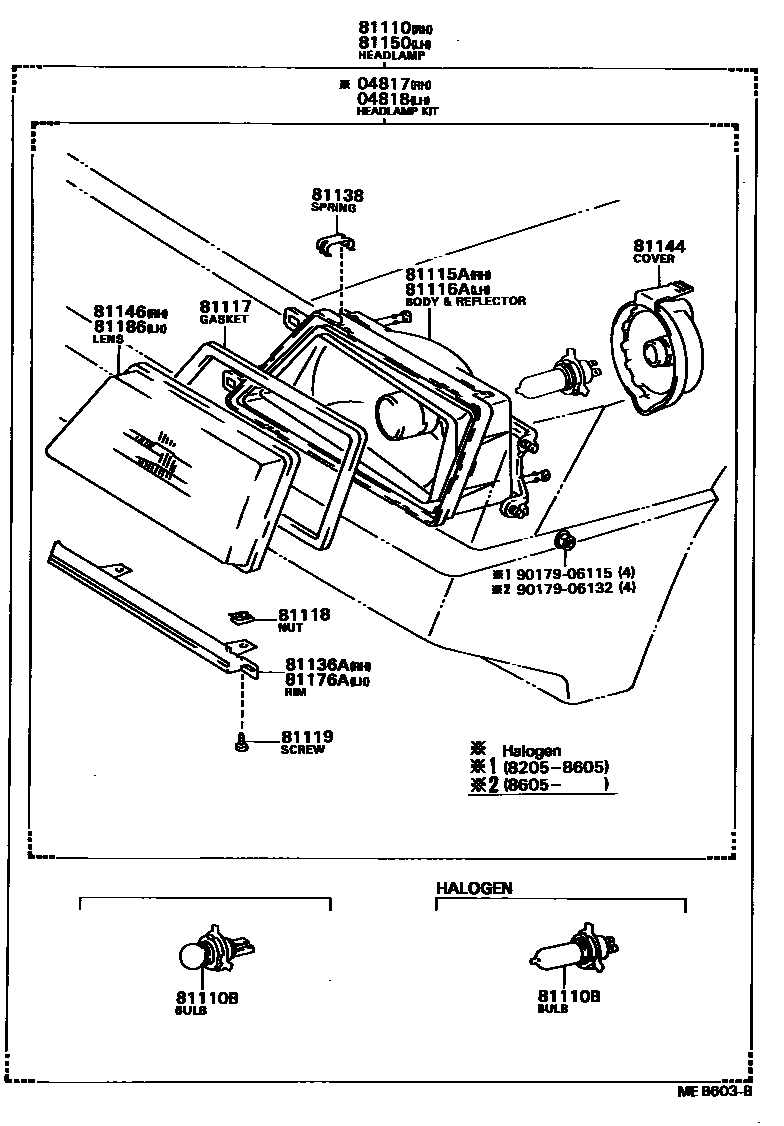

Parts diagram
04817HEADLAMP KIT, W/O SEALED BEAM, RH
main04817-16020i198308-198408
BAHAMA SPEC,W/HALOGEN HEADLAMP
sub81110-16160
main04817-16020i198205-198408
W/HALOGEN HEADLAMP
sub81110-16160
main04817-16030i198205-198801
W/HALOGEN HEADLAMP
main04817-16030i198311-198801
NATO SPEC,W/HALOGEN HEADLAMP
main04817-16050i198605-198801
LH TRAFFIC SPEC(*46),W/HALOGEN
main04817-16050i198205-198801
W/HALOGEN HEADLAMP
main04817-16060i198208-198605
W/HALOGEN HEADLAMP
04818HEADLAMP KIT, W/O SEALED BEAM, LH
main04818-16020i198205-198408
W/HALOGEN HEADLAMP
sub81150-16160
main04818-16020i198308-198408
BAHAMA SPEC W/HALOGEN HEADLAMP
sub81150-16160
main04818-16030i198205-198801
W/HALOGEN HEADLAMP
main04818-16030i198311-198801
NATO SPEC,W/HALOGEN HEADLAMP
main04818-16050i198205-198801
W/HALOGEN HEADLAMP
main04818-16050i198605-198801
LH TRAFFIC SPEC(*46),W/HALOGEN
main04818-16060i198208-198605
W/HALOGEN HEADLAMP
81110HEADLAMP ASSY, RH
main81110-80209i198308-198408
BAHAMA SPEC
sub81110-16150
main81110-80209i198205-198408
sub81110-16150
main81110-80210i198205-198408
HALOGEN
sub81110-16160
main81110-80210i198308-198408
BAHAMA SPEC,HALOGEN
sub81110-16160
main81110-80211i198205-198801
sub81110-16170
main81110-80211i198311-198801
NATO SPEC
sub81110-16170
main81110-80212i198205-198801
HALOGEN,WHITE
sub81110-16180
main81110-80212i198311-198801
NATO SPEC,HALOGEN
sub81110-16180
main81110-80213i198605-198801
LH TRAFFIC SPEC(*46) EN
sub81110-16190
main81110-80213i198205-198801
sub81110-16190
main81110-80214i198205-198801
HALOGEN
sub81110-16200
main81110-80214i198605-198801
LH TRAFFIC SPEC(*46),W/HALOGEN
sub81110-16200
main81110-80215i198205-198801
HALOGEN,YELLOW
sub81110-16210
main81110-80219i198208-198408
HALOGEN
main81110-80219i198308-198408
BAHAMA SPEC,HALOGEN
main81110-80221i198308-198408
BAHAMA SPEC
main81110-80221i198208-198408
main81110-80223i198208-198605
HALOGEN,YELLOW
sub81110-16300
main81110-80303i198208-198605
sub81110-16320
main81110-80304i198208-198605
HALOGEN,WHITE
sub81110-16330
main81110-80422i198408-198605
sub81110-16151
main81110-80423i198408-198605
HALOGEN
sub81110-16161
main81110-80426i198408-198605
LH TRAFFIC SPEC(*46)
sub81110-16281
main81110-80427i198408-198605
HALOGEN
sub81110-16261
main81110-80427i198408-198605
LH TRAFFIC SPEC(*46),W/HALOGEN
sub81110-16261
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13013i198205-198801
12V 45/40W,WHITE,12V 45/40W
main90981-13015i198205-198801
12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE
sub90981-13058
main90981-13015i198308-198408
12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,BAHAMA
sub90981-13058
main90981-13016i198205-198801
12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW
sub90981-13H01
main90981-13022i198205-198801
12V 65/60W,WHITE,12V 65/60W
81115ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH
main81105-16150i198308-198408
BAHAMA SPEC
sub81105-16151
main81105-16150i198205-198408
sub81105-16151
main81105-16160i198205-198408
HALOGEN
sub81105-16161
main81105-16160i198308-198408
BAHAMA SPEC,HALOGEN
sub81105-16161
main81135-16170i198311-198801
NATO SPEC
main81135-16170i198205-198801
main81135-16180i198205-198801
HALOGEN
main81135-16180i198311-198801
NATO SPEC,HALOGEN
main81135-16190i198605-198801
LH TRAFFIC SPEC(*46)
main81135-16190i198205-198801
main81135-16200i198205-198801
HALOGEN
main81135-16200i198605-198801
LH TRAFFIC SPEC(*46),W/HALOGEN
81116ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH
main81106-16150i198308-198408
BAHAMA SPEC
sub81106-16151
main81106-16150i198205-198408
sub81106-16151
main81106-16160i198308-198408
BAHAMA SPEC,HALOGEN
sub81106-16161
main81106-16160i198205-198408
HALOGEN
sub81106-16161
main81175-16170i198205-198801
main81175-16170i198311-198801
NATO SPEC
main81175-16180i198311-198801
NATO SPEC,HALOGEN
main81175-16180i198205-198801
HALOGEN
main81175-16190i198605-198801
LH TRAFFIC SPEC(*46)
main81175-16190i198205-198801
main81175-16200i198205-198801
HALOGEN
main81175-16200i198605-198801
LH TRAFFIC SPEC(*46),W/HALOGEN
81117PACKING, HEADLAMP HOUSING
main81136-32030i198205-198408
main81136-32030i198308-198408
BAHAMA SPEC
main81147-16180i198205-198801
81118NUT, SPRING
main81128-16150i198308-198408
BAHAMA SPEC
main81128-16150i198205-198408
main90183-04016i198205-198705
sub90183-04020
main90183-04020i198705-198801
81119SCREW, HEADLAMP
main81119-14880i198408-198605
main81119-16150i198308-198408
BAHAMA SPEC
main81119-16150i198205-198408
main93540-54012i198205-198801
81136ARIM, HEADLAMP, RH
main81112-16150i198205-198605
main81112-16150i198308-198408
BAHAMA SPEC
main81136-16180i198205-198801
81138SPRING, HEADLAMP
main81138-14880i198308-198408
BAHAMA SPEC,SILVER
main81138-14880i198205-198408
SILVER
main81138-20550i198205-198801
main81138-32030i198205-198408
BLACK
main81138-32030i198308-198408
BAHAMA SPEC,BLACK
81144COVER, HEADLAMP, NO.1
main81139-14880i198205-198605
main81139-14880i198308-198408
BAHAMA SPEC
main81139-30481i198205-198801
81146LENS, HEADLAMP, RH
main81135-32030i198308-198408
BAHAMA SPEC
main81135-32030i198205-198408
main81146-16170i198311-198801
NATO SPEC
main81146-16170i198205-198801
main81146-16180i198205-198801
HALOGEN
main81146-16180i198311-198801
NATO SPEC,HALOGEN
main81146-16190i198605-198801
LH TRAFFIC SPEC(*46)
main81146-16190i198205-198801
main81146-16200i198605-198801
LH TRAFFIC SPEC(*46),W/HALOGEN
main81146-16200i198205-198801
HALOGEN
81150HEADLAMP ASSY, LH
main81150-80206i198308-198408
BAHAMA SPEC
sub81150-16150
main81150-80206i198205-198408
sub81150-16150
main81150-80207i198308-198408
BAHAMA SPEC,HALOGEN
sub81150-16160
main81150-80207i198205-198408
HALOGEN
sub81150-16160
main81150-80208i198205-198801
sub81150-16170
main81150-80208i198311-198801
NATO SPEC
sub81150-16170
main81150-80209i198311-198801
NATO SPEC,HALOGEN
sub81150-16180
main81150-80209i198205-198801
HALOGEN,WHITE
sub81150-16180
main81150-80210i198605-198801
LH TRAFFIC SPEC(*46)
sub81150-16190
main81150-80210i198205-198801
sub81150-16190
main81150-80211i198605-198801
LH TRAFFIC SPEC(*46),W/HALOGEN
sub81150-16200
main81150-80211i198205-198801
HALOGEN
sub81150-16200
main81150-80212i198205-198801
HALOGEN,YELLOW
sub81150-16210
main81150-80216i198208-198408
HALOGEN
main81150-80216i198308-198408
BAHAMA SPEC,HALOGEN
main81150-80218i198308-198408
BAHAMA SPEC
main81150-80218i198208-198408
main81150-80220i198208-198605
HALOGEN,YELLOW
sub81150-16300
main81150-80300i198208-198605
sub81150-16320
main81150-80301i198208-198605
HALOGEN,WHITE
sub81150-16330
main81150-80414i198408-198605
sub81150-16151
main81150-80415i198408-198605
HALOGEN
sub81150-16161
main81150-80418i198408-198605
LH TRAFFIC SPEC(*46)
sub81150-16281
main81150-80419i198408-198605
LH TRAFFIC SPEC(*46),W/HALOGEN
sub81150-16261
main81150-80419i198408-198605
HALOGEN
sub81150-16261
81176ARIM, HEADLAMP, LH
main81152-16150i198308-198408
BAHAMA SPEC
main81152-16150i198205-198605
main81176-16180i198205-198801
81186LENS, HEADLAMP, LH
main81176-32030i198308-198408
BAHAMA SPEC
main81176-32030i198205-198408
main81186-16170i198205-198801
main81186-16170i198311-198801
NATO SPEC
main81186-16180i198311-198801
NATO SPEC,HALOGEN
main81186-16180i198205-198801
HALOGEN
main81186-16190i198605-198801
LH TRAFFIC SPEC(*46)
main81186-16190i198205-198801
main81186-16200i198205-198801
HALOGEN
main81186-16200i198605-198801
LH TRAFFIC SPEC(*46),W/HALOGEN
9017906115
main90179-06115
9017906132
main90179-06132

18 parts on this diagram · 3 diagrams in section
