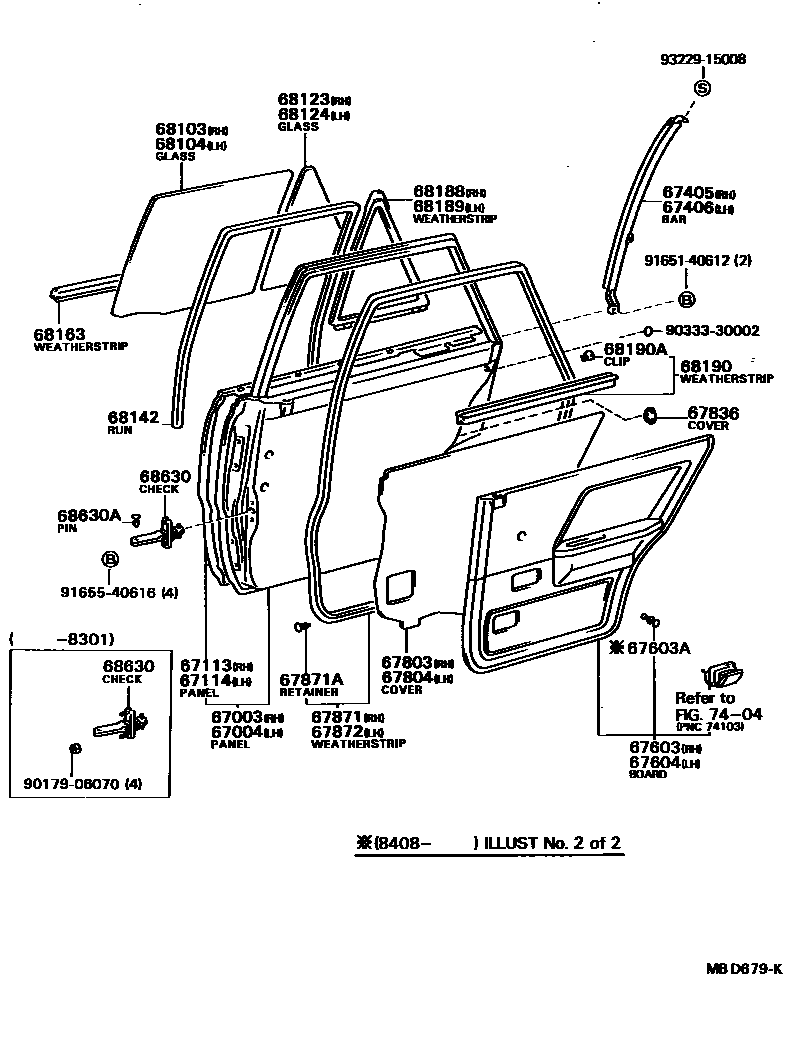

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-16120iAL20,21..5DS198205-198408

main67003-16140iAL25198208-198801

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-16120iAL20,21..5DS198205-198408

main67004-16140iAL25198208-198801

67113PANEL, REAR DOOR, OUTER RH

main67113-16040iAL25;AL20,21..5DS198205-198801

67114PANEL, REAR DOOR, OUTER LH

main67114-16040iAL25;AL20,21..5DS198205-198801

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-16020iAL20,21..5DS198205-198408

main67407-16040iAL25198208-198801

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-16020iAL20,21..5DS198205-198408

main67408-16040iAL25198208-198801

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-16100-02iAL20,21..5DS..DLX198205-198408

DARK WINE,DARK WINE,TRIM3#

main67630-16100-03iAL25..DLX;AL20,21..5DS..DLX198205-198408

GRAY,GRAY,TRIM1#

main67630-16100-06iAL25..DLX;AL20,21..5DS..DLX198205-198408

BROWN,BROWN,TRIM4#

main67630-16110-02iAL20,21..5DS..GL198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67630-16110-03iAL20,21..5DS..GL198205-198408

GRAY,GRAY,TRIM1#

main67630-16110-06iAL25..SR5198308-198408

BROWN,BROWN,TRIM4#

main67630-16140-03iAL25..GEN; AL25..SR5198408-198605

GRAY,GRAY,TRIM1#; W/*SPS,GRAY,GRAY,TRIM1#

main67630-16140-05iAL25..GEN; AL25..SR5198408-198605

BEIGE,BEIGE,TRIM4#; W/*SPS,BEIGE,BEIGE,TRIM4#

main67630-16160-01iAL25..GEN198605-198801

PF SEAT,BLACK,BLACK,TRIM2#

main67630-16160-03iAL25..DLX198408-198605

GRAY,GRAY,TRIM1#

main67630-16160-05iAL25..DLX198408-198605

BEIGE,BEIGE,TRIM4#

main67630-16160-15iAL25..GEN198605-198801

PF SEAT,BEIGE,DARK BEIGE,TRIM4#

main67630-16170-03iAL25..EUR198408-198605

CASUAL SPEC(FB-C),GRAY,GRAY,TRIM1#

main67630-16170-05iAL25..EUR198408-198605

CASUAL SPEC(FB-C),BEIGE,BEIGE,TRIM4#

main67630-16270-03iAL25..GEN; AL25..SR5198605-198801

FB SEAT,GRAY,GRAY,TRIM2#; FB SEAT,W/*SPS,GRAY,GRAY,TRIM2#

main67630-16270-05iAL25..GEN; AL25..SR5198605-198801

FB SEAT,BEIGE,BEIGE,TRIM4#; FB SEAT,W/*SPS,BEIGE,BEIGE,TRIM4#

main67630-16310-03iAL25..EUR198606-198801

FB-D SEAT,GRAY,GRAY,TRIM2#

main67630-16340-03iAL25..EUR198605-198801

FB-C SEAT,GRAY,GRAY,TRIM2#

main67630-16340-05iAL25..EUR198605-198801

FB-C SEAT,BEIGE,BEIGE,TRIM4#

main67630-16350-01iAL25..DLX198605-198801

FB SEAT,BLACK,BLACK,TRIM2#

main67630-16350-05iAL25..DLX198605-198801

FB SEAT,BEIGE,BEIGE,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12020×18iAL25198408-198801

TYPE A

main67771-16020×18iAL25;AL20,21..5DS198205-198408

main67771-23010×2iAL25..EUR,GEN; AL25..SR5198408-198801

CASUAL SPEC OR W/*SPS,TYPE B; TYPE B

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-16110-02iAL20,21..5DS..DLX198205-198408

DARK WINE,DARK WINE,TRIM3#

main67640-16110-03iAL25..DLX;AL20,21..5DS..DLX198205-198408

GRAY,GRAY,TRIM1#

main67640-16110-06iAL25..DLX;AL20,21..5DS..DLX198205-198408

BROWN,BROWN,TRIM4#

main67640-16120-02iAL20,21..5DS..GL198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67640-16120-03iAL25..SR5198308-198408

GRAY,GRAY,TRIM1#

main67640-16120-06iAL25..SR5198308-198408

BROWN,BROWN,TRIM4#

main67640-16150-03iAL25..GEN; AL25..SR5198408-198605

GRAY,GRAY,TRIM1#; W/*SPS,GRAY,GRAY,TRIM1#

main67640-16150-05iAL25..GEN; AL25..SR5198408-198605

BEIGE,BEIGE,TRIM4#; W/*SPS,BEIGE,BEIGE,TRIM4#

main67640-16170-01iAL25..GEN198605-198801

PF SEAT,BLACK,BLACK,TRIM2#

main67640-16170-03iAL25..DLX198408-198605

GRAY,GRAY,TRIM1#

main67640-16170-05iAL25..DLX198408-198605

BEIGE,BEIGE,TRIM4#

main67640-16170-15iAL25..GEN198605-198801

PF SEAT,BEIGE,DARK BEIGE,TRIM4#

main67640-16180-03iAL25..EUR198408-198605

CASUAL SPEC(FB-C),GRAY,GRAY,TRIM1#

main67640-16180-05iAL25..EUR198408-198605

CASUAL SPEC(FB-C),BEIGE,BEIGE,TRIM4#

main67640-16280-03iAL25..GEN; AL25..SR5198605-198801

FB SEAT,GRAY,GRAY,TRIM2#; FB SEAT,W/*SPS,GRAY,GRAY,TRIM2#

main67640-16280-05iAL25..GEN; AL25..SR5198605-198801

FB SEAT,BEIGE,BEIGE,TRIM4#; FB SEAT,W/*SPS,BEIGE,BEIGE,TRIM4#

main67640-16320-03iAL25..EUR198606-198801

FB-D SEAT,GRAY,GRAY,TRIM2#

main67640-16350-03iAL25..EUR198605-198801

FB-C SEAT,GRAY,GRAY,TRIM2#

main67640-16350-05iAL25..EUR198605-198801

FB-C SEAT,BEIGE,BEIGE,TRIM4#

main67640-16360-01iAL25..DLX198605-198801

FB SEAT,BLACK,BLACK,TRIM2#

main67640-16360-05iAL25..DLX198605-198801

FB SEAT,BEIGE,BEIGE,TRIM4#

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-16050iAL25;AL20,21..5DS198205-198408

main67841-16060iAL25198408-198505

main67841-16070iAL25..ARL,GEN198505-198801

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67842-16020iAL25198205-198505

main67842-16040iAL25..ARL,GEN198505-198801

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12030iAL25..ARL,GEN198509-198801

67871WEATHERSTRIP, REAR DOOR, RH

main67871-16050iAL20,21..5DS198205-198408

main67871-16090iAL25198208-198408

main67871-16180iAL25198408-198801

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040×38iAL25;AL20,21..5DS198205-198801

67872WEATHERSTRIP, REAR DOOR, LH

main67872-16050iAL20,21..5DS198205-198408

main67872-16090iAL25198208-198408

main67872-16180iAL25198408-198801

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-16030iAL20,21..5DS..DLX..EUR198205-198408

*TEM,T=3.5

main68113-16040iAL20,21..5DS198205-198408

*TT,T=3.5

main68113-16070iAL25198208-198801

*TT,T=3.5,*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-16030iAL20,21..5DS..DLX..EUR198205-198408

*TEM,T=3.5

main68114-16040iAL20,21..5DS198205-198408

*TT,T=3.5

main68114-16070iAL25198208-198801

*TT,T=3.5,*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-16030iAL20,21..5DS..DLX..EUR198205-198408

*TEM,T=3.5

main68123-16040iAL20,21..5DS198205-198408

*TT,T=3.5

main68123-16070iAL25198208-198801

*TT,T=3.5,*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-16030iAL20,21..5DS..DLX..EUR198205-198408

*TEM,T=3.5

main68124-16040iAL20,21..5DS198205-198408

*TT,T=3.5

main68124-16070iAL25198208-198801

*TT,T=3.5,*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-16020×2iAL25;AL20,21..5DS198205-198408

main68142-16030×2iAL25198408-198801

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-16020iAL25..DLX;AL20,21..5DS..DLX198205-198801

RH

main68230-16010iAL25..DLX;AL20,21..5DS..DLX198205-198801

LH

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-16020iAL20,21..5DS198205-198408

main68188-16040iAL25198208-198801

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-16020iAL20,21..5DS198205-198408

main68189-16040iAL25198208-198801

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-16030iAL25;AL20,21..5DS198205-198801

RH

main68240-16030iAL25;AL20,21..5DS198205-198801

LH

68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030×8iAL25;AL20,21..5DS198205-198801

68630CHECK ASSY, REAR DOOR

main68630-16020×2iAL25;AL20,21..5DS198205-198801

68630APIN(FOR REAR DOOR CHECK)

main68617-12010×2iAL25;AL20,21..5DS198401-198507

main68617-22010×2iAL25;AL20,21..5DS198205-198401

main68617-90A00×2iAL25198507-198801

7404ASH RECEPTACLE

→ Go to FIG 74-04

9017906070

main90179-06070

9033330002

main90333-30002

9165140612

main91651-40612

9165540616

main91655-40616

9322915008

main93229-15008

33 parts on this diagram · 2 diagrams in section
