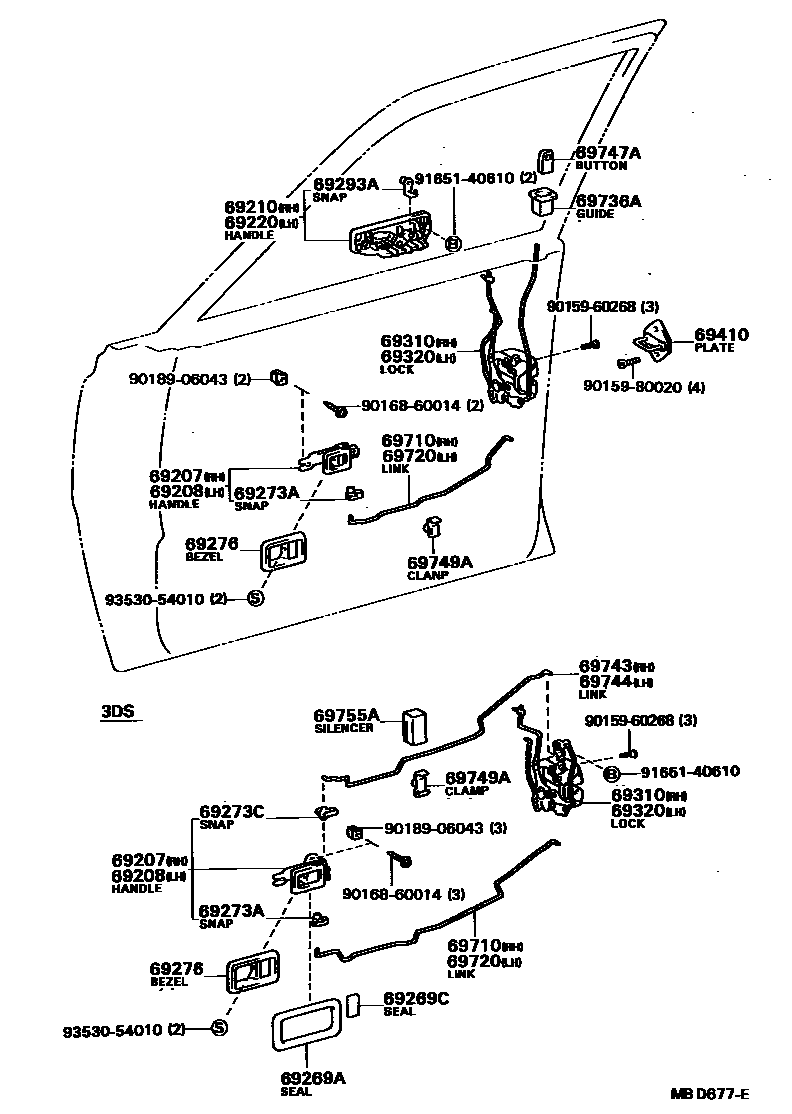

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
LH
RH
RH
LH
69273CSNAP, DOOR INSIDE HANDLE LINK
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
69310LOCK ASSY, FRONT DOOR, RH
MITSUI
69320LOCK ASSY, FRONT DOOR, LH
MITSUI
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
MITSUI
MITSUI
AISHIN
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69736AGUIDE, FRONT DOOR LOCK LINK
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69755ASILENCER, FRONT DOOR LOCK LINK
9015960268
main90159-60268
9015980020
main90159-80020
9016860014
main90168-60014
9018906043
main90189-06043
9165140610
main91651-40610
9353054010
main93530-54010
27 parts on this diagram · 1 diagram in section
