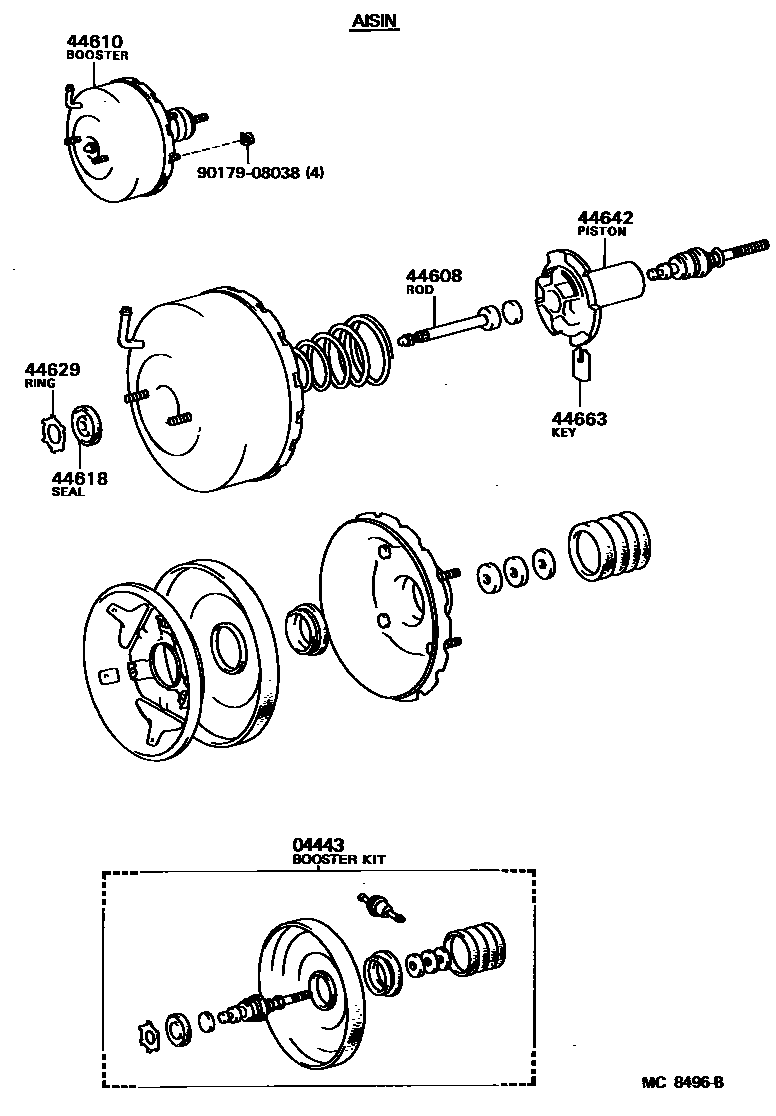

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-16041iAL25..RHD..GEN198408-198604

AISIN

main04443-16050iAL20..RHD198205-198408

JKC

main04443-16060iAL25..LHD..GEN198208-198801

main04443-16070iAL20..LHD..GEN198205-198408

AISIN,SWEDEN SPEC

sub04443-16071

main04443-16080iAL25..RHD..(ARL,EUR)198208-198408

main04443-16081iAL25..RHD..(ARL,EUR)198408-198801

main04443-16090iAL25..SDZ198208-198408

SWEDEN SPEC

main04443-16091iAL25..LHD..EUR198605-198801

AISIN

main04443-16100iAL25..LHD..EUR198208-198801

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iAL25..SDZ198408-198801

AISIN

main44606-32010iAL25..SDZ198208-198408

AISIN,SWEDEN SPEC

main44608-32020iAL20..RHD;AL20,21..LHD..EUR198205-198408

JKC

44610BOOSTER ASSY, BRAKE

main44610-16051iAL25..RHD..GEN198408-198604

AISIN

main44610-16060iAL20..RHD198205-198408

main44610-16070iAL25..LHD..GEN198208-198801

main44610-16080iAL21..3DS..DLX198208-198408

AISIN,SWEDEN SPEC

sub44610-16081

main44610-16090iAL25..RHD..(ARL,EUR)198208-198408

main44610-16091iAL25..RHD..(ARL,EUR)198408-198801

main44610-16101iAL25..LHD..EUR198605-198801

AISIN

main44610-16110iAL25..SDZ198208-198408

SWEDEN SPEC

44618SEAL, BOOSTER BODY

main44621-28120iAL20..RHD..EUG198205-198408

44629RING, CIRCULAR INTERNAL

main44628-28120iAL20..RHD..EUG198205-198408

44642PISTON, BRAKE BOOSTER

main44642-16050iAL21..3DS..DLX198208-198408

SWEDEN SPEC

44663KEY, VALVE STOPPER

main44635-28120iAL20..RHD..EUG198205-198408

9017908038

main90179-08038

8 parts on this diagram · 3 diagrams in section
