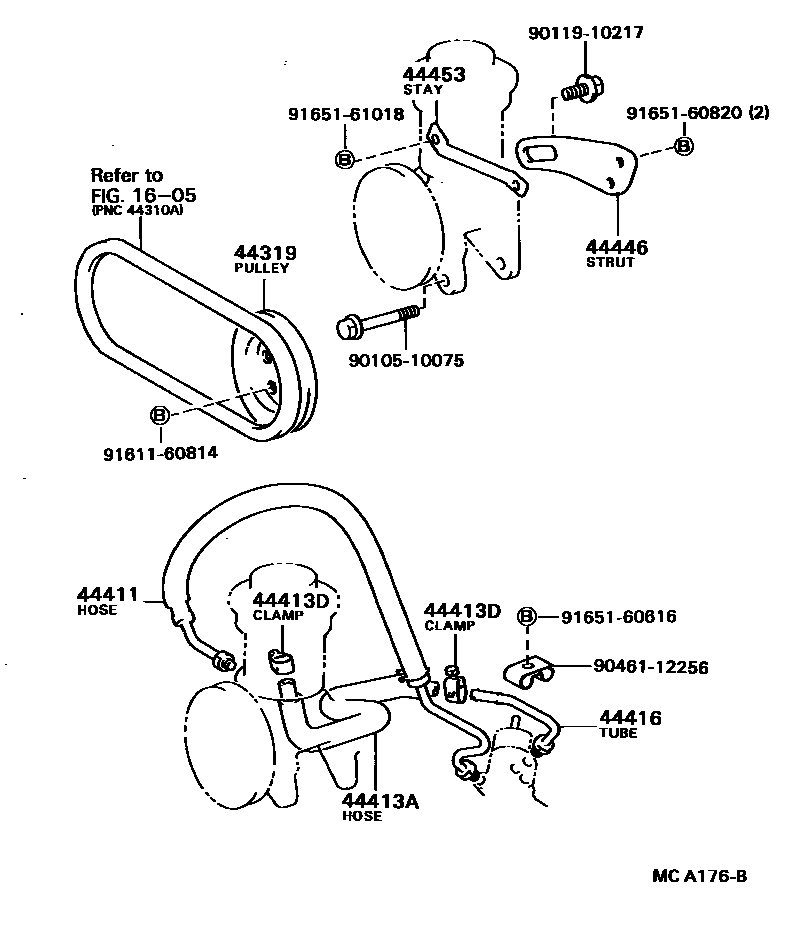

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44319PULLEY, VANE PUMP DRIVE

main44319-12011iAL25..ARL198308-198801

44411HOSE, PRESSURE FEED

main44411-16011iAL25..ARL198308-198406

main44411-16020iAL25..ARL198406-198801

44413AHOSE(FOR RETURN TUBE OUTLET)

main44412-16010iAL25..ARL198308-198801

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001×2iAL25..ARL198308-198801

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-16010iAL25..ARL198308-198801

44446STRUT, ADJUSTING

main44446-16010iAL25..ARL198308-198801

44453STAY, PUMP, FRONT

main44453-16010iAL25..ARL198208-198405

main44453-16011iAL25..ARL198405-198801

9010510075

main90105-10075

9011910217

main90119-10217

9046112256

main90461-12256

9161160814

main91611-60814

9165160616

main91651-60616

9165160820

main91651-60820

9165161018

main91651-61018

15 parts on this diagram · 1 diagram in section
