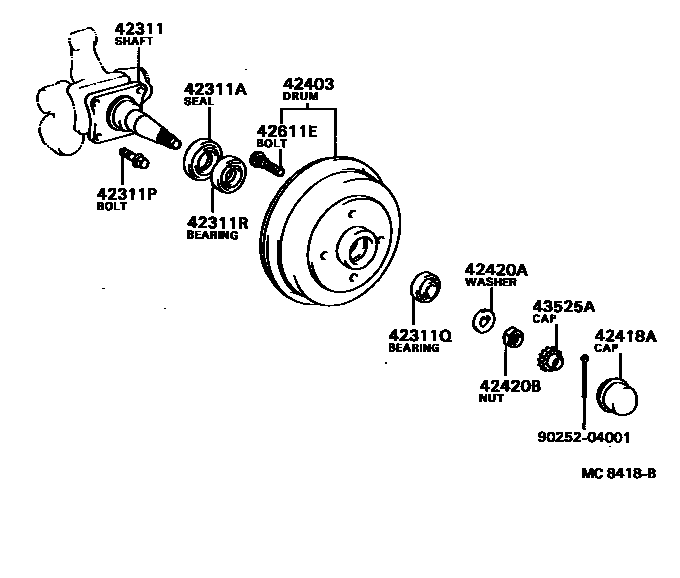

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311SHAFT, REAR AXLE

main42311-16020×2iAL20,21198205-198408

main42311-16030×2iAL25198208-198801

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-36001×2iAL20,21198205-198408

main90311-42055×2iAL25198208-198801

42311PBOLT(FOR REAR AXLE SHAFT)

main90105-10006×8iAL20,21198205-198408

42311QBEARING(FOR REAR AXLE SHAFT OUTER)

main90368-17017×2iAL20,21198205-198408

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90366-25003×2iAL20,21198205-198408

42403DRUM SUB-ASSY, REAR BRAKE

main42403-16020×2iAL20,21198205-198408

main42431-16030×2iAL25198208-198408

main42431-16031×2iAL25198408-198801

42418ACAP, REAR HUB GREASE

main43514-12010×2iAL20,21198205-198408

42420AWASHER, CLAW (FOR REAR AXLE SHAFT)

main90214-16010×2iAL20,21198205-198408

42420BNUT (FOR REAR AXLE SHAFT)

main90170-16137×2iAL20,21198205-198408

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iAL25..EUR,GEN198208-198305

main90942-02047×8iAL20,21198205-198408

43525ACAP, REAR WHEEL ADJUSTING LOCK

main43525-20011×2iAL20,21198205-198408

9025204001

main90252-04001

12 parts on this diagram · 2 diagrams in section
