Toyota 131210 — PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37110ABOLT (FOR PROPELLER SHAFT)
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37239INSULATOR, CENTER SUPPORT BEARING HEAT
37331COVER, SLIDING SHAFT DUST
9017008007
9017008015
9451200800
16 parts on this diagram · 1 diagram in section

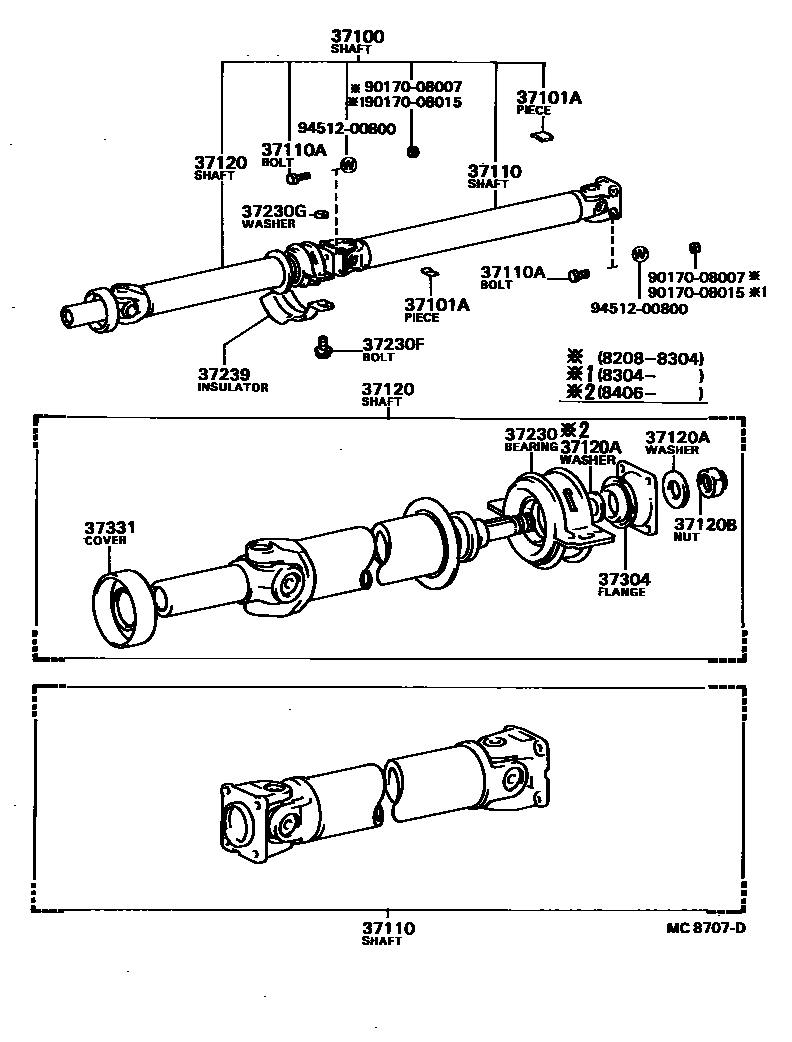

PROPELLER SHAFT & UNIVERSAL JOINT for Toyota 131210
This section contains 16 genuine Toyota parts for the PROPELLER SHAFT & UNIVERSAL JOINT system of the Toyota 131210. Key components include: SHAFT ASSY, PROPELLER W/CENTER BEARING, PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT), SHAFT ASSY, PROPELLER, BOLT (FOR PROPELLER SHAFT), SHAFT ASSY, PROPELLER INTERMEDIATE.
