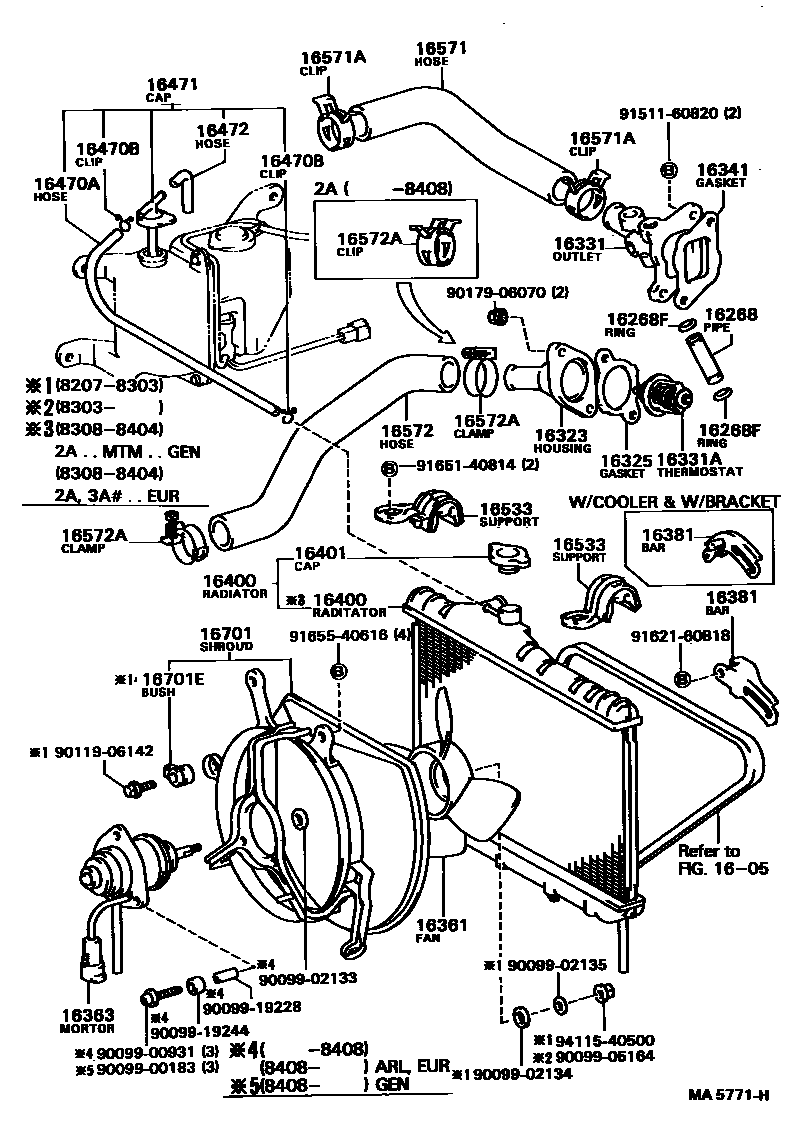

RADIATOR & WATER OUTLET

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

16268PIPE, WATER BY-PASS, NO.1

main16268-15010i2A,3A#..AL2#198205-198503

main16268-15011i3A#..AL25198503-198801

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013×2i2A,3A#..AL2#198205-198801

16323HOUSING, WATER INLET

main16323-15020i2A,3A#..AL2#198205-198801

16325GASKET, WATER INLET HOUSING, NO.1

main16325-70021i2A,3A#..AL2#198205-198801

16331OUTLET, WATER

main16331-15040i3AC..AL25..EUR198605-198801

main16331-15050i2A,3A#..AL2#198205-198605

16331ATHERMOSTAT

main90916-03046i2A,3A#..AL2#198205-198801

*WAX 82-95,*WAX 82-95

16341GASKET, WATER OUTLET

main16341-15011i2A,3A#..AL2#198205-198801

16361FAN

main16361-15030i2A,3A#..AL2#..EUR,GEN198205-198303

main16361-15031i2A,3A#..AL2#198303-198408

main16361-15060i3A..AL25..GEN198408-198801

16363MOTOR, COOLING FAN

main16363-15070i2A,3A#..AL2#198205-198408

main16363-15100i3A..AL25..GEN198408-198801

16381BAR, FAN BELT ADJUSTING

main16381-15030i2A,3A#..AL2#198205-198801

main88437-16030i3A..AL25..LHD; 3A..AL25..RHD..GEN198408-198801

W/COOLER; W/COOLER & W/BRACKET

main88437-16040i3A#..AL25..RHD..(ARL,GEN)198408-198801

W/COOLER

16400RADIATOR ASSY

main16400-15120i3A#..AL25198408-198605

main16400-15130i2A..AL20..3FC..GEN198205-198408

main16400-15140i2A,3AC..AL20,21..MTM..EUR; 3A#..AL25..EUR198404-198407

main16400-15150i2A,3AC..AL20,21..3FC..EUR198404-198408

main16410-15140i2A,3AC..AL20,21..MTM..EUR; 3A#..AL25..EUR198308-198404

main16410-15150i2A,3AC..AL20,21..3FC..EUR198308-198404

16401CAP SUB-ASSY, RADIATOR

main16401-63010i2A,3A#..AL2#198205-198801

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33091i3A#..AL25..ARL,GEN; 3A#..AL25..EUR198408-198801

W/RR WIPER

main90099-33392i2A,3A#..AL2#..EUR; 2A,3A#..AL20,25..ARL,GEN198208-198408

W/RR WIPER

main90445-12043i2A,3A#..AL20,25..ARL,GEN198205-198801

L=600(*H,L=360)

main90445-12905i2A..AL20..EUG; 2A..AL20..GEN198205-198208

L=600(*H,L=450); L=600(*H,L=450),W/RR WIPER

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i2A,3A#..AL2#198205-198801

16471CAP SUB-ASSY, RESERVE TANK

main16405-15010i2A,3A#..AL20,25..ARL,GEN198205-198801

main16405-15020i2A,3A#..AL2#..EUR; 2A,3A#..AL20,25..ARL,GEN198205-198801

W/RR WIPER

16472HOSE, BREATHER

main85338-16010i2A..AL20198205-198208

main85338-16020i2A,3A#..AL2#198208-198801

16533SUPPORT, RADIATOR, UPPER

main16505-15010i2A,3A#..AL2#198205-198502

RH

main16505-15040i3A#..AL25198502-198801

RH

main16506-15010i2A,3A#..AL2#198205-198502

LH

main16506-15030i3A#..AL25198502-198801

LH

16571HOSE, RADIATOR, INLET

main16571-15081i2A,3A#..AL2#198205-198408

main16571-15082i3A#..AL25198408-198801

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001×2i2A,3A#..AL2#198205-198708

main90467-34003×2i3A#..AL25198708-198801

16572HOSE, RADIATOR, OUTLET

main16572-15112i3AC..AL25..ARL198308-198801

W/PS

main16572-15120i2A,3A#..AL2#198205-198801

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34001i2A..AL20198205-198408

WATER INLET SIDE

main90467-34003×2i3A#..AL25198708-198801

main96111-10400×2i3A#..AL21,25198208-198708

16701SHROUD SUB-ASSY, FAN

main16711-15080i2A,3A#..AL2#..EUR,GEN198205-198303

main16711-15081i2A,3A#..AL2#198303-198408

main16711-15170i3A..AL25..GEN198408-198711

main16711-15171i3A..AL25..GEN198711-198801

16701EBUSH(FOR FAN SHROUD)

main90385-12001i2A,3A#..AL2#..EUR,GEN198207-198303

9009900183

main90099-00183

9009900931

main90099-00931

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009905164

main90099-05164

9009919228

main90099-19228

9009919244

main90099-19244

9011906142

main90119-06142

9017906070

main90179-06070

9151160820

main91511-60820

9162160818

main91621-60818

9165140814

main91651-40814

9165540616

main91655-40616

9411540500

main94115-40500

39 parts on this diagram · 2 diagrams in section
