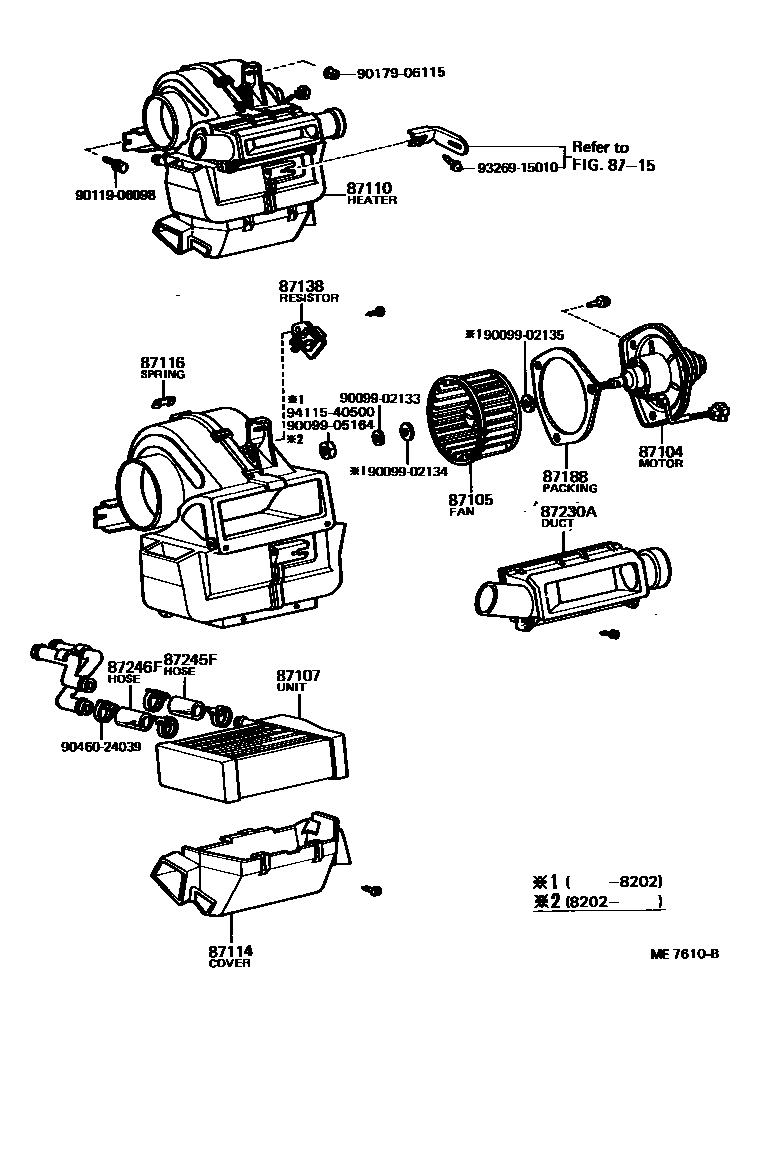

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-16030iAL11..LHD197901-198204

main87104-16040iAL11..EUR; AL11..LHD..GEN197901-198204

W/COOLER; W/HEAVY DUTY HEATER

main87104-16060iAL11..RHD197901-198204

main88550-16010iAL11..RHD197901-198008

W/COOLER

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12030iAL11..RHD197901-198204

main87105-16020iAL11..EUR; AL11..LHD197901-198204

W/HEAVY DUTY HEATER

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-16010iAL11..RHD197901-198001

main87107-16020iAL11..LHD197901-198001

main87107-16021iAL11..LHD198001-198204

main87107-16030iAL11..EUR197906-198204

W/HEAVY DUTY HEATER

main87107-16050iAL11..RHD198001-198204

87110HEATER ASSY

main87110-16011iAL11..RHD197901-198001

main87110-16012iAL11..RHD198001-198008

main87110-16013iAL11..RHD198008-198204

87114COVER, HEATER

main87114-16010iAL11..RHD197901-198204

main87114-16030iAL11..LHD197901-198204

main87114-16040iAL11..EUR197901-198204

W/RR DUCT

87116SPRING, HEATER CASE FASTENING

main87116-14010×6iAL11197901-198204

87138RESISTOR, HEATER BLOWER

main87138-16020iAL11..RHD197901-198004

main87138-16021iAL11..RHD198008-198204

main87138-16030iAL11..LHD197901-198004

main87138-16031iAL11..LHD198008-198204

main87138-16040iAL11..EUR197901-198004

W/HEAVY DUTY HEATER

main87138-16041iAL11..EUR; AL11..LHD198008-198204

W/COOLER; W/HEAVY DUTY HEATER

main87138-16050iAL11..RHD197901-198008

W/COOLER

main87138-16060iAL11..LHD198004-198008

main87138-16070iAL11..EUR198004-198008

W/HEAVY DUTY HEATER

main87138-16080iAL11..RHD198004-198008

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87188PACKING, HEATER BLOWER MOTOR

main87128-22010iAL11..RHD197901-198204

87230ADUCT ASSY, HEATER AIR

main87201-16010iAL11..RHD197901-198204

87245FHOSE, HEATER WATER, INLET F

main99552-30035iAL11..RHD197901-198204

*H,L=35

87246FHOSE, HEATER WATER, OUTLET F

main99552-30035iAL11..RHD197901-198204

*H,L=35

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009905164

main90099-05164

9011906098

main90119-06098

9017906115

main90179-06115

9046024039

main90460-24039

9326915010

main93269-15010

9411540500

main94115-40500

21 parts on this diagram · 3 diagrams in section
