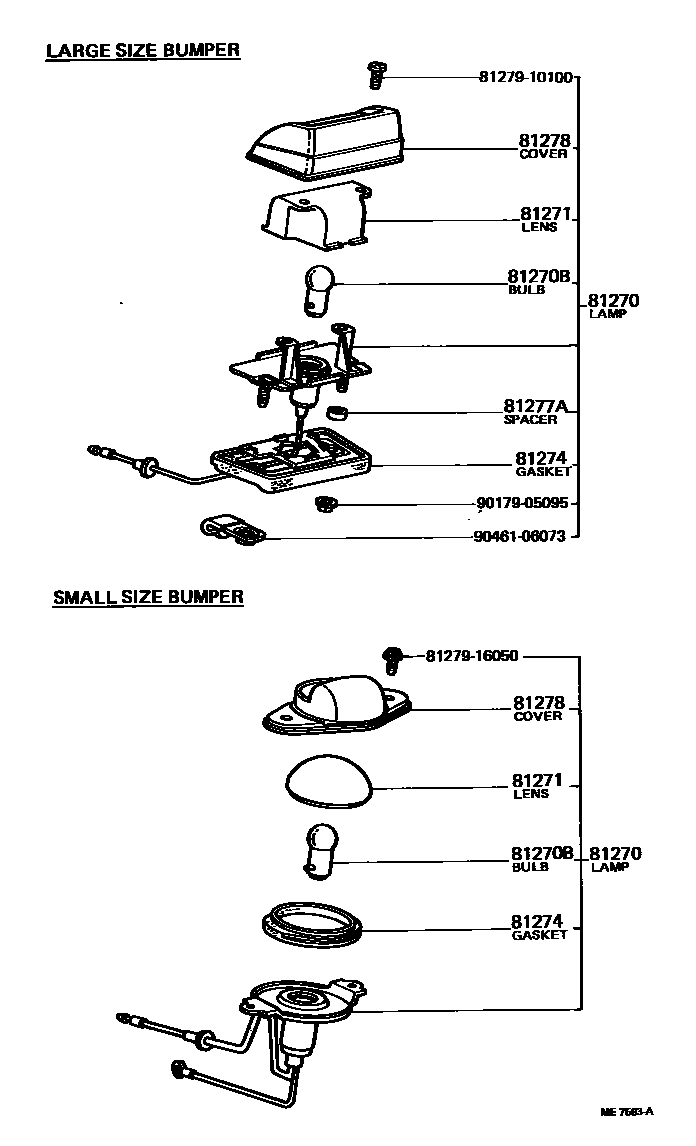

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-19525×2iAL11197901-197908

BLACK,W/LARGE SIZE BUMPER

main81270-19526iAL11197908-198008

RH,BLACK,W/LARGE SIZE BUMPER

main81270-19535×2iAL11..DLX..GEN197901-198008

CHROME,W/LARGE SIZE BUMPER

main81270-19565×2iAL11..STD197901-197908

BLACK,W/SMALL SIZE BUMPER

main81270-19675iAL11..STD197908-198008

RH,BLACK,W/SMALL SIZE BUMPER

main81270-29535×2iAL11..DLX..GEN198008-198204

CHROME

main81270-29545×2iAL11198008-198204

BLACK

main81690-19105iAL11..STD197908-198008

LH,BLACK,W/SMALL SIZE BUMPER

main81690-19115iAL11197908-198008

LH,BLACK,W/LARGE SIZE BUMPER

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11050×2iAL11197901-198008

12V 5W,12V 5W

main99132-12050×2iAL11198008-198204

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-10080×2iAL11197901-198008

W/LARGE SIZE BUMPER

main81271-16050×2iAL11..STD197901-198008

W/SMALL SIZE BUMPER

main81271-22110×2iAL11198008-198204

81274GASKET, LICENSE PLATE LAMP BODY

main81272-16011×2iAL11197901-198008

W/LARGE SIZE BUMPER

main81272-16050iAL11..STD197901-198008

W/SMALL SIZE BUMPER

main81274-22110×2iAL11198008-198204

81277ASPACER, LICENSE PLATE LAMP GASKET, B

main81278-16010×4iAL11197901-198008

81278COVER, LICENSE PLATE LAMP

main81276-10100×2iAL11197901-198008

W/LARGE SIZE BUMPER

main81276-10101×2iAL11198008-198204

BLACK

main81276-16050×2iAL11..STD197901-198008

W/SMALL SIZE BUMPER

main81276-22110×2iAL11..DLX..GEN198008-198204

CHROME

8127910100WASHER, SIDE TURN SIGNAL LAMP

main81279-10100

8127916050WASHER, SIDE TURN SIGNAL LAMP

main81279-16050

9017905095

main90179-05095

9046106073

main90461-06073

10 parts on this diagram · 2 diagrams in section
