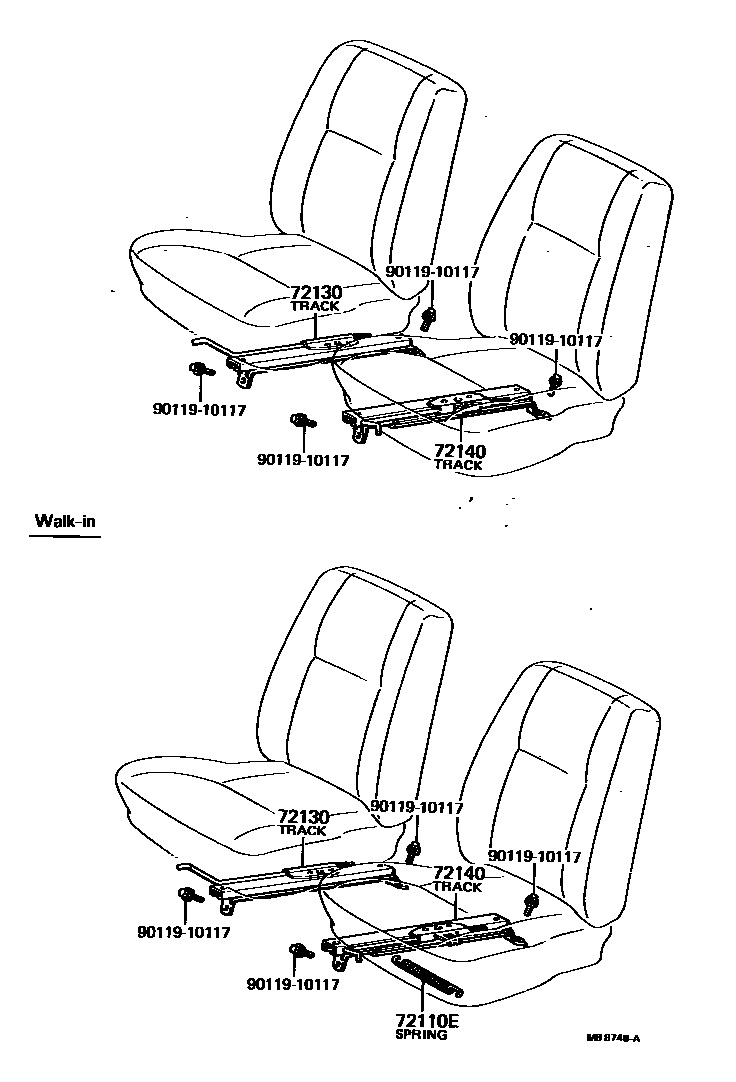

SEAT TRUCK

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18020iAL11..2DS,3DS198008-198204

main90506-20469iAL11..(2DS,3DS)..LHD197901-198008

72130TRACK ASSY, RH SEAT, INNER

main72130-16010iAL11..(2DS,3DS)..DLX..GEN; AL11..(2DS,3DS)..STD; AL11..4DS197901-198008

main72130-16011iAL11..(2DS,3DS)..GEN; AL11..(2DS,3DS)..STD; AL11..4DS198008-198204

main72130-16020iAL11..(2DS,3DS)..LHD197901-198008

W/WALK-IN

main72130-16021iAL11..(2DS,3DS)..LHD198008-198204

W/WALK-IN

72140TRACK ASSY, LH SEAT, INNER

main72140-16010iAL11197901-198008

main72140-16011iAL11198008-198204

main72140-16020iAL11..(2DS,3DS)..RHD197901-198008

W/WALK-IN

main72140-16021iAL11..3DS..RHD198008-198204

W/WALK-IN

9011910117

main90119-10117

4 parts on this diagram · 1 diagram in section
