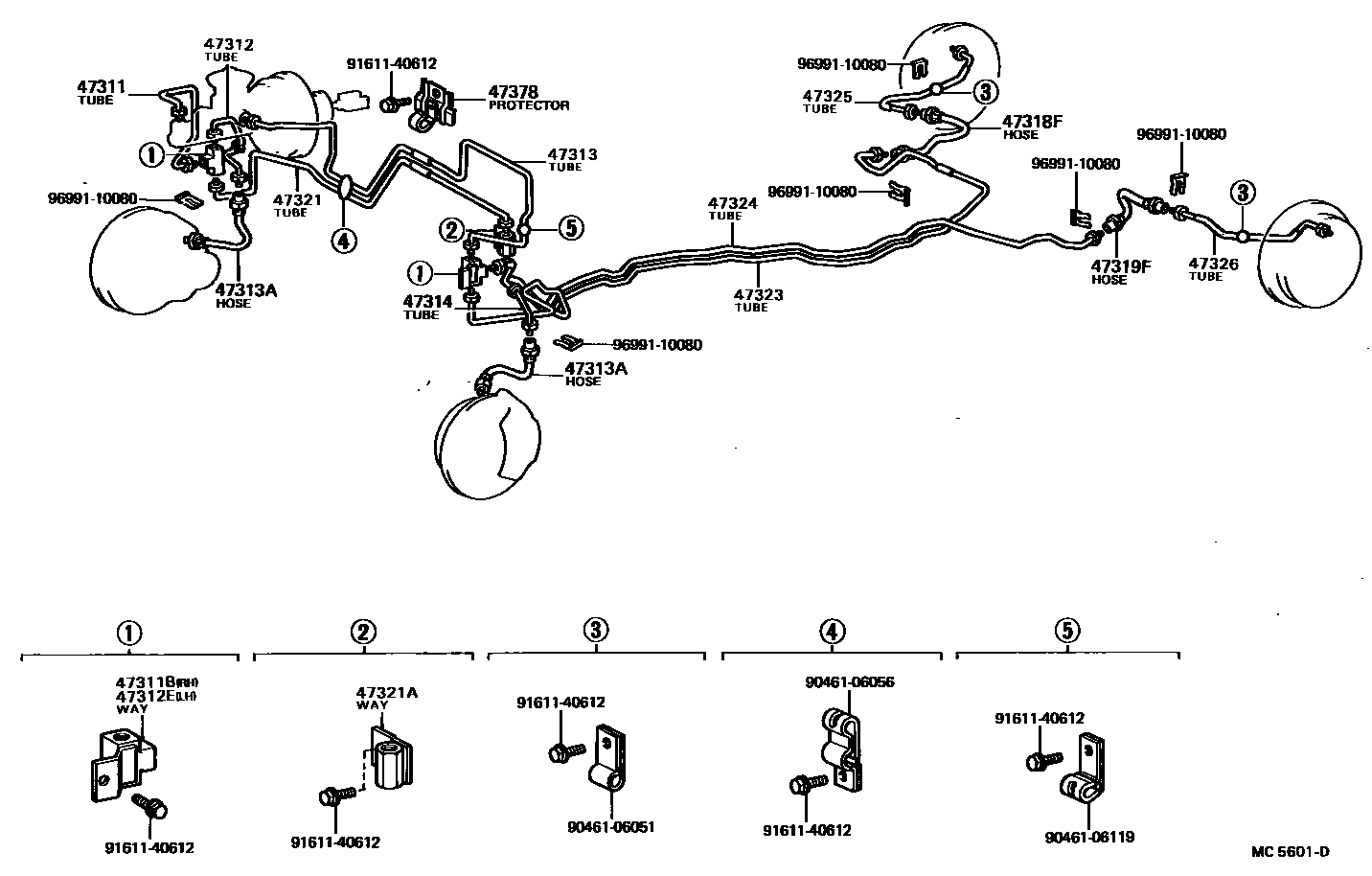

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-16010iAL11..RHD197901-198204

main47311-16020iAL11..LHD197901-198008

main47311-16030iAL11..EUR197901-198204

W/PV

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10004iAL11..EUR; AL11..RHD197901-198204

W/PV

main90413-10013iAL11..LHD197901-198008

47312TUBE, FRONT BRAKE, NO.2

main47312-16010iAL11..RHD197901-198204

main47312-16020iAL11..LHD..GEN198008-198204

main47312-16030iAL11..EUR197901-198204

W/PV

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10004iAL11197901-198204

47313TUBE, FRONT BRAKE, NO.3

main47321-16010iAL11..RHD197901-198204

main47321-16020iAL11..LHD197901-198204

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02364×2iAL11197901-198204

47314TUBE, FRONT BRAKE, NO.4

main47322-16010iAL11197901-198204

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02365iAL11197901-198204

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02365iAL11197901-198204

47321TUBE, REAR BRAKE, NO.1

main47313-16010iAL11..RHD197901-198204

main47313-16020iAL11..EUR197901-198204

W/PV

47321AWAY(FOR REAR BRAKE TUBE)

main90412-10041iAL11..RHD197901-198204

47323TUBE, REAR BRAKE, NO.3

main47314-16020iAL11..EUR197901-198204

W/PV

main47323-16010iAL11197901-198008

47324TUBE, REAR BRAKE, NO.4

main47313-16030iAL11..LHD197901-198008

main47314-16010iAL11..RHD197901-198204

main47325-16010iAL11..EUR197901-198204

W/PV

47325TUBE, REAR BRAKE, NO.5

main47324-16010iAL11197901-198204

47326TUBE, REAR BRAKE, NO.6

main47315-16010iAL11197901-198204

47378PROTECTOR, BRAKE TUBE

main47378-16010iAL11..EUR197901-198002

W/PV

main47378-16020iAL11..EUR198002-198204

W/PV

9046106051

main90461-06051

9046106056

main90461-06056

9046106119

main90461-06119

9161140612

main91611-40612

9699110080

main96991-10080

21 parts on this diagram · 2 diagrams in section
