AIR CLEANER

1709

17700CLEANER ASSY, AIR

main17700-14010i2A..AL11..EUR197901-198204

main17700-14020i2A..AL11..GEN197901-198204

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2A..AL11197901-198008

main90175-06005i2A..AL11198008-198204

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06019i2A..AL11198008-198204

L=45,S=12&16

main90116-06280i2A..AL11197901-198008

L=49,S=10&20

17705CAP SUB-ASSY, AIR CLEANER

main17705-15010i2A..AL11197901-198204

sub17705-15030

17706INLET SUB-ASSY, AIR CLEANER, NO.2

main17902-14010i2A..AL11197901-198204

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-15010i2A..AL11197901-198204

17841GASKET, FILTER ELEMENT

main17841-15010×2i2A..AL11197901-198204

17845GASKET, AIR CLEANER CAP

main17845-15010i2A..AL11197901-198204

sub17845-42010

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-63001i2A..AL11197901-198204

sub17848-10020

17881HOSE, AIR CLEANER, NO.1

main17881-34040i2A..AL11..EUR197901-198204

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10460i2A..AL11..EUR197901-198204

17882HOSE, AIR CLEANER, NO.2

main17881-15020i2A..AL11197901-198008

main17881-15021i2A..AL11198008-198204

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01005i2A..AL11197901-198204

9011906075

main90119-06075

9011906164

main90119-06164

9165140814

main91651-40814

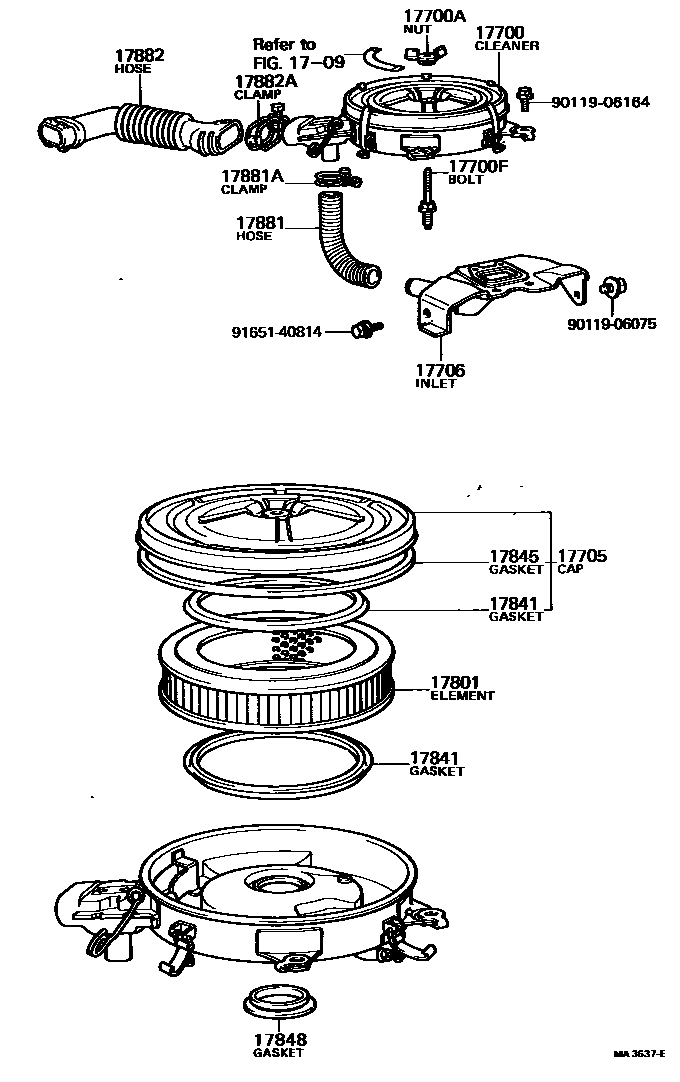

17 parts on this diagram · 1 diagram in section
