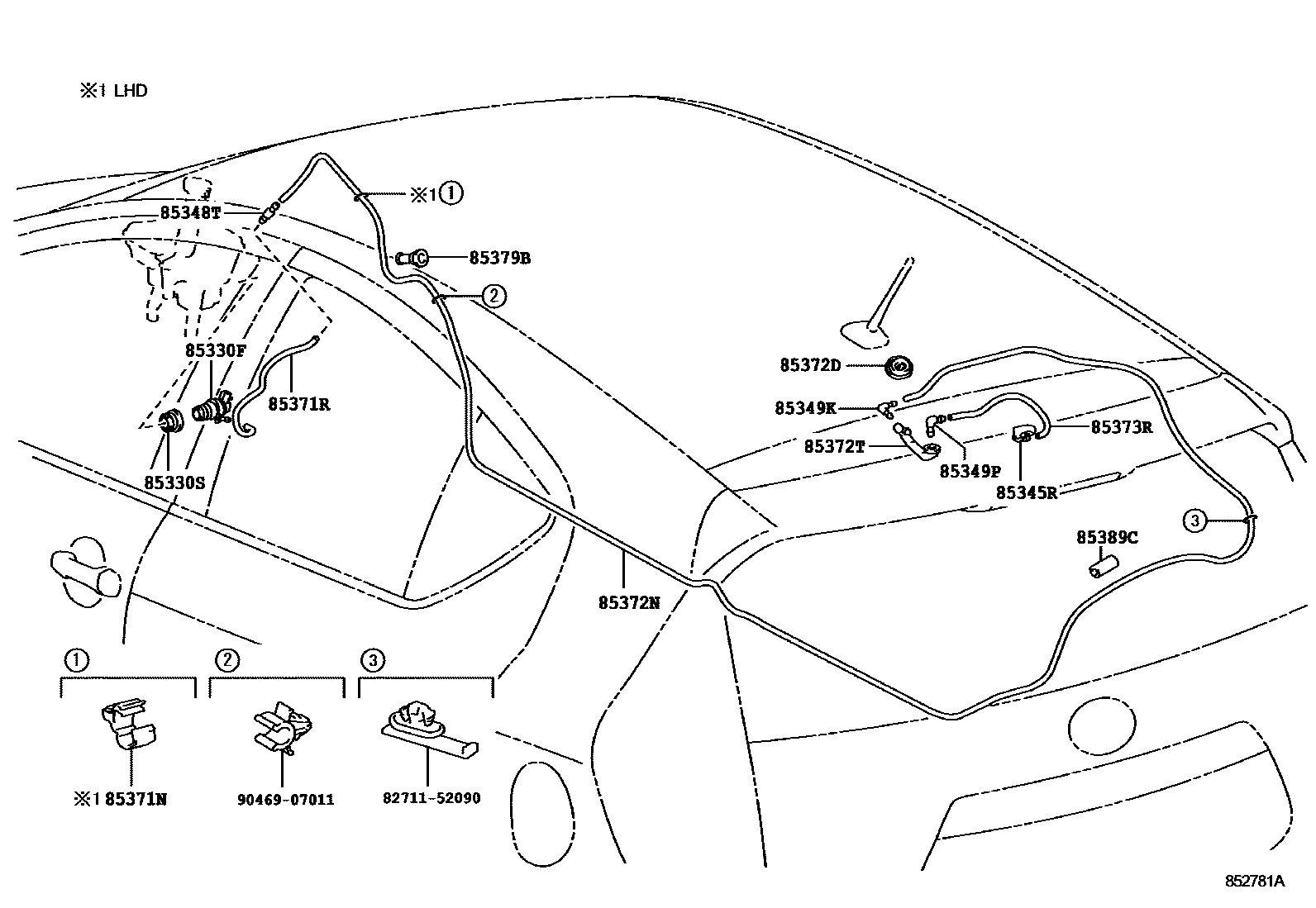

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=290); L=1450(*H,L=470),HEADLAMP-LED
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=4985(*H,L=4750)
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=210)
85379BGROMMET, WASHER, A
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
9046907011
main90469-07011
16 parts on this diagram · 2 diagrams in section
