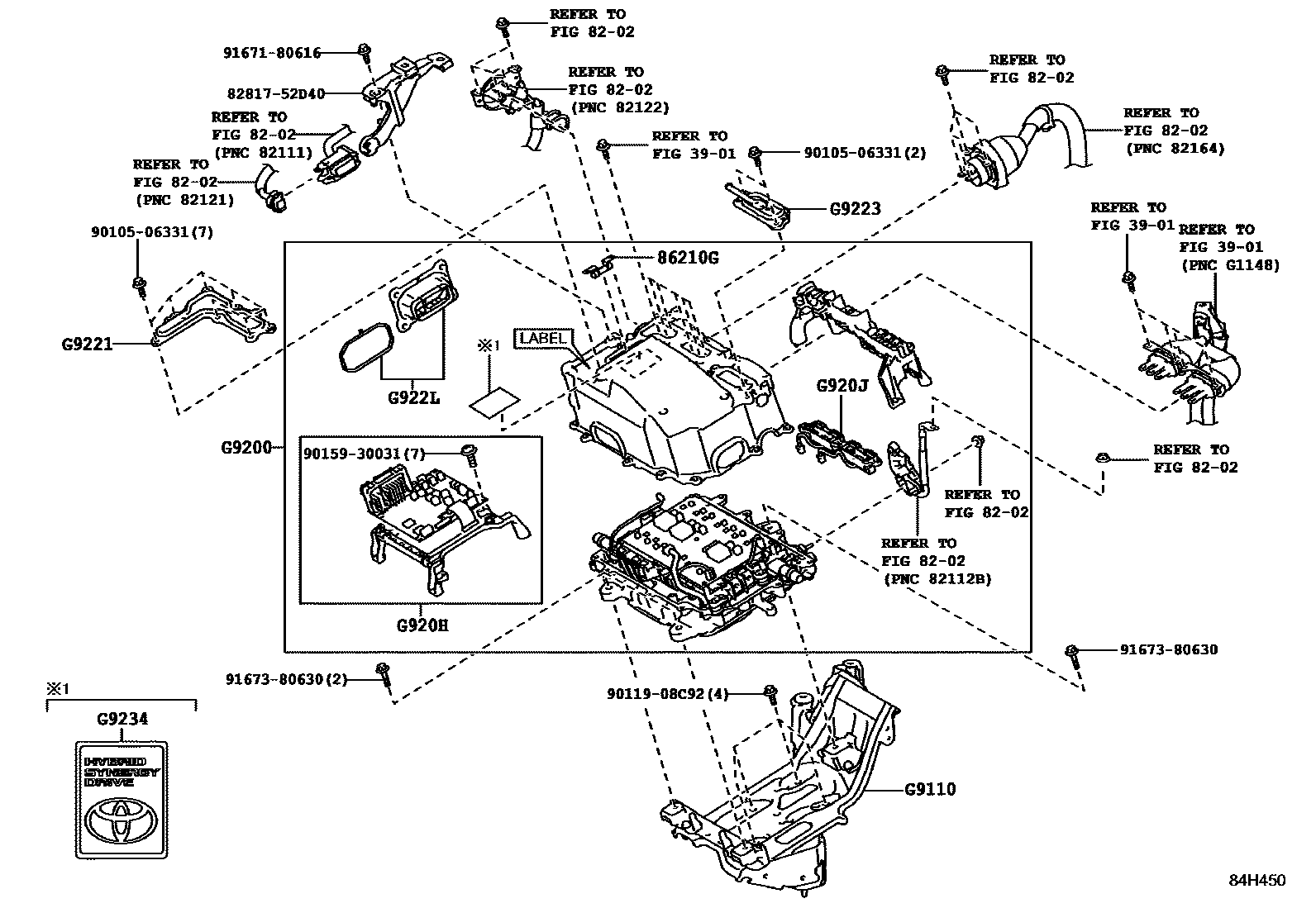

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1

3901

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iNHP10201112-201412

G9110BRACKET ASSY, INVERTER

mainG911052010iNHP10201112-201412

G9200INVERTER ASSY, W/CONVERTER

mainG920059015iNHP10201212-201411

mainG920059035iNHP10201412-201607

P/N LABEL=G920052011

mainG920059046iNHP10201612-201706

mainG920059047iNHP10201706

subG9200-59086

mainG920059065iNHP10201605-201607

P/N LABEL=G920052060

mainG92A052020iNHP10201112-201212

mainG920059025iNHP10..RHD..GEN201312-201411

HONG KONG SPEC

mainG920059045iNHP10..RHD..GEN201607-201611

HONG KONG SPEC

mainG920059075iNHP10..RHD..GEN201605-201607

HONG KONG SPEC,P/N LABEL=G920052070

subG9200-59086

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H52020iNHP10201112-201412

subG920H-52H00

mainG920H52031iNHP10201612-201706

*465

mainG920H52032iNHP10201706

subG920H-52H01

mainG920H52050iNHP10201605-201612

*459

mainG920H52060iNHP10201612-201706

*461

subG920H-52043

mainG920H52030iNHP10..RHD..GEN201312-201412

HONG KONG SPEC

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iNHP10201112-201412

G9221COVER, INVERTER

mainG922152010iNHP10201706

G9223COVER, INVERTER TERMINAL

mainG922352010iNHP10201112-201412

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iNHP10201112-201412

G9234PLATE, INVERTER NAME

mainG923F52010iNHP10201112-201412

8281752D40PROTECTOR, WIRING HARNESS, NO.1

main82817-52D40

9010506331

main90105-06331

9011908C92

main90119-08C92

9015930031

main90159-30031

9167180616

main91671-80616

9167380630

main91673-80630

17 parts on this diagram · 3 diagrams in section
