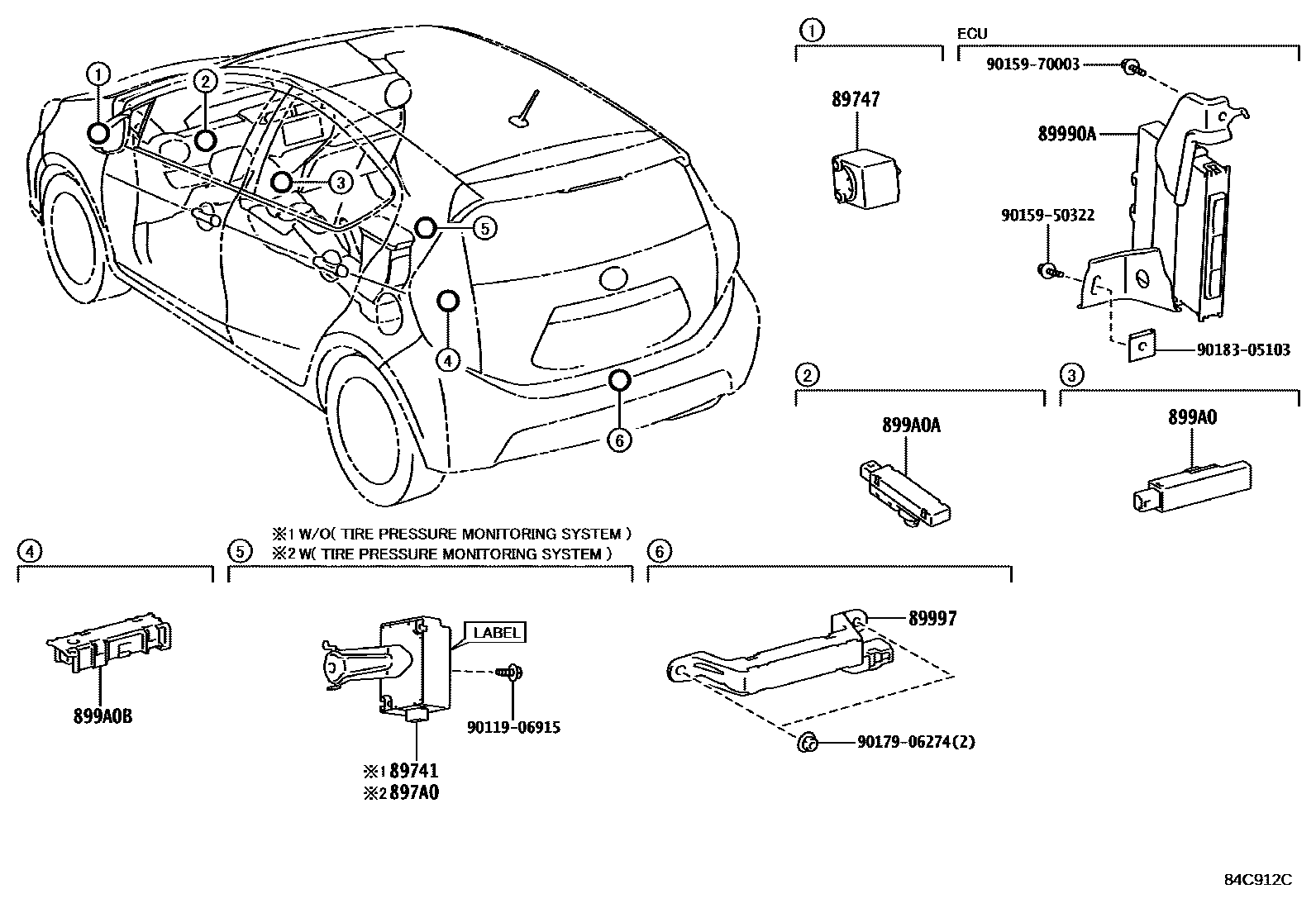

WIRELESS DOOR LOCK

0001 1 0002 1

89741RECEIVER, DOOR CONTROL

main89740-52070iNHP10..GEN201112-201412

main89740-52071iNHP10..GEN201706

main89740-52230iNHP10..ARL; NHP10..LHD; NHP10..RHD..GEN201112-201412

BELIZE SPEC; INDONESIA SPEC; TAIWAN SPEC

main89740-52231iNHP10..ARL; NHP10..LHD201707

BELIZE SPEC

main89740-52280iNHP10..RHD..GEN201706-201907

HONG KONG SPEC

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iNHP10201112-201412

897A0RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897B0-52020iNHP10..LHD201511-201706

TAIWAN SPEC

89990ACOMPUTER ASSY, SMART KEY

main89990-52311iNHP10..RHD201112-201311

main89990-52312iNHP10..RHD201312-201412

main89990-52510iNHP10..RHD201412-201706

main89990-52511iNHP10..RHD201706

main89990-52520iNHP10..LHD201511-201706

TAIWAN SPEC

main89990-52521supersedes 89990-52531iNHP10..LHD201706

TAIWAN SPEC

89997ANTENNA, ELECTRICAL KEY

main89997-30070iNHP10201412-201706

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-52120iNHP10201112-201412

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iNHP10201112-201412

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-52070iNHP10201412-201706

9011906915

main90119-06915

9015950322

main90159-50322

9015970003

main90159-70003

9017906274

main90179-06274

9018305103

main90183-05103

13 parts on this diagram · 2 diagrams in section
