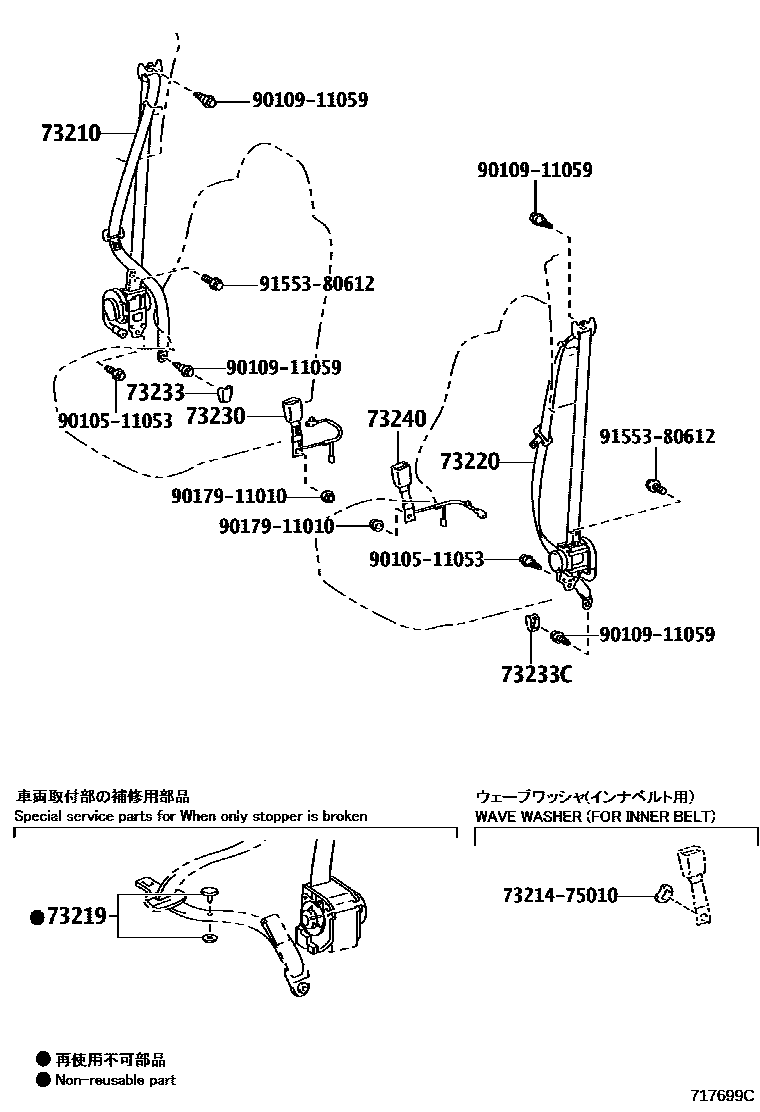

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52810-B0iNHP10201112-201207

BLACK/LT.GRAY,TRIM2#

main73210-52811-B0iNHP10201208-201307

BLACK,TRIM2#

main73210-52813-B0iNHP10201307-201412

BLACK,TRIM2#

main73210-52814-B0iNHP10201503-201706

BLACK,TRIM2#

main73210-52814-C0iNHP10201706

BLACK,TRIM2#,8#

73219STOPPER, TONGUE PLATE

main73219-33010iNHP10201112-201412

BLACK

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52800-B0iNHP10201112-201207

BLACK,TRIM2#

main73220-52801-B0iNHP10201208-201306

BLACK,TRIM2#

main73220-52803-B0iNHP10201307-201412

BLACK,TRIM2#

main73220-52804-B0iNHP10201503-201706

BLACK,TRIM2#

main73220-52804-C0iNHP10201706

BLACK,TRIM2#,8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52891-C0iNHP10..RHD201412-201706

BLACK,TRIM2#

main73230-52A21-C0iNHP10..LHD201412-201706

BLACK,TRIM2#

main73230-52801-C0iNHP10..RHD..GEN201412-201706

FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY,BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0iNHP10201412-201610

BLACK,TRIM2#

main73233-60020-C1iNHP10201610-201706

BLACK,TRIM2#

73233CCOVER, LAP BELT OUTER ANCHOR, LH

main73233-60020-C0iNHP10201112-201412

BLACK,TRIM2#

main73233-60020-C1iNHP10201610-201706

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52A31-C0iNHP10..LHD201706

BLACK,TRIM2#,8#

main73230-52A51-C0iNHP10..RHD201412-201706

BLACK,TRIM2#

main73230-52A80-C0supersedes 73230-52A31-C0iNHP10..LHD201412-201706

FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY,BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511053

main90105-11053

9010911059

main90109-11059

9017911010

main90179-11010

9155380612

main91553-80612

12 parts on this diagram · 2 diagrams in section
