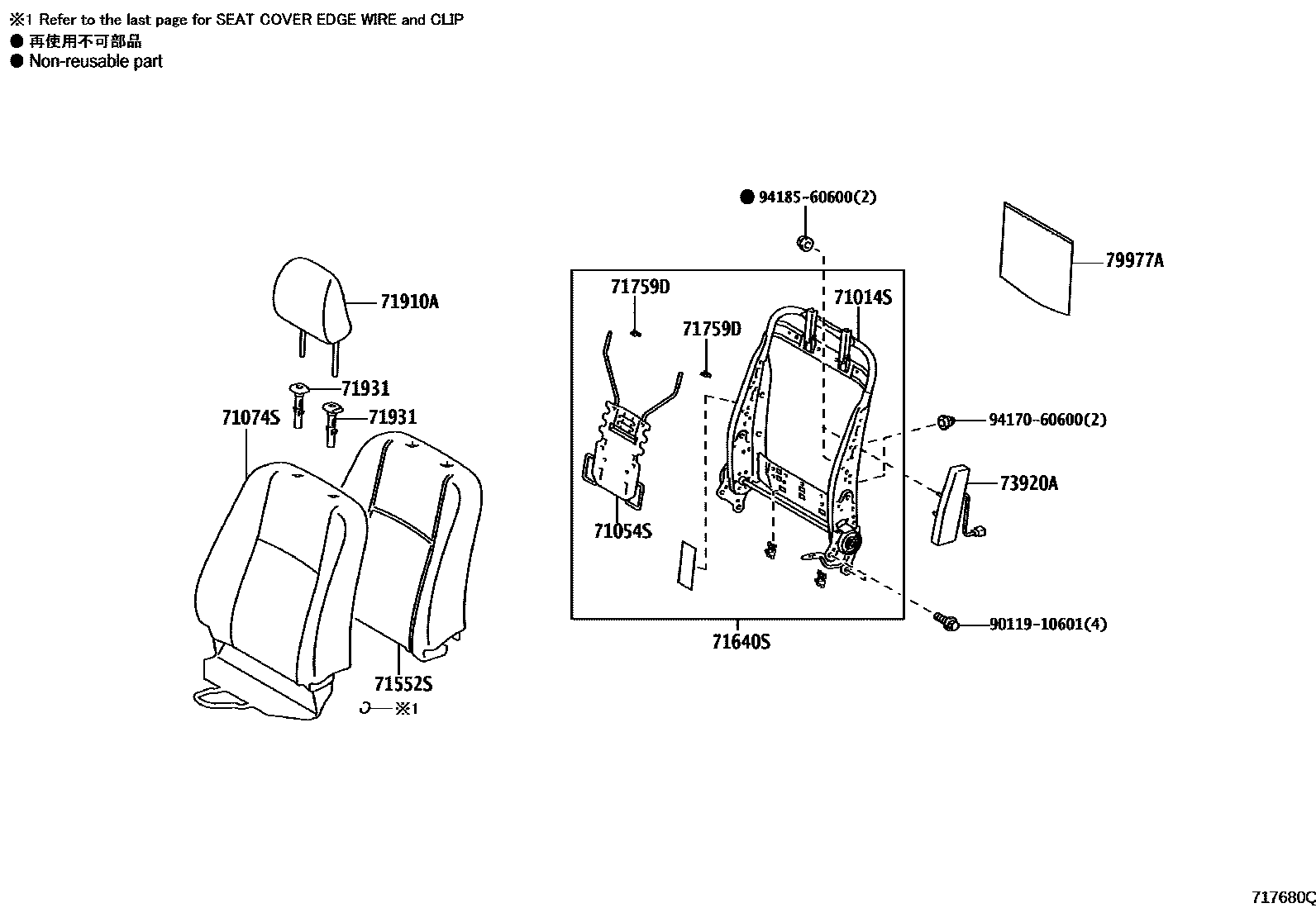

FRONT SEAT & SEAT TRACK

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-52240i201112-201412

main71014-52241i201502-201706

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-52050i201112-201412

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-5C530-B0i201706-202008

DK.GRAY,TRIM2#,8#

main71074-5C530-C0i202008-202106

BLACK,TRIM8#

main71074-5C540-B0i201706-202008

DK.GRAY,TRIM2#,8#

main71074-5C540-C0i202008-202106

BLACK,TRIM8#

main71074-52K80-C1supersedes 71074-52W00-B0i201112-201311

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-52K81-C1supersedes 71074-52W00-B0i201312-201411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-52K81-C2supersedes 71074-52W00-B0i201411-201412

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-52K90-C1supersedes 71074-52W10-B0i201112-201311

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-52K91-C1supersedes 71074-52W10-B0i201312-201411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-52K91-C2supersedes 71074-52W10-B0i201411-201412

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-52W50-B0i201412-201706

FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY&SEAT COVER MATERIAL-FABRIC(BASEGRADE),LT.BLUE GRAY,TRIM2#

main71074-52Y50-C0supersedes 71074-52W00-B0i201412-201706

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-52Y60-C0supersedes 71074-52W10-B0i201412-201706

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-5C640-C0i201706-202008

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-5C640-C1i202008-202106

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-5C650-C0i201706-202008

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-5C650-C1i202008-202106

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-52850i201112-201412

main71552-52B80i201412-201706

main71552-52B70i201412-201706

FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY&SEAT COVER MATERIAL-FABRIC(BASEGRADE)

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-52330i201112-201412

main71640-52331i201502-201706

main71640-52340i201412-201501

FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY&SEAT COVER MATERIAL-FABRIC(BASEGRADE)

main71640-52341i201502-201706

FRONT SEAT-DRIVER SEAT-4WAY & PASSENGER SEAT-4WAY&SEAT COVER MATERIAL-FABRIC(BASEGRADE)

71759DHOOK, FRONT SEATBACK, NO.2

main71759-47010×4i201412-201706

71910AHEADREST ASSY, FRONT SEAT

main71910-52E20-B2×2i201706-202008

DK.GRAY,TRIM2#,8#

main71910-52E20-C0×2i202008-202106

BLACK,TRIM8#

main71910-52D90-C0×2supersedes 71910-52E20-B2i201112-201311

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71910-52D91-C0×2supersedes 71910-52E20-B2i201312-201410

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71910-52D91-C2×2supersedes 71910-52E20-B2i201412-201706

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71910-52N10-C0×2i201706-202008

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71910-52N10-C2×2i202008-202106

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-C0×2i201412-201706

W(LOCK),BLACK,TRIM2#

main71930-47020-C4×2i201710-202106

W(LOCK),BLACK,TRIM2#,8#

main71931-47020-C0×2i201412-201706

W/O(LOCK),BLACK,TRIM2#

main71931-47020-C4×2i201710-202106

W/O(LOCK),BLACK,TRIM2#,8#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-52220i201112-201412

79977AFELT, SEATBACK

main79977-52120×2i201112-201412

9011910601

main90119-10601

9417060600

main94170-60600

9418560600

main94185-60600

13 parts on this diagram · 17 diagrams in section
