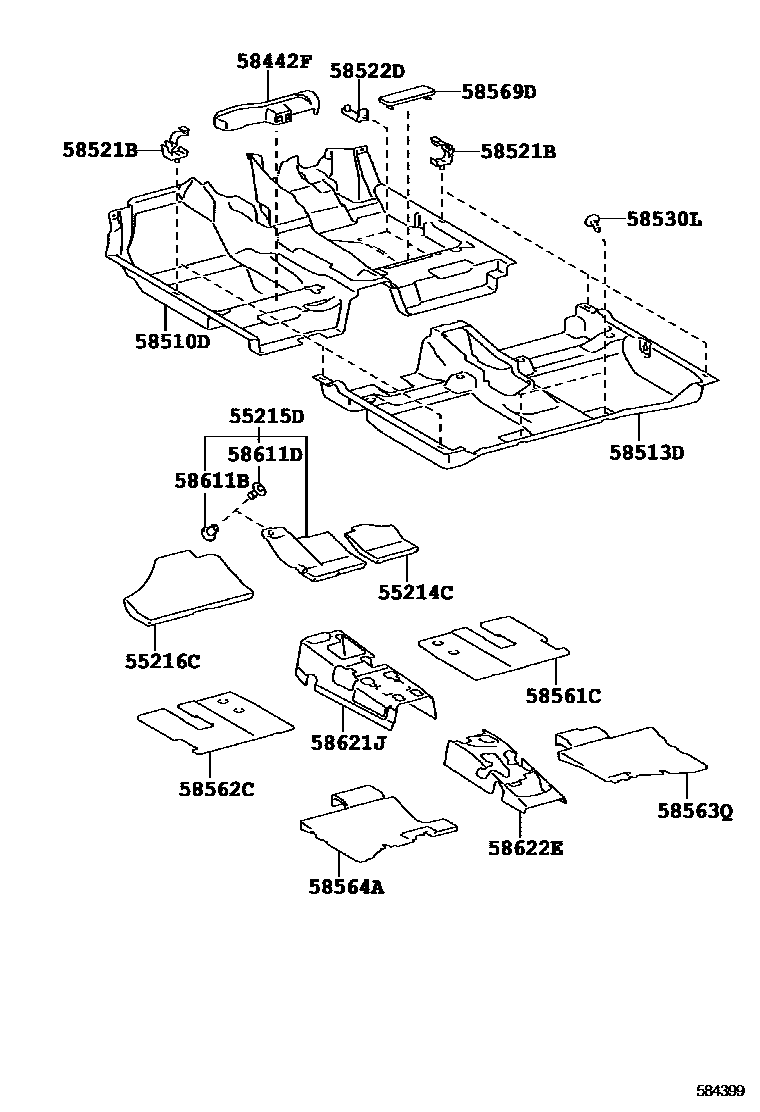

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
55216CPAD, DASH PANEL INSULATOR, NO.4
58442FCOVER, JACK
58510DCARPET ASSY, FLOOR, FRONT
DK.GREY/BLACK,TRIM2#
DK.GREY/BLACK,TRIM2#
58513DCARPET, FLOOR, FRONT CENTER
DK. GREY,TRIM2#
DK. GREY,TRIM2#,8#
58521BHOOK, FLOOR CARPET
58522DHOOK, FLOOR CARPET, NO.2
58530LCLIP, FLOOR CARPET, CENTER
BLACK,TRIM2#,8#
BLACK,TRIM2#
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58564ASILENCER, FRONT FLOOR, NO.4
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#
BLACK,TRIM2#
58611BPLATE, MAT SET, NO.1
58611DPLATE, MAT SET, NO.1 B
58621JSILENCER, CENTER CONSOLE, NO.1
58622ESILENCER, CENTER CONSOLE, NO.2
18 parts on this diagram · 2 diagrams in section
