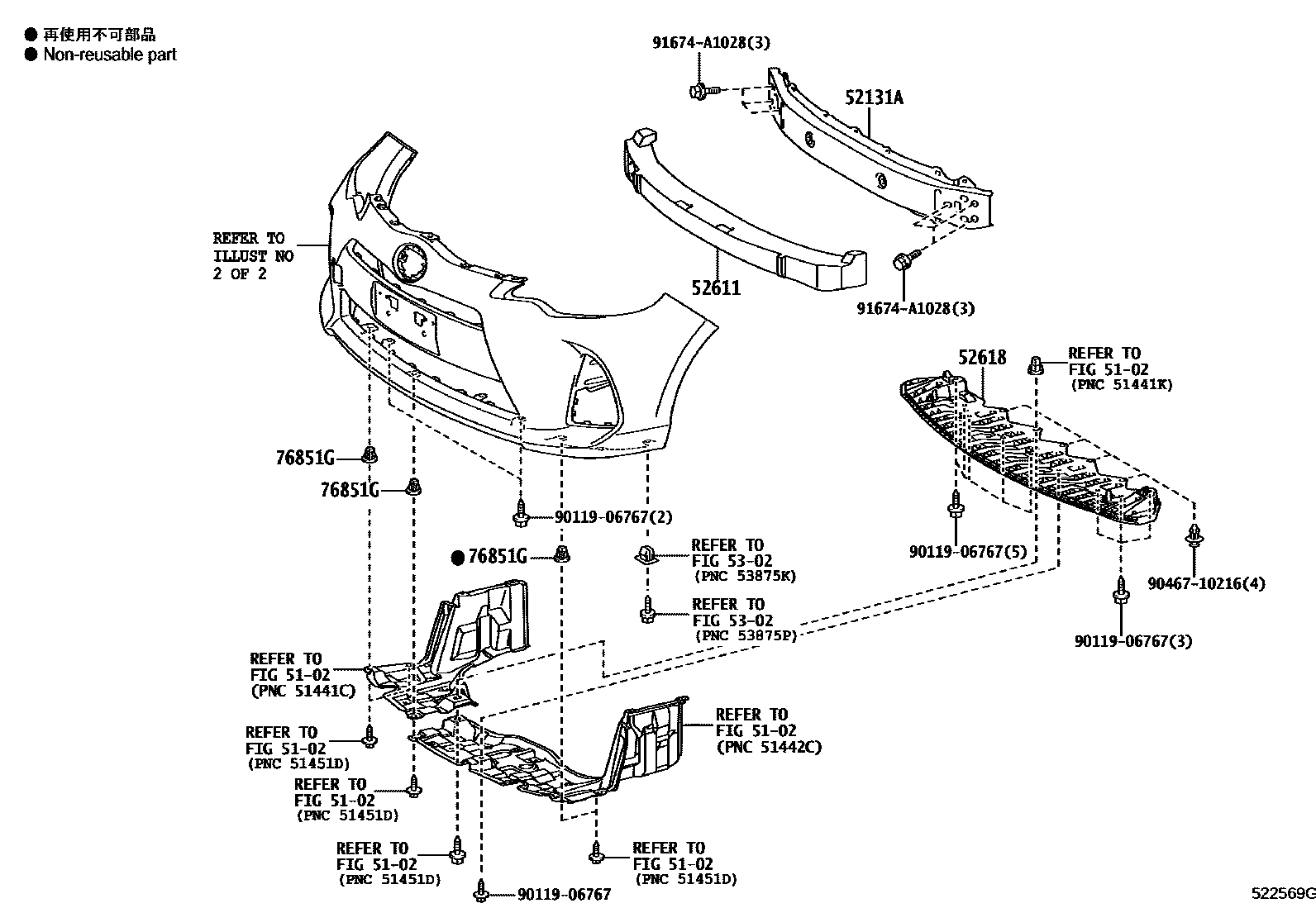

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1TAIWAN SPEC & CROSS PACKAGE 0008 1TAIWAN SPEC & CROSS PACKAGE

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNHP10201112-201412

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52150iNHP10201112-201412

main52611-52260iNHP10201706-201803

main52611-52340iNHP10201804

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52050iNHP10201112-201412

main52618-52110iNHP10201706

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

76851GGROMMET, SCREW, NO.1

main90189-06237×3iNHP10201112-201412

9011906767

main90119-06767

9046710216

main90467-10216

91674A1028

main91674-A1028

9 parts on this diagram · 8 diagrams in section
