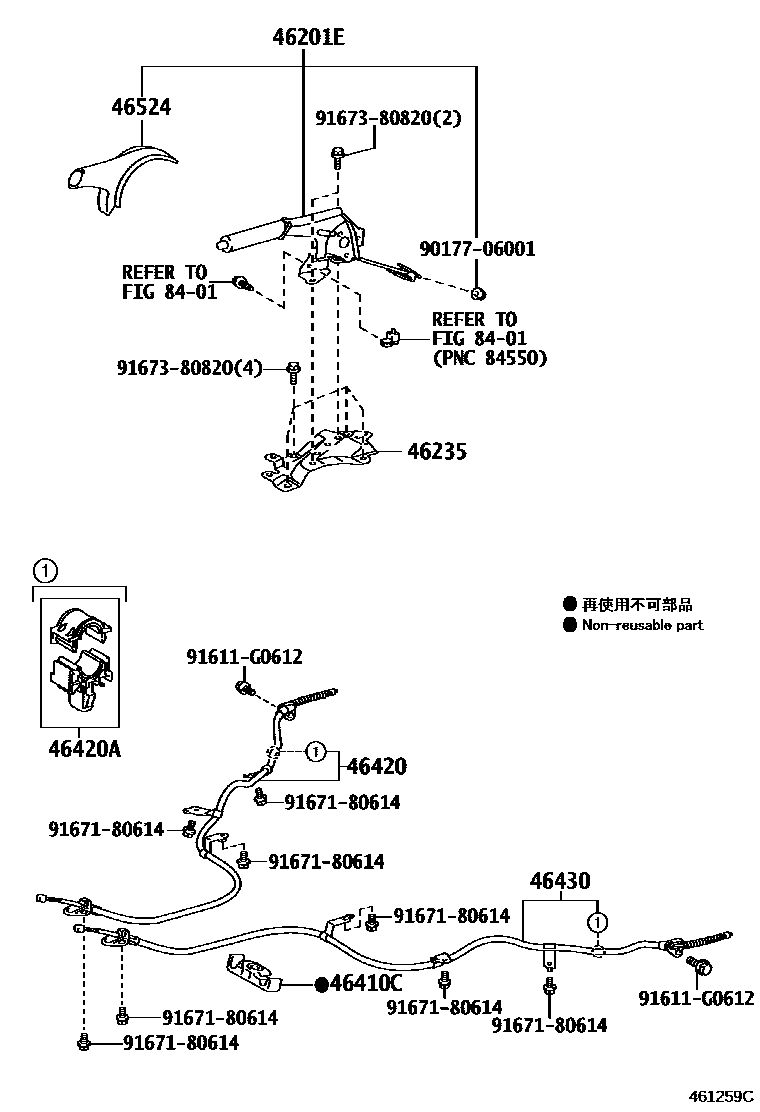

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52140-C0iNHP10201412-201706

BLACK,TRIM2#

main46201-52130-C0iNHP10..GEN201412-201706

DECONTENT PACKAGE(FOR GENERAL COUNTRY),BLACK,TRIM2#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-52040iNHP10201112-201412

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030iNHP10201112-201412

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52290iNHP10201706

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-52030×2iNHP10201112-201412

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52400iNHP10201112-201412

46524COVER, PARKING BRAKE DUST

main46524-52050-C0iNHP10201112-201412

BLACK,TRIM2#

main46524-52051-C0iNHP10201504-201706

BLACK,TRIM2#

main46524-52052-C0iNHP10201802

BLACK,TRIM2#,8#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017706001

main90177-06001

91611G0612

main91611-G0612

9167180614

main91671-80614

9167380820

main91673-80820

12 parts on this diagram · 1 diagram in section
