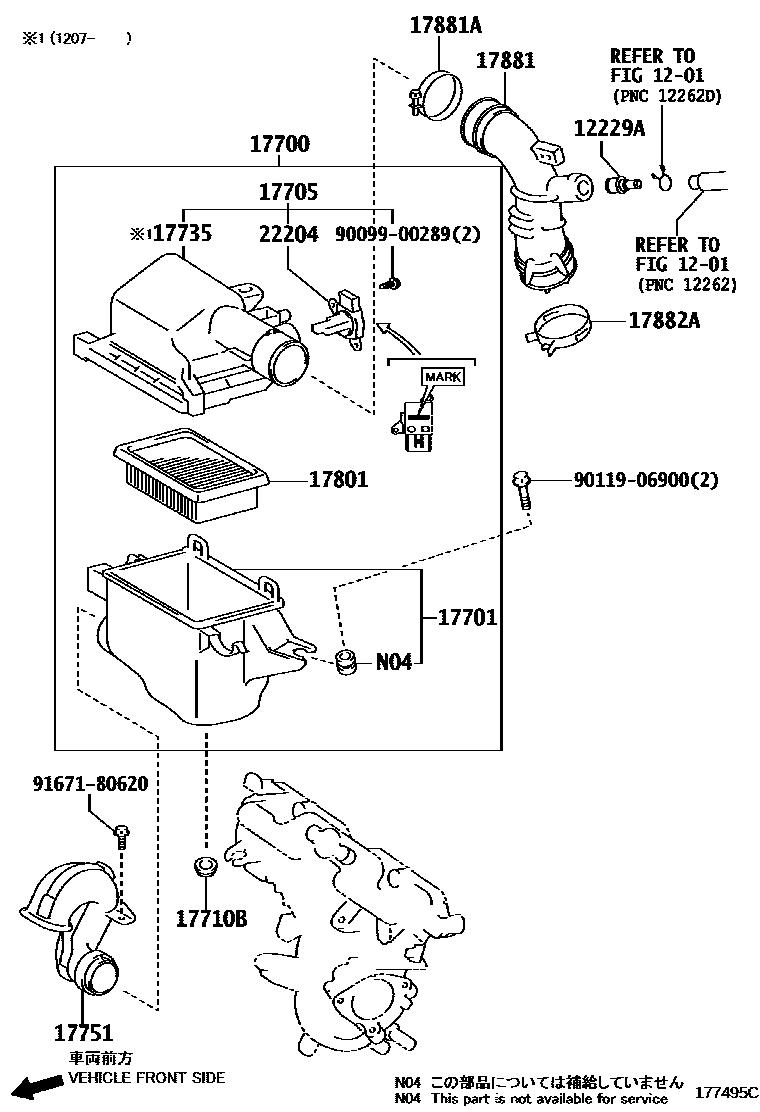

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

12229APIPE, VENTILATION

main12229-33010i1NZFXE..NHP10201412-201706

17700CLEANER ASSY, AIR

main17700-21200i1NZFXE..NHP10201112-201412

17701CASE SUB-ASSY, AIR CLEANER

main17701-21140i1NZFXE..NHP10201112-201412

17705CAP SUB-ASSY, AIR CLEANER

main17705-21170i1NZFXE..NHP10201112-201412

17710BGROMMET

main90480-15036i1NZFXE..NHP10201112-201412

17735CAP, AIR CLEANER

main17735-21070i1NZFXE..NHP10201207-201412

17751INLET, AIR CLEANER, NO.1

main17751-21220i1NZFXE..NHP10201112-201412

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21060i1NZFXE..NHP10201412-201706

17881HOSE, AIR CLEANER, NO.1

main17881-21130i1NZFXE..NHP10201412-201706

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10600i1NZFXE..NHP10201112-201412

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-54002i1NZFXE..NHP10201112-201412

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1NZFXE..NHP10201706

MARK 22204-0T040

main22204-0V010i1NZFXE..NHP10201112-201412

MARK 22204-0V010

main22204-0V020i1NZFXE..NHP10201412-201706

MARK 22204-0V020

main22204-28010i1NZFXE..NHP10201412-201706

MARK 22204-28010

9009900289

main90099-00289

9011906900

main90119-06900

9167180620

main91671-80620

16 parts on this diagram · 1 diagram in section
