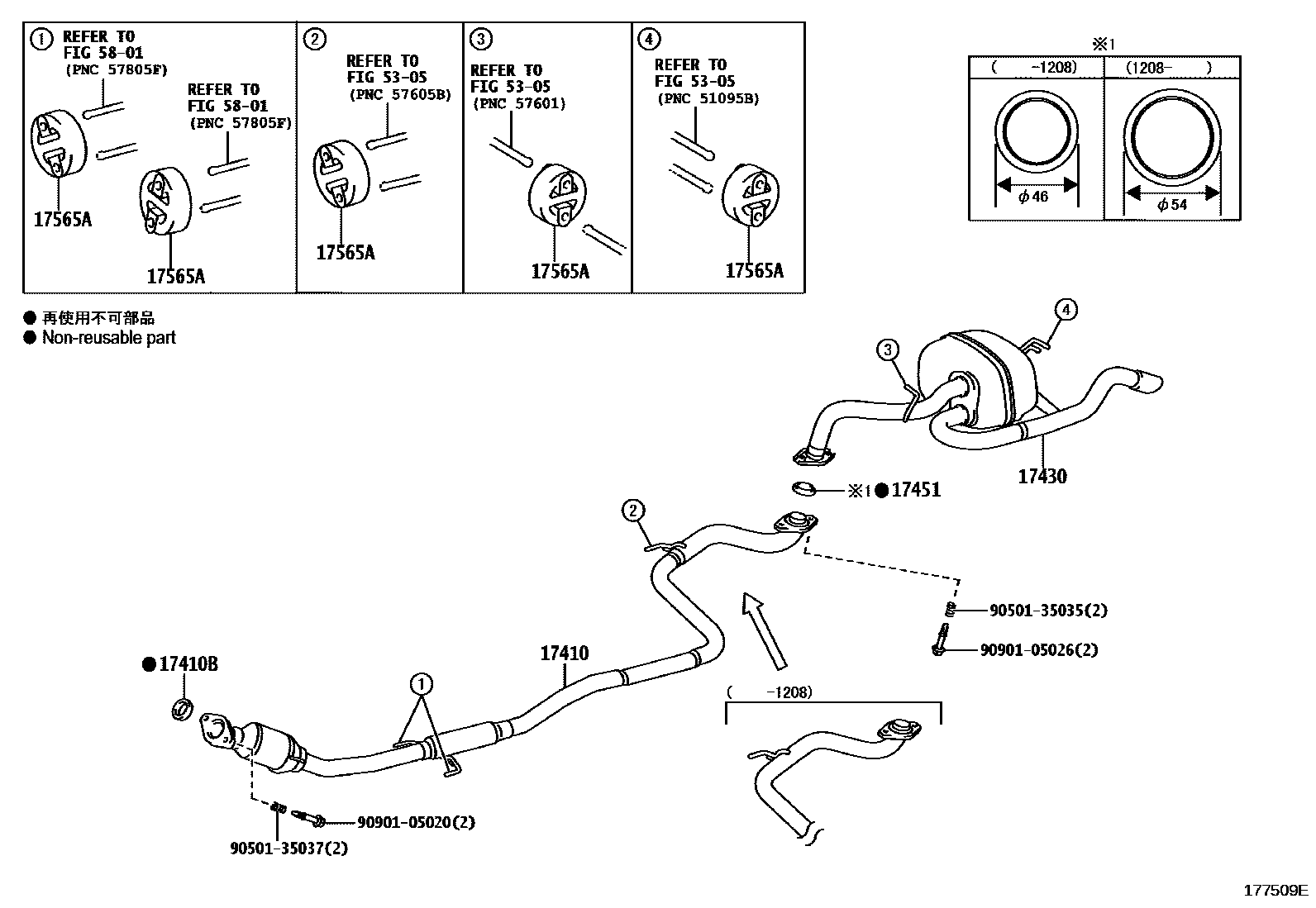

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21C50i1NZFXE..NHP10201112-201208

main17410-21C51i1NZFXE..NHP10201706

main17410-21C41i1NZFXE..NHP10..RHD..GEN201412-201706

HONG KONG SPEC

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFXE..NHP10201112-201412

17430PIPE ASSY, EXHAUST, TAIL

main17430-21870i1NZFXE..NHP10201112-201208

main17430-21871i1NZFXE..NHP10201208-201311

main17430-21872i1NZFXE..NHP10201706

17451GASKET, EXHAUST PIPE

main17451-23042i1NZFXE..NHP10201208-201412

main17451-40032i1NZFXE..NHP10201112-201208

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-47010×5i1NZFXE..NHP10201112-201412

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

11 parts on this diagram · 1 diagram in section
