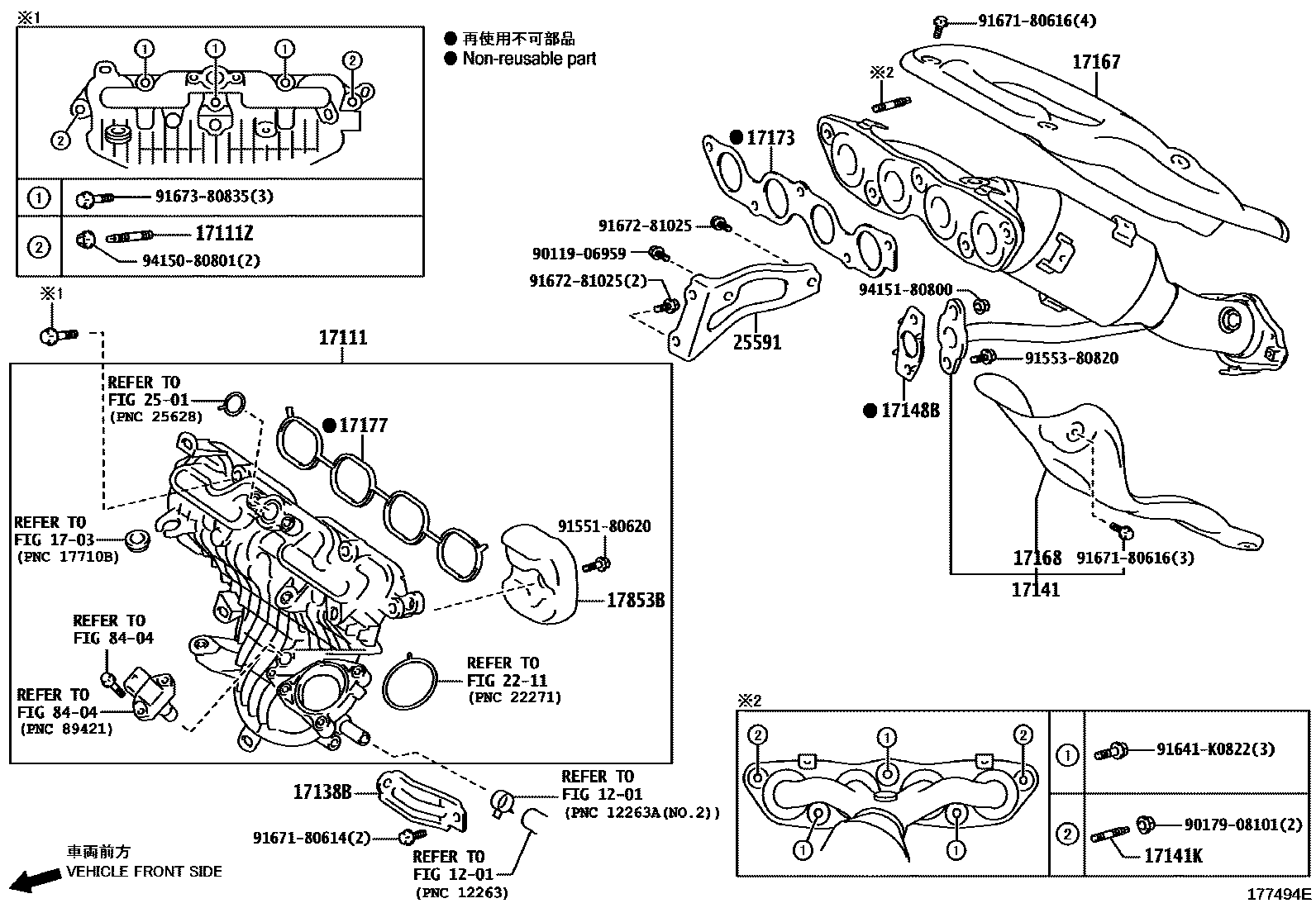

MANIFOLD

1201VENTILATION HOSE

→ Go to FIG 12-01

1703AIR CLEANER

→ Go to FIG 17-03

17111MANIFOLD, INTAKE

main17120-21060i1NZFXE..NHP10201412-201706

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1NZFXE..NHP10201112-201412

17138BSTAY, INTAKE MANIFOLD

main17138-21020i1NZFXE..NHP10201112-201412

17141MANIFOLD, EXHAUST

main17140-21110i1NZFXE..NHP10201412-201706

*114=TOYOTA/21110/Y

main17140-21080i1NZFXE..NHP10..RHD..GEN201312-201412

HONG KONG SPEC

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037×2i1NZFXE..NHP10201412-201706

17148BGASKET, EGR INLET

main25634-21020i1NZFXE..NHP10201112-201412

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21170i1NZFXE..NHP10201412-201505

main17167-21171i1NZFXE..NHP10201506-201706

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-21060i1NZFXE..NHP10201112-201406

main17168-21061i1NZFXE..NHP10201407-201412

main17168-21090i1NZFXE..NHP10201703-201706

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZFXE..NHP10201112-201412

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21040i1NZFXE..NHP10201112-201412

17853BINSULATOR, INTAKE MANIFOLD

main17853-21010i1NZFXE..NHP10201112-201412

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25591BRACKET, MANIFOLD SUPPORT

main25591-21070i1NZFXE..NHP10201112-201412

main25591-21100i1NZFXE..NHP10201701-201706

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906959

main90119-06959

9017908101

main90179-08101

9155180620

main91551-80620

9155380820

main91553-80820

91641K0822

main91641-K0822

9167180614

main91671-80614

9167180616

main91671-80616

9167281025

main91672-81025

9167380835

main91673-80835

9415080801

main94150-80801

9415180800

main94151-80800

28 parts on this diagram · 1 diagram in section
