HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

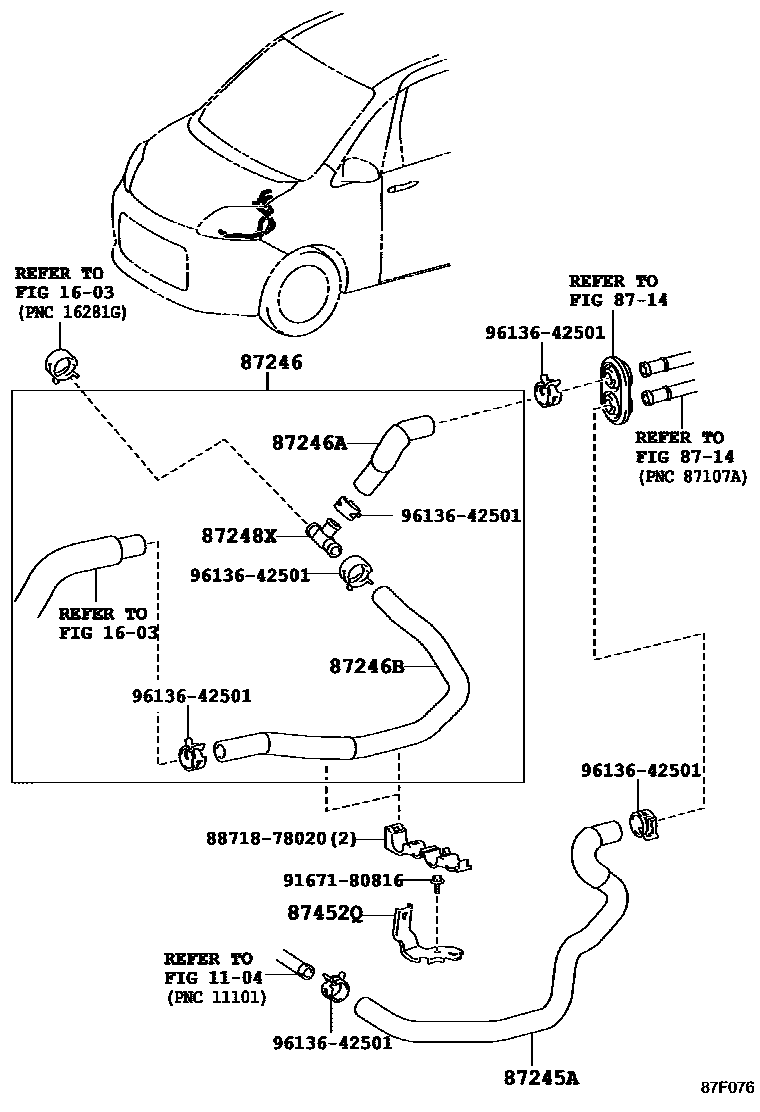

87245AHOSE, HEATER WATER, INLET A

main87245-52300iNSP141201507

87246HOSE, HEATER WATER, OUTLET

main87209-52360iNSP141201507

87246AHOSE, HEATER WATER, OUTLET A

main87245-52330iNSP141201507

87246BHOSE, HEATER WATER, OUTLET B

main87245-52360iNSP141201507

87248XPIPE, HEATER WATER

main87248-26880iNSP141201507

87452QBRACKET, HEATER, NO.1

main87121-52070iNSP141201507

8871878020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-78020

9167180816

main91671-80816

9613642501

main96136-42501

12 parts on this diagram · 1 diagram in section
