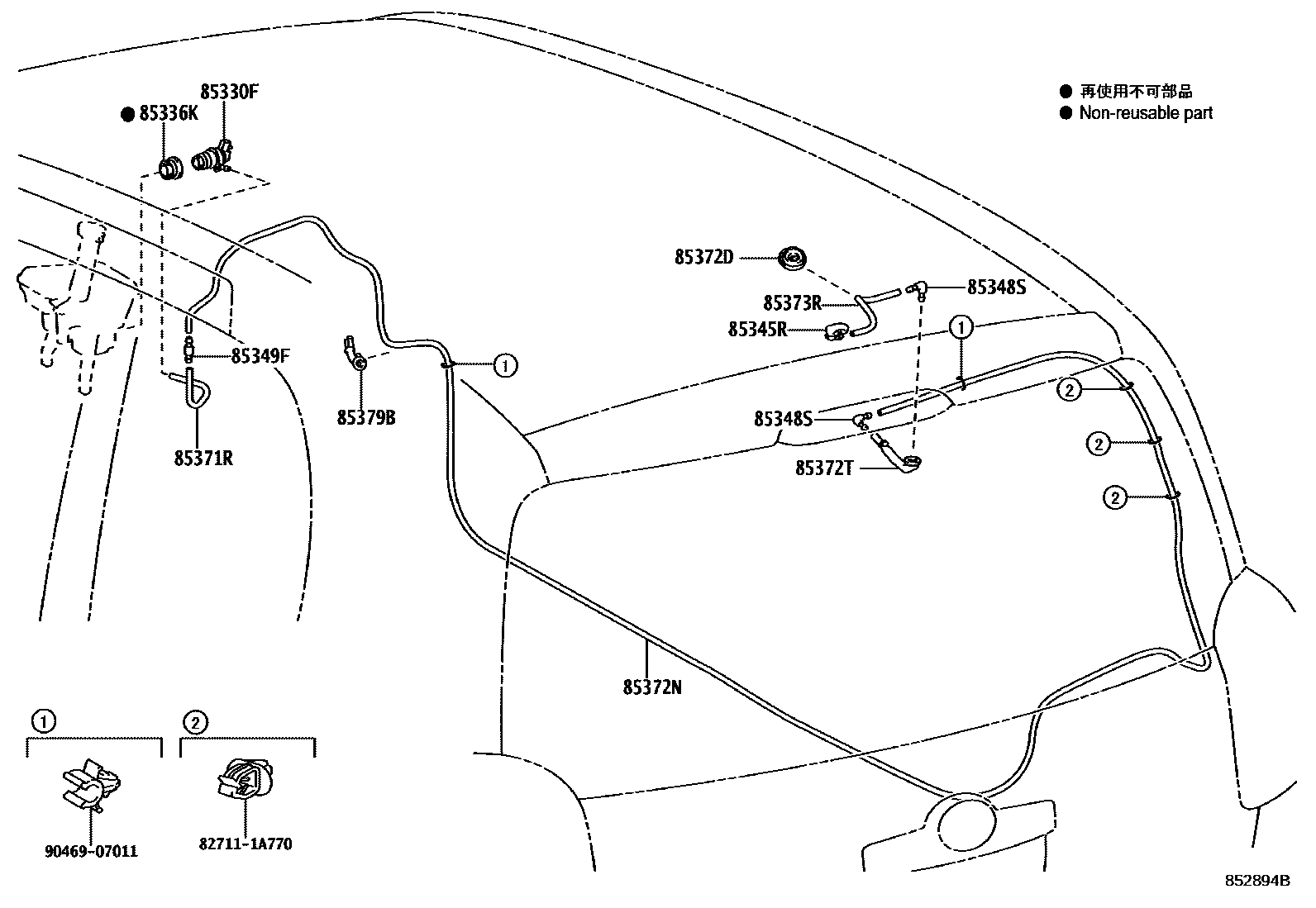

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNSP141201507

85336KPROTECTOR, WASHER JAR

main85336-60300iNSP141201507

85345RNOZZLE, REAR WASHER

main85391-52180iNSP141201507

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200×2iNSP141201507

85349FJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNSP141201507

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNSP141201507

L=1450(*H,L=100)

85372DGROMMET, REAR WASHER HOSE

main85372-20020iNSP141201507

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-59369iNSP141201507

L=5093

85372TGROMMET, WASHER

main85372-20040iNSP141201507

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNSP141201507

L=1450(*H,L=230)

85379BGROMMET, WASHER, A

main85379-52530iNSP141201507

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9046907011

main90469-07011

13 parts on this diagram · 1 diagram in section
