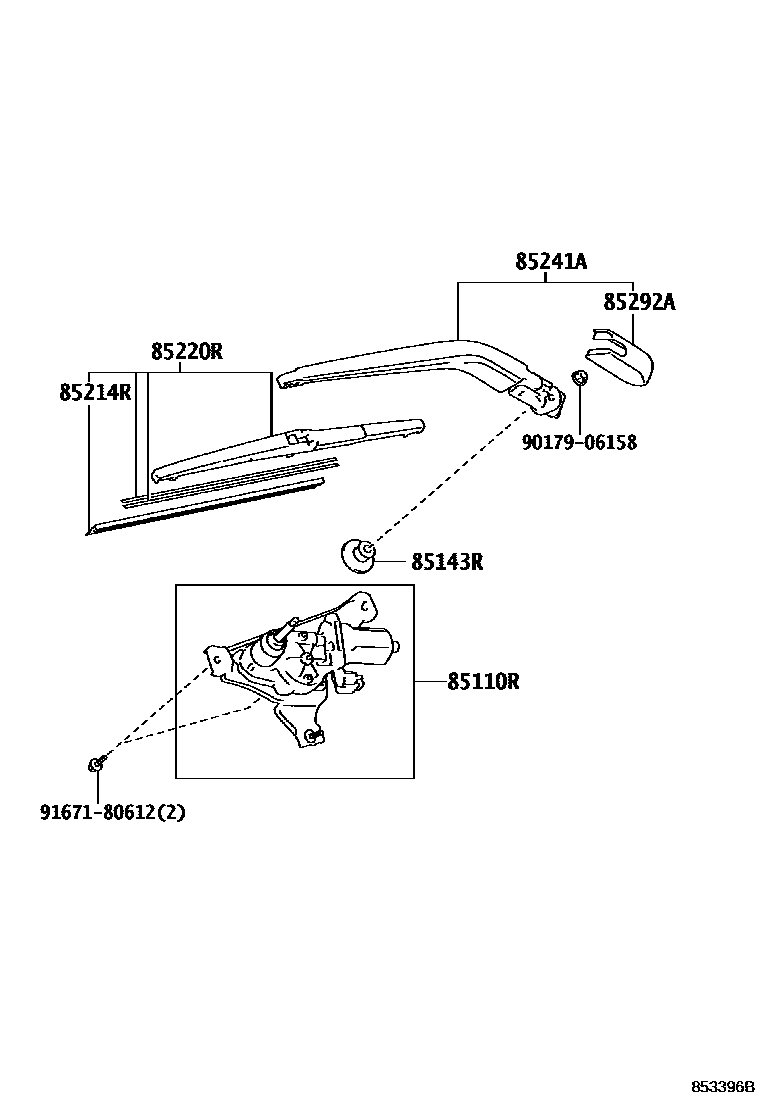

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-52250iNSP141201507

85143RGROMMET, REAR WIPER MOTOR

main85143-52020iNSP141201507

85214RRUBBER, REAR WIPER

main85214-30280iNSP141201507

85220RBLADE ASSY, REAR WIPER

main85242-52100iNSP141201507

85241AARM, REAR WIPER

main85241-52210iNSP141201507

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iNSP141201507

9017906158

main90179-06158

9167180612

main91671-80612

8 parts on this diagram · 1 diagram in section
