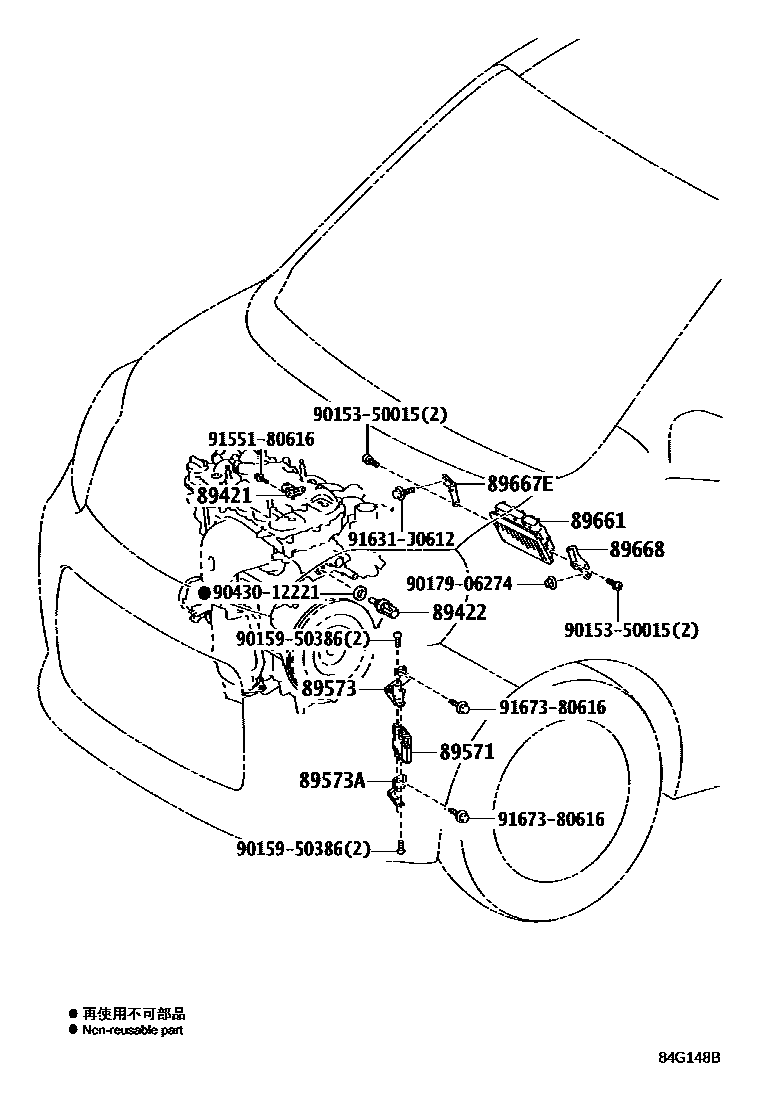

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iNSP141201507

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNSP141201507

89571COMPUTER, FUEL PUMP CONTROL

main89571-34070iNSP141201507

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-52030iNSP141201507

89573ABRACKET, FUEL PUMP CONTROL COMPUTER, NO.2

main89573-52040iNSP141201507

89661COMPUTER, ENGINE CONTROL

main89661-5C630iNSP141201507-201607

main89661-5C850iNSP141201607-201907

main89661-5CB40iNSP141201907

DENSO TEN

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52340iNSP141201507

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52350iNSP141201507

9015350015

main90153-50015

9015950386

main90159-50386

9017906274

main90179-06274

9043012221

main90430-12221

9155180616

main91551-80616

91631J0612

main91631-J0612

9167380616

main91673-80616

15 parts on this diagram · 1 diagram in section
