SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR,ROOF,FLOOR & LUGGAGE

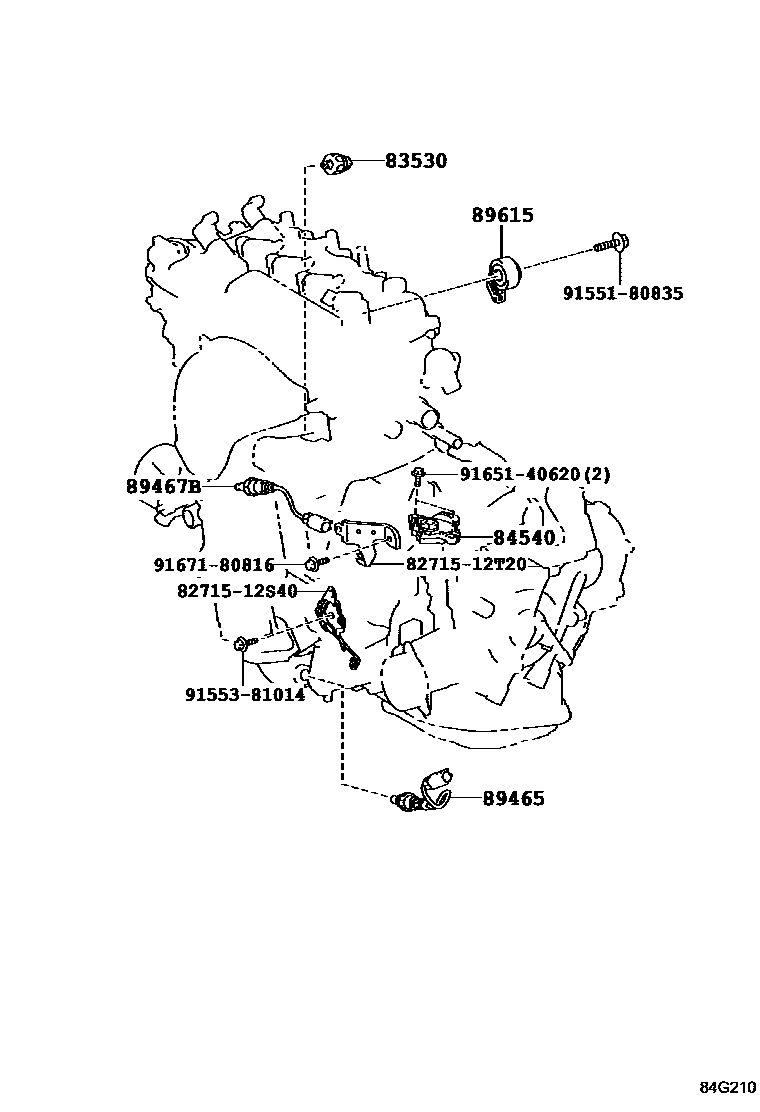

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iNSP141201507

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNSP141201507

89465SENSOR, OXYGEN

main89465-52740iNSP141201507

89467BSENSOR, AIR FUEL RATIO

main89467-52240iNSP141201507

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP141201507

8271512S40BRACKET,WIRING HARNESS CLAMP

main82715-12S40

8271512T20BRACKET,WIRING HARNESS CLAMP

main82715-12T20

9155180835

main91551-80835

9155381014

main91553-81014

9165140620

main91651-40620

9167180816

main91671-80816

11 parts on this diagram · 7 diagrams in section
