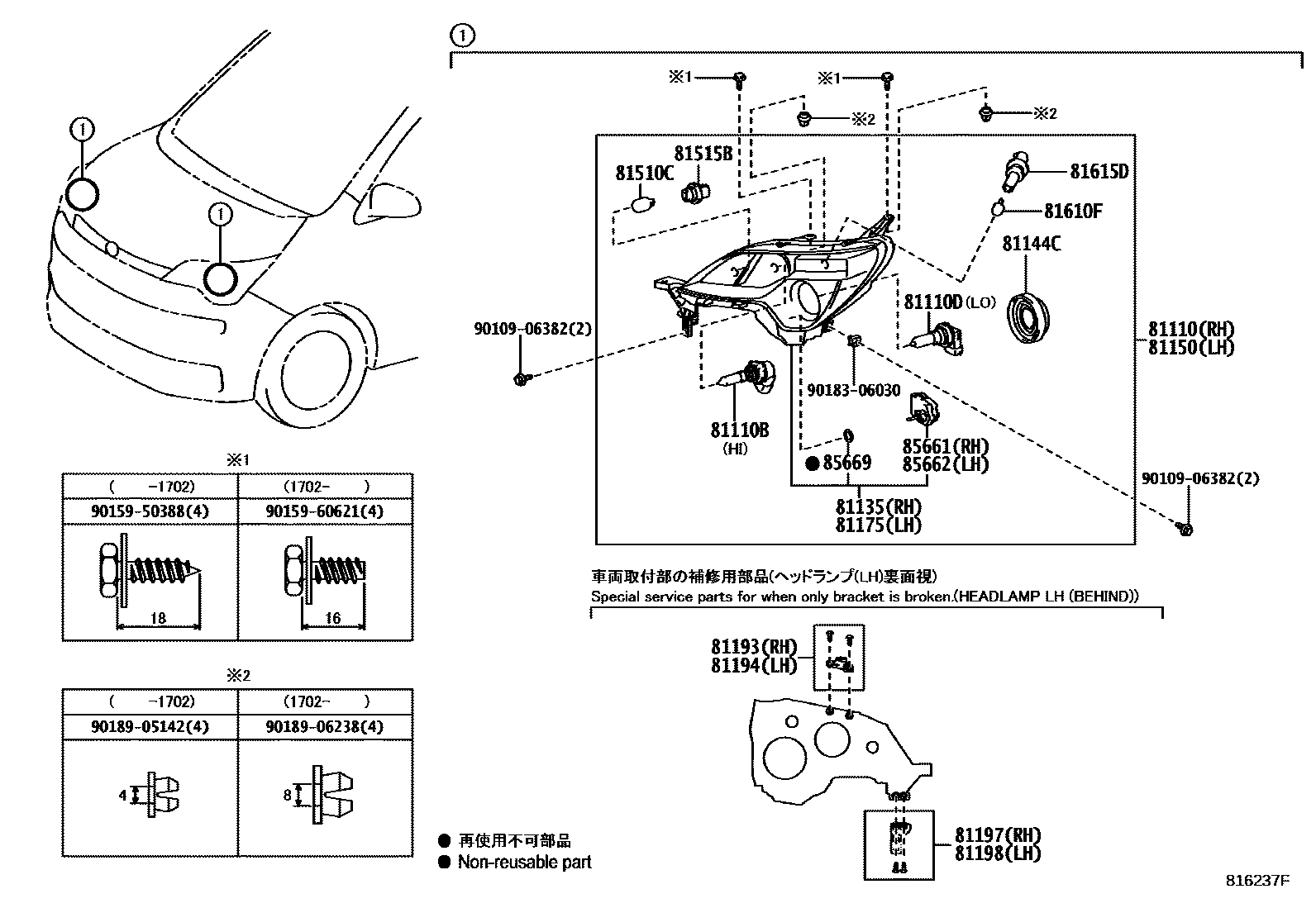

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-52F40iNSP141201507

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iNSP141201507

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13085×2iNSP141201507

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-52F40iNSP141201507

81144CCOVER, HEADLAMP SOCKET

main90075-65006×2iNSP141201507

81150HEADLAMP ASSY, LH

main81150-52F40iNSP141201507

81175UNIT ASSY, HEADLAMP, LH

main81170-52F40iNSP141201507

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52210iNSP141201507

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52210iNSP141201507

81197BRACKET, HEADLAMP, LOWER RH

main81197-52050iNSP141201507

81198BRACKET, HEADLAMP, LWR LH

main81198-52050iNSP141201507

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNSP141201507

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNSP141201507

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNSP141201507

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iNSP141201507

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iNSP141201507

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNSP141201507

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iNSP141201507

9010906382

main90109-06382

9015950388

main90159-50388

9015960621

main90159-60621

9018306030

main90183-06030

9018905142

main90189-05142

9018906238

main90189-06238

24 parts on this diagram · 1 diagram in section
